เครื่องตัดสติ๊กเกอร์ไดคัท (1.3m)----1.3m Vinyl Cutter with Full Auto Contour Cut Function
1300A
Unit cost
THB 21,293.00
/set
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 21,293.00
Options
กรุณาเลือกประเภท กรุณาเลือกประเภท
Total Cost
THB 21,293.00
Amount
/set
1
Features:
·The machine with Multi-mark Automatic Contour Cutting Function.
·The machine can work without PC when use U disk interface.
·High-precision Steel Axes: Guarantee the high precision of shifting
·The machine can repeat the words or images for 0-500 times(Repeat Function)
·Noise less than 60 DB: keep our user away from noise pollution
·Our control panel: 11 membrane buttons and 3.0 LCD touch screen, and our machine have 5 kinds of backlight for select.
·Our professional cutting force,it is easy to draw rigid PVC, card paper and reflective film.
·The machine can cut 2mm words.
·128MB CACHE memory, teneth will not scribble no matter how long or how big is you products.
·Advanced aluminum,mattepainting,excellenttechnology, real luxury model.
Note:The license removed will charge ฿500 for each time.
If you want to remove the license, please take photos in the software (account and password) and send email to [email protected].
As shown in the picture below:
| Model Name | C48A |
| Main board | 32-bit ARM7 CPU,128Mb, High-speed CACHE Memory |
| Function | Automatic contour cutting function with sensor |
| Driver | High speed,big power step motor, micro-step driver |
| Control panel | 9 silicon buttons, 128*64 industrial screen |
| Maximum input width | 1410mm |
| Maximum cutting width | 1250mm |
| Interfaces | USB/ U disk / Serial port USB |
| Plotter instruction | Compatible DM/PL, HP/GL DM/PL, HP/GL |
| Software | Signmaster |
| Cutting force | 10-1000g (digital adjustable) |
| Cutting speed | 900mm/s |
| Maximum cutting thickness | 0.8mm |
| Mechanical precision | 0.025mm |
| Type of plotter pen | All types diameter 11.4 mm plotter pen |
| Powre consumption | <80W |
| Media way | With Floor stand |
| Gross weight | 40kg |
| Package size | 1678x324x380mm |

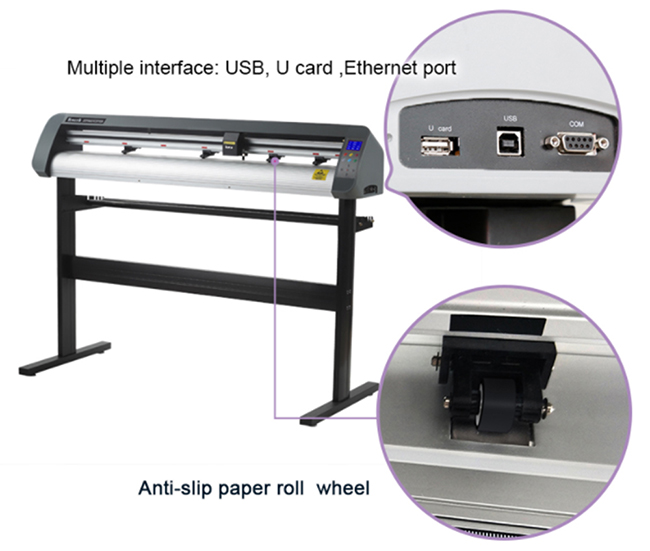

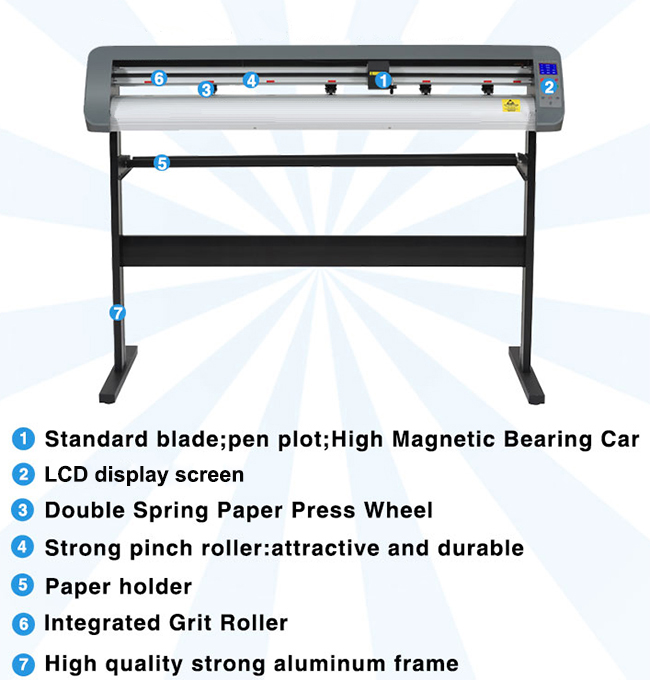

Details:
Appclication:
·For Advertising : PVC/ PU/ PET / vinyl --- get logos, labels, stickers.
·For Garment business: Heat transfer material (with an adhesive backing so it can be cut); PU, Metal film, laser film, fluorescent film, glitter film, foaming font --- use heat press machine to transfer the cut patten to T-shirt or any cloth.
·For Cup, Pillow, shoes, mobile skin pattern making: by using sublimation ink.
·For traffic sign: add high pressure to cut pattern in diamond film
·Applied to Car wrapping fim, windows film.
·Applied to wall sticker, switch sticker.
Function Show:
Process:
Certifiation:
