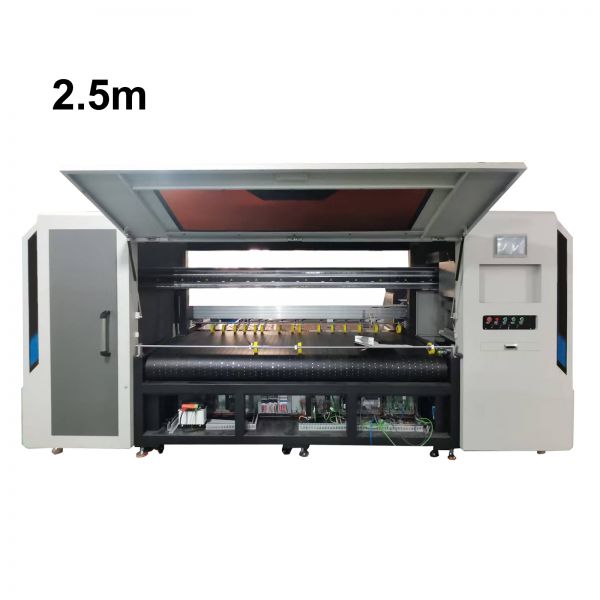

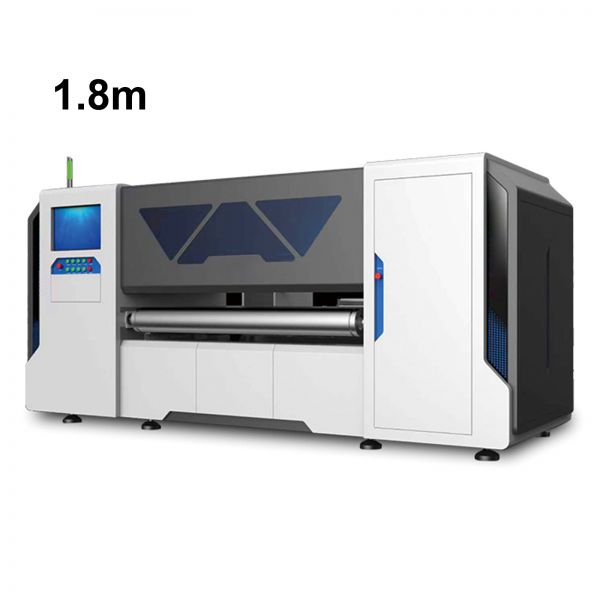

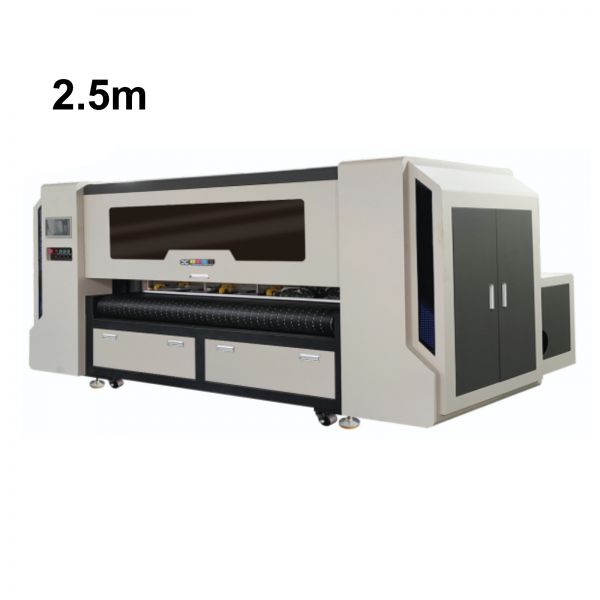

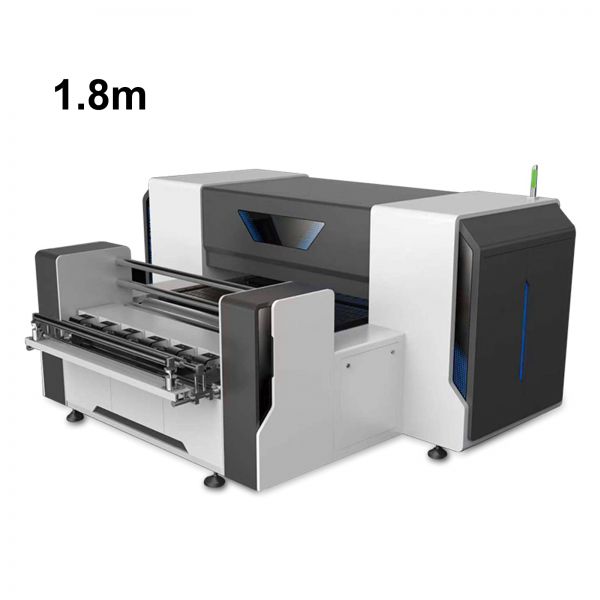

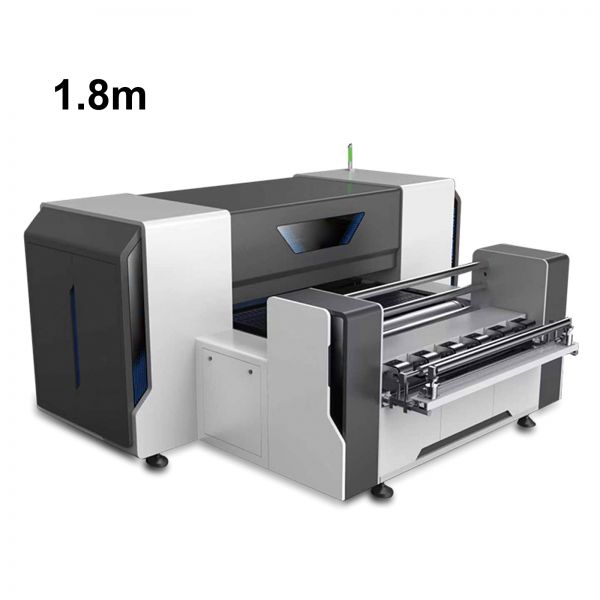

1.8m/2.5m Digital Corrugated Carton Printer with HP A3 Printhead
1800mm
Unit cost
THB 1,307,947.00
/set
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 1,307,947.00
Options
กรุณาเลือกประเภท กรุณาเลือกประเภท
Total Cost
THB 1,307,947.00
Amount
/set
1
Digital Corrugated Carton Printer with 4pcs HP A3 Printhead
Specification:
| Printhead | HP A3 |
| Color Configuration | CMYK |
| Production Mode | One Pass |
| Production Capacity | 1200-2500 m²/h |
| Applicable Materials | Corrugated Paper, Honeycomb Paper, White/Yellow Paperboard |
| Media Requirements | Max. Width: 1800mm/2500 mm; Thickness: 5-30 mm |

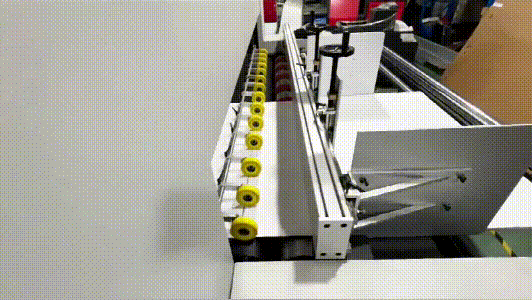

| Feeding Method | Front Edge Feeding, Media Positioning, Vacuum Suction Conveyor, Continuous Operation |
| Drive System | Servo Linear Drive System |
| Drying System | Hot Air Drying System with Infrared Heating (Customizable) |
| Power Requirements | Total Power: 10 KW (AC380V ± 5%, 50 Hz ≥ 20 A); Air Pressure ≥ 6 kg/cm² |
| Working Environment | Humidity: 40-60%; Temperature: 20-30°C |
| Software | RIP |
| File Format | PDF, JPEG, TIFF, CDR, AI, EPS |
| Print Resolution | 600*300 dpi, 600*720 dpi, 1200*300 dpi, 1200*600 dpi |
Application:
