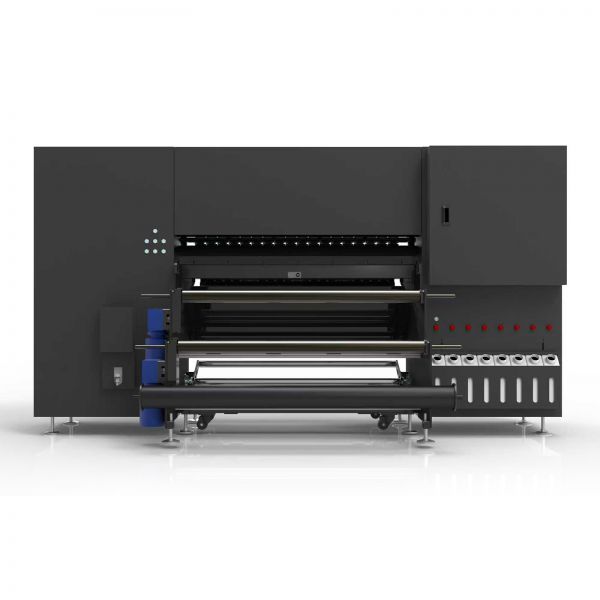

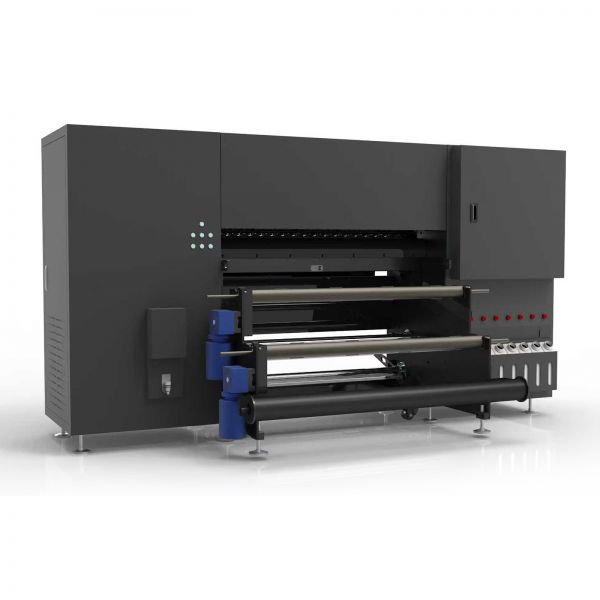

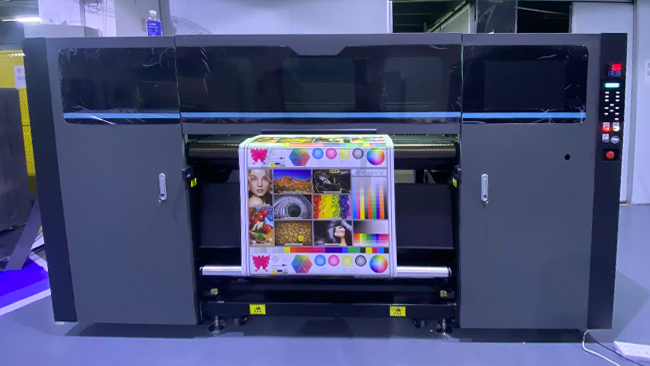

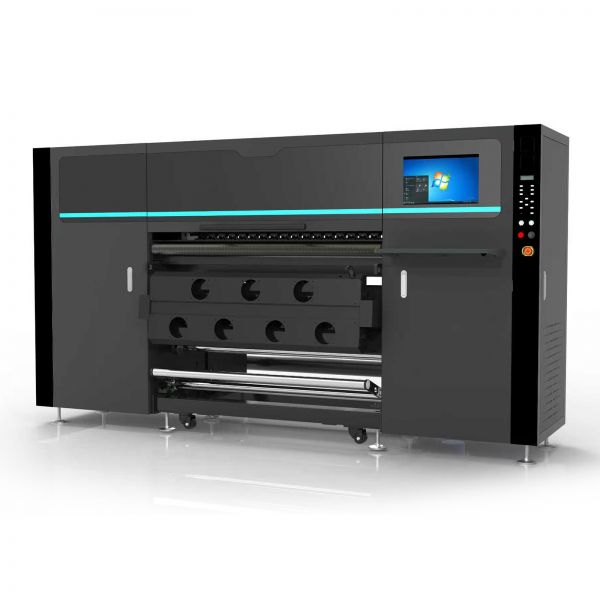

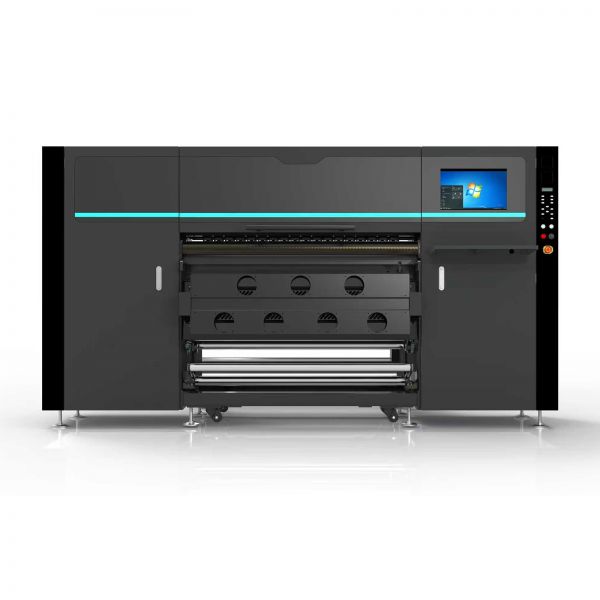

1308 Wide High Speed Digital Printing Machine with 8 Epson i3200A1 Printhead
Unit cost
THB 842,090.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 842,090.00
Total Cost
THB 842,090.00
Amount
/unit
1
| Machine Model | Paper‑E‑1308 |
| Printing Width | 600-1300 mm |
| Printhead Model | Epson 3200 |
| Number of Printheads | 8 pcs |
| Ink Control System | Hoson |
| RIP Software | PF / EFI / RIPrint |
| Ink Type & Color Configuration | Pigment Ink: MYCK / MYCK+LcLmLkLk / MYCK+LcLmLk+R |
| Printing Speed | 4/6/8 pass: 40–60m²/h |

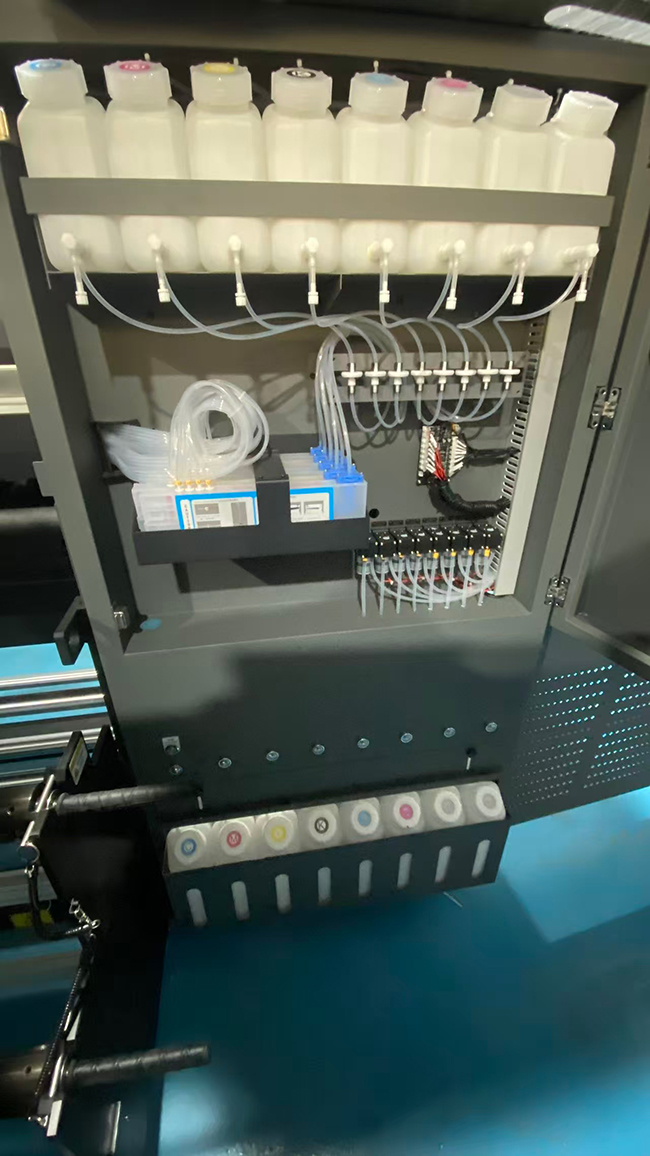

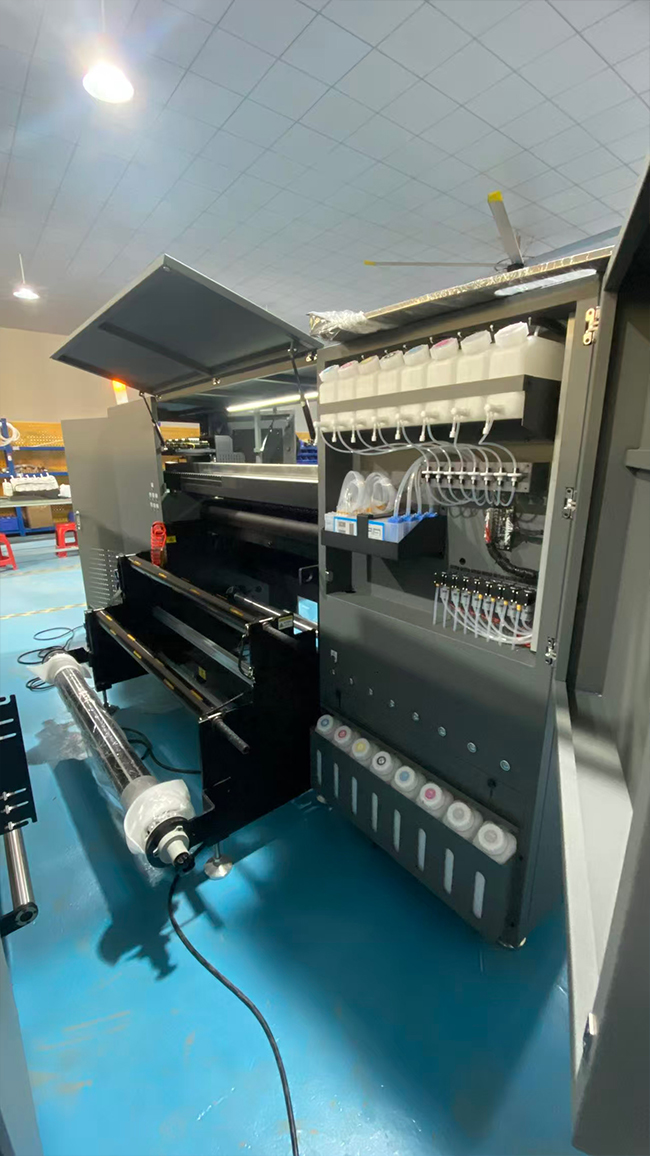

| Ink Supply Configuration | 8 channels – 5L ink tank (external) + ink bag |
| Printing Media | 17 g – 400 g paper roll materials |
| Paper Feeding Method | Friction roller feeding |
| Take‑up Unit | Drying after take‑up |

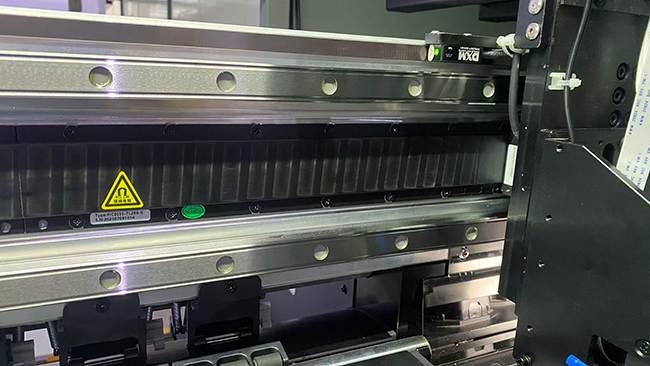

| Main Mechanical Structure | Cabinet‑type plate structure + THK dual linear guide + linear motor + pinch rollers |
| Platform / Rear Heating | Front suction & heating platform / rear heating |
| Carriage | Maintenance‑free base plate + anti‑collision |
| Ink Station Cleaning | Automatic cleaning (lift ink station + integrated scraper) |

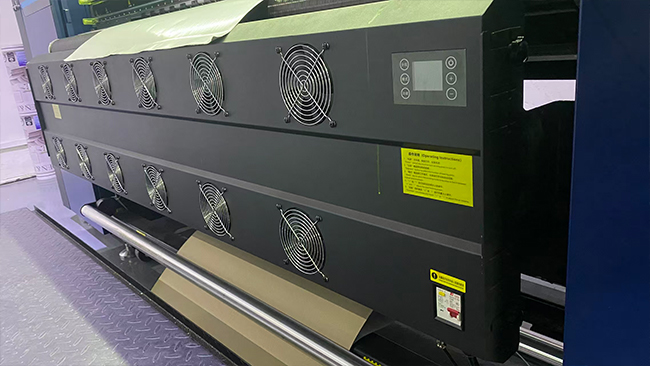

| Drying Unit | External automatic sensor drying (3‑stage front) |

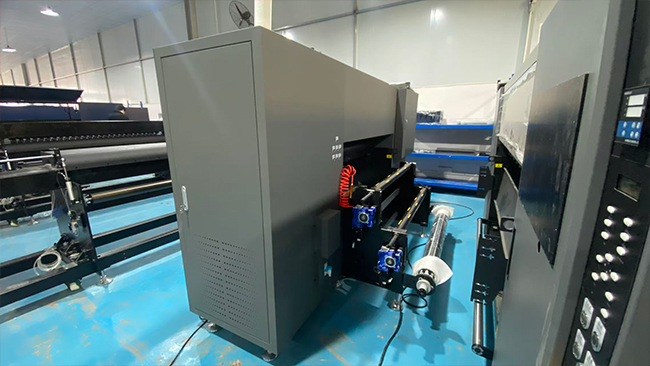

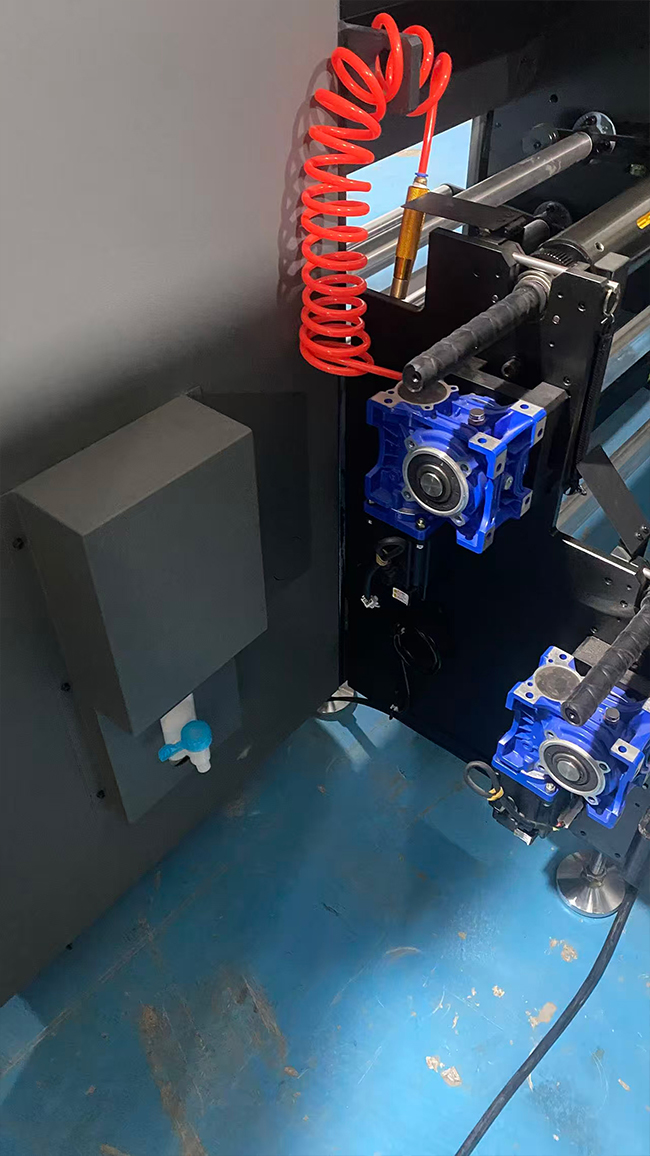

| Take‑up Control System | Inverter + 750W AC servo motor |
| Air Expansion Shaft | Aluminum strip type, 3 inch |
| Max Take‑up Diameter | Unwinding 600 mm / Rewinding 300 mm |
| Machine Weight | 900 kg |

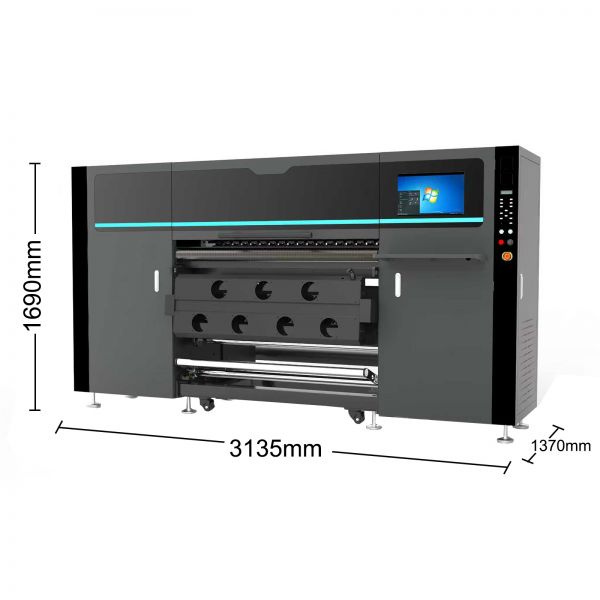

| Machine Dimensions | 3135x1370x1690 mm |
| Packing Dimensions | 3200x1350x1800 mm |
| Environmental Requirements | Temperature 25–28°C, Humidity 45%–70% |
| Power Supply | Single‑phase AC 220V / 3500W / 50–60Hz |
| Air Supply Requirement | Dry compressed air 0.4–0.6 MPa |
