เครื่องตัดเลเซอร์ไฟเบอร์สำหรับงานหนัก 1500x3000mm Heavy Duty Fiber Laser Cutting Machine
1000W/Raycus
Unit cost
THB 727,885.00
/set
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 727,885.00
Options
กรุณาเลือกประเภท กรุณาเลือกประเภท
Total Cost
THB 727,885.00
Amount
/set
1
Features:
• Industrialized welded machine structure, milled by accuracy planning machine, anealing treatment is made after, strong and stable machine structure can be assured during long time operating.
• Adopt Japanese THK grinding ball screw and THK high precision linear rail.
• Adopt Japan YASKAWA servo motor, the torque force is stronger, the working speed more faster and stable.
• Automatically-tracing smoking extraction system, energy-saving and perfect smoke extraction effect.
• Configured with inductive cutting head and mirror to reach as much smaller focus spot as, more delicate lines can be cut, higher efficiency, better processing quality.
• Optical fiber transmission, flexible processing, cutting quality at any point can be ensured.
• Professional laser CNC control system, computer operation, more simple.
• With intelligent discharging function, material utilization rate is higher.
Specification:
| FK1530 | |
| 1500x3000mm | |
| Fiber Laser | |
| 0.1mm | |
| ±0.05mm | |
| ≤6mm | |
| Red dot | |
| 380V/50Hz | |
| Water cooling | |
| 700W/1000W/1500W/2000W/3000 | |
| <10kw (No laser) | |
| 380V 50~60Hz | |
| 3500x4300mm |

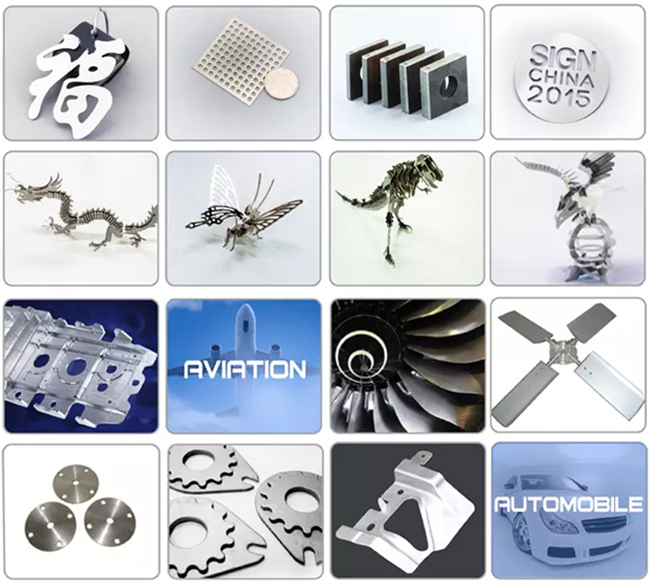

Application:
