ใบมีด Graphtec ระดับ 30 องศา, ขนาดเล็กสำหรับเครื่องตัดไวนิล Graphtec ( 5ชิ้น/ แพ็ค ) สินค้าของแท้,คุณภาพดี ---Small Graphtec Compatible Vinyl Cutter Blades
Unit cost
THB 462.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
8%
THB 462.00
Total Cost
THB 502.00
THB 462.00
Amount
/unit
1

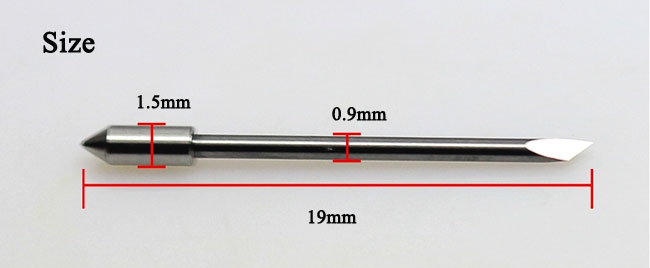

30 Degree Small Graphtec Compatible Vinyl Cutter Blades 5pcs/pack, OEM
Feature:
• Knifepoint is made from ultrafine grain size Zhuzhou cemented carbide.
• Higher hardness, greater strength, good abrasion resistance and good durability;

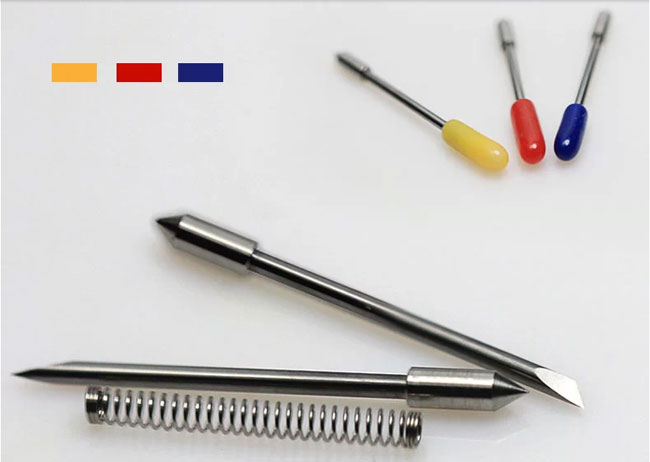

• 30°, 45°and 60°are in different color;
• Good sharpness, will not damage your material;
• The cutting speed is extremely quick with extra long life.
Remarks: OEM
The major difference for blades of different angles is cutting depth.

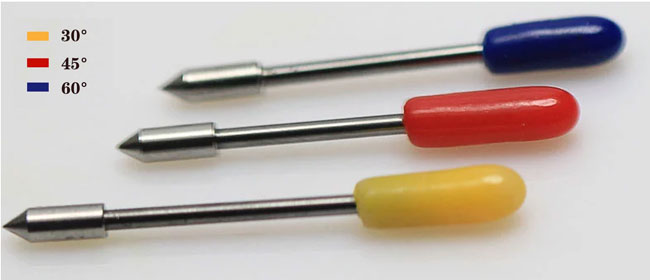

• 30° (Yellow) is great for small and fine designs, and is generally used for cutting quite small words, its knife point is rather sharp;
• 45°(Red) is commonly used in general designs, self-adhesive sticker, PVC, reflective film and post-its, which is very practical.
• 60°(Blue) is great for large designs, reflective film and other material.
Used for:
It can be used in clothing proof press and ordinary Graphtec plotter.
Note:
• If you use different cutters or different papers, you should adjust the extended length of the knife point. When finish adjustment,you can test the effect.
• Do not extend the knife point too long, otherwise you will pierce through the backing sheet thereby shorten the service life of cutter blades and mound layer.
• When cutting ordinary post-its, the extended length of the knife point should be within 0.55 mm.
Application:
Commonly used in cutting reflective film, CAD diagram, 3M reflective film, mobile phones beauty paste, etc.
