750W Pulse Model Fiber Optical Advertising Channel Letter Laser Welding Machine for Stainless Steel Aluminum
Unit cost
THB 212,396.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 212,396.00
Total Cost
THB 212,396.00
Amount
/unit
1

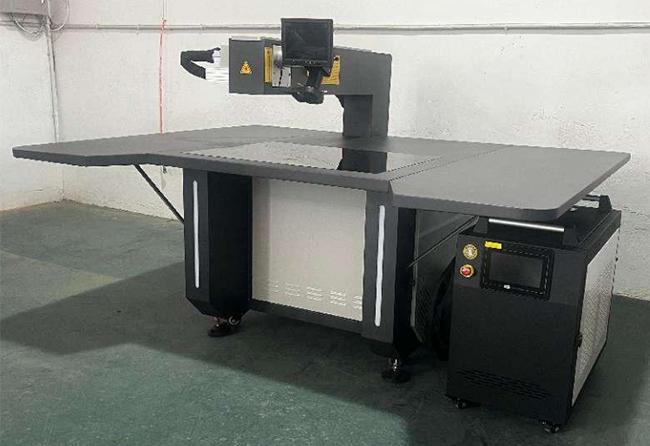

750W Pulse Model Fiber Optical Advertising Channel Letter Laser Welding Machine for Stainless Steel Aluminum
Dual-Beam Path System
- Hybrid Configuration: Benchtop workstation + handheld welding head
- Precision Control: Micron-level accuracy in benchtop mode (resolution: ±0.01 mm)
- Advanced Fiber Delivery: QBH fiber-coupled soft beam path ensures:
Enhanced beam quality (M² < 1.1)
Increased weld penetration depth
Breakthrough solutions for:
- Large-scale thin-sheet metal welding (0.1-3 mm thickness)
- Complex 3D spatial welding applications
| Model No. | QCW -750W |
| Laser source | QCW Fiber Laser source |
| Rated Power | 750W |
| Max. pulse energy | 30J |
| Laser welding depth | 0.1-3mm |
| Pulse width | 0.2-50ms |
| Laser welding frequency | 1-1000Hz |
| Sight positioning | CCD synchronous high-definition camera+red light |
| Device vertical travel | ≈200mm |
| Length of optical cable | 5-8m |
| Whole power consumption | 2KW |
| Voltage | AC220V±10% 50HZ |

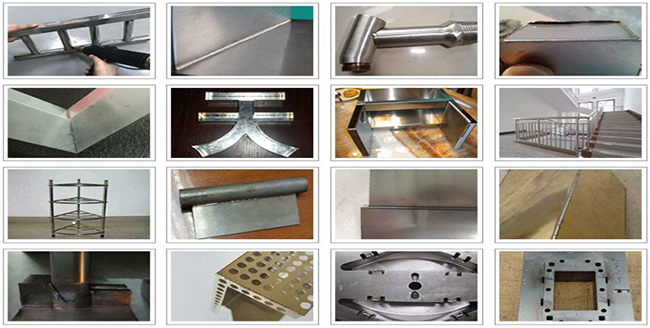

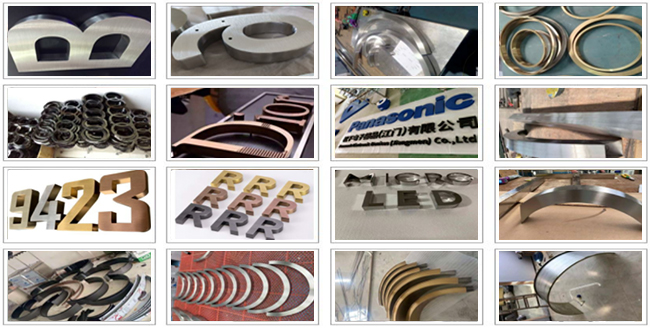

Application:
Certification:
