DH-5150 เครื่องดัดตัวอักษรอัตโนมัติสำหรับวัสดุอลูมิเนียม DH-5150 Automatic Channel Letter Fabrication Bender Machine for Aluminum Materials
Unit cost
THB 154,277.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 154,277.00
Total Cost
THB 154,277.00
Amount
/unit
1
Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be Windows7 32/64-bit with PCI slot.
Description：
It is a fully automatic channel letter fabrication machine in sign making industry.
Features:
1. It is a unique machine to make channel letters in the world.
2. Automatic feed, automatic slot, automatic bend and automatic to adjust cutting depth.
3. Working Principle: It controlled by the computer, can finish Letter Return/Outside in one time after click" Run" button.
4. High speed.
5. High precision. Bend the letter" return" that match perfectly to the CNC router-cut face and back
6. Low labor cost. Our channel letter bender has a production capability equivalent to about 10-20 people.
7. Low energy consumption.
8. Multiple specifications of aluminum material available.
9. CE certificate
Advantages:
1.Encoder control feeding length, Auto-Compensation on slipping.
2.Adjust cutting depth automatically by software.
3.The whole machine adjust by software, no any working part adjusted by hand any more.
4.Easy to Adjust. With more functional software, one software setting could work on different material.
5.Bender Device(Head) adopt Steel Structure: As the main structure of the machine, the bender device(Head) made by steel, more stable and stronger during bend-working.
6. As the core part of motion card, we use high-class CPU. Its cost come up to 2-3 times than other machine suppliers.
7. Software more functional: compensation on straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Easy to Adjust. With more functional software, one software setting could work on different material.
9. Can read AI,DXF and PLT format. Perfect match CNC Router.
Specification:
| Model | SIT-DH-5150 |
| Working Principle | Auto feed, Auto Slot(Cut), Auto Bend/Auto Adjust Cutting Depth By Software(Brand-New Technology owned by Dahe Company) |
| Processing Material | Aluminum, Channelume and other custom alu Profile |
| Material Height | 150mm(Custom height available) |
| Material Thickness | 0.2-1.2mm |
| Slot Degree | 45-135 Degree |
| Speed | 600-1000 Meters/8 Hour |
| Min Bending Diameter | ≧12mm |
| Voltage | 220V |
| Power | ≤1500W |
| File Format | AI,Dxf,plt |
| Air Compressor | 0.6 Mpa |
| Warranty | 1 Year(not including blade and belt) |
| Machine Size | 1300*600*1300mm |
| Machine Weight | 350KG |
| Packing Size | 1510*810*1400mm |
| Gross Weight | 400KG |
Details:

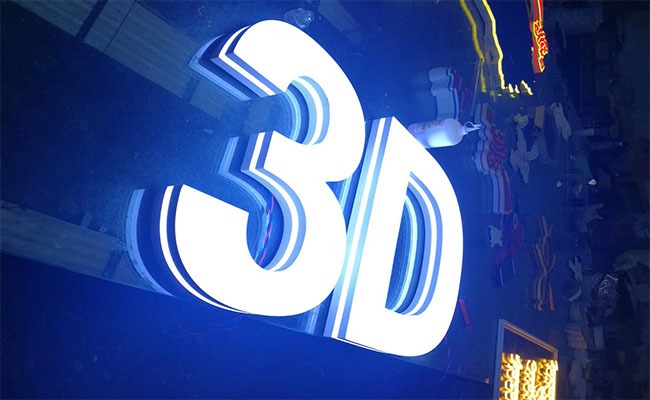

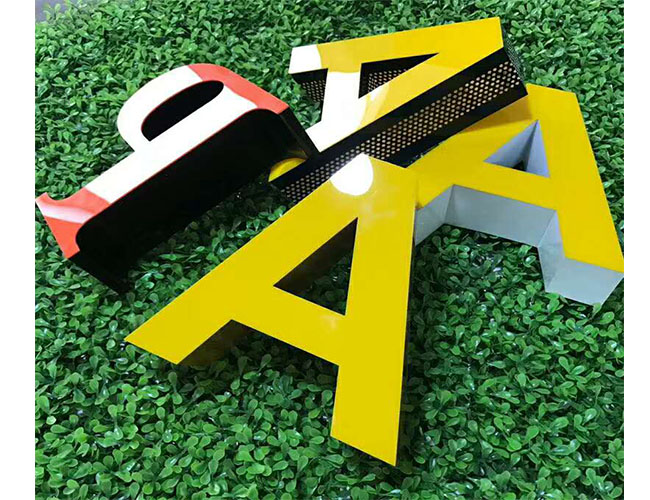

Sample Letters:
Available Material:
Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be W7 32-bit with PCI slot.
