หลอดเลเซอร์ EFR ZS2050 170W CO2 Sealed Laser Tube
Unit cost
THB 98,572.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
12%
THB 98,572.00
Total Cost
THB 112,014.00
THB 98,572.00
Amount
/unit
1
Feature:
1. Reliability: ZN/ZS2050 130W CO2 Sealed Laser Tube is imported from Germany, the complete glass tube quality is under controlled.

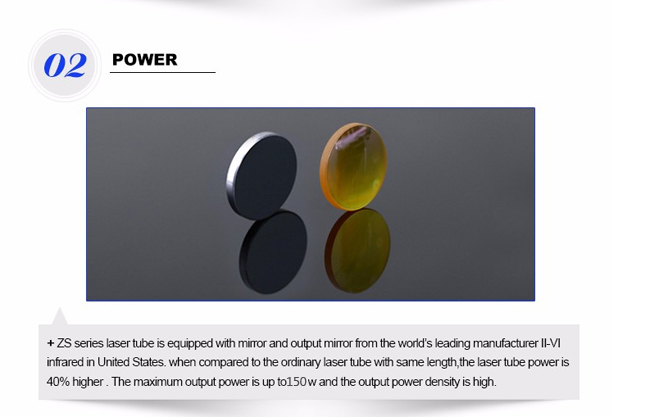

2. Power: The ZS-2050 CO2 Laser Tube uses American II-VI mirror and lens. The power is 40% • higher than other laser tube with same length.
3. Long Lifespan: catalyst coated discharge tube with processed electrode, the discharging is more stable, and working life is up to 10000 hours.
4. Beam: stable cavity structure brings more reliable beam and better quality, beam mode is up to TEM00.
Advantage:
1. Solved the problem that beam mode changes, power is more stable.
2. Improved the yield, the production quantity is increased, delivery time is more short.
3. Production engineering and product structure is more mature.
Product Upgrade:
Product Details:
Operating Condition
Water cooling:
Cooling liquid: clean water;
Ambient: temperature: 2°C -40°C; humidity: 10-60%
Incorrect operation of the Co2 laser tube may result in different consequences, including a change in color of the negative electrode after long term over-current use, and the service life will be significantly reduced. Please cover the high pressure protective housing with plastic wrap to prevent dust from disturbing the interior electrodes.
Cleaning Tips: Please do not use cotton swabs or other wipes to scrub the transmitting mirror on the Co2 laser tube. Doing so affects the output power.
The specified cleaning method for the transmitting mirror is as follows
1. When the lens is stained, turn off the laser tube.
2. Use an air blower to blow away dust and dirt on the lens.
3. Use a syringe to spray ethanol on the lens.
4. After the ethanol evaporates, turn the laser tube back on.
5. If the above methods do not work effectively, professionals are required, who will use a cotton swab dipped in ethanol to clean the lens in a rotating fashion away from the center, outwards to the edge.The best method is to protect the windows from contamination.
Safety: As the C02 glass laser device generates invisible light, please wear eye protection gear when operating. A safety sign for high voltage is marked on the positive pole.
Storage and Transportation Requirements: When storing and transporting the Co2 laser tube, please drain the cooling liquid and cover the tube ends with dustproof plastic bags. For storage, the required environmental temperature is 2-40CC and the humidity ranges from 10-60%.
Adhesive tapes and sponges should be used to fix the laser tubes and prevent sliding during transport. A 70mm sponge should be use at the end of the transmitting mirror, and a 50mm sponge should be at the end of the fully reflecting mirror.
