General Purpose 4-edge Round Nose Milling Cutter TiSiN Coating
DPR4-1-01
Unit cost
THB 599.00
/pc
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 599.00
Options
กรุณาเลือกประเภท กรุณาเลือกประเภท
Total Cost
THB 599.00
Amount
/pc
1
General Purpose 4-edge Round Nose Milling Cutter TiSiN Coating
It is suitable for high and medium speed processing of alloy steel, die steel and pre hardened steel below HRC50 degrees.
Material: Cemented Carbide(Tungsten Steel)
Coating: TiCrN
Remark: Please Choose the Model when ordering.

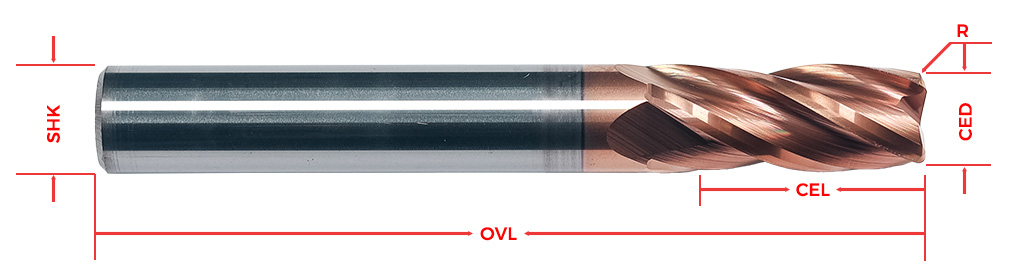

| Model | CED(mm) | CEL(mm) | R | SHK(mm) | OVL(mm) |
| DHR-1-01 | 1 | 3 | 0.1 | 4 | 50 |
| DHR-1-02 | 1 | 3 | 0.2 | 4 | 50 |
| DHR-2-02 | 2 | 6 | 0.2 | 4 | 50 |
| DHR-2-03 | 2 | 6 | 0.3 | 4 | 50 |
| DHR-3-02 | 3 | 8 | 0.2 | 4 | 50 |
| DHR-3-03 | 3 | 8 | 0.3 | 4 | 50 |
| DHR-4-03 | 4 | 10 | 0.3 | 4 | 50 |
| DHR-4-05 | 4 | 10 | 0.5 | 4 | 50 |
| DHR-5-05 | 5 | 13 | 0.5 | 5 | 50 |
| DHR-5-10 | 5 | 13 | 1 | 5 | 50 |
| DHR-6-05 | 6 | 15 | 0.5 | 6 | 50 |
| DHR-6-10 | 6 | 15 | 1 | 6 | 50 |
| DHR-8-05 | 8 | 20 | 0.5 | 8 | 60 |
| DHR-8-10 | 8 | 20 | 1 | 8 | 60 |
| DHR-10-05 | 10 | 25 | 0.5 | 10 | 75 |
| DHR-10-10 | 10 | 25 | 1 | 10 | 75 |
| DHR-10-20 | 10 | 25 | 2 | 10 | 75 |
| DHR-12-10 | 12 | 30 | 1 | 12 | 75 |
| DHR-12-20 | 12 | 30 | 2 | 12 | 75 |
| DHR-12-30 | 12 | 30 | 3 | 12 | 75 |
