Internal Cooling Twist Drill 5D Carbide Bits 6 Shank Diameter For Cast Iron
DP5D040C
Unit cost
THB 1,783.00
/pc
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 1,783.00
Options
กรุณาเลือกประเภท กรุณาเลือกประเภท
Total Cost
THB 1,783.00
Amount
/pc
1
Universal Internal Cooling Twist Drill 5D Carbide Bits 6 Shank Diameter For Cast Iron
Suitable for drilling cast iron of automobile industry and other industries.
Wave formed cutting lips provides lowered machining torque.
Four margin design, improves hole wall quality and accuracy.
Increased Drills point strength through optimized chisel edge.
Material: Tungsten Carbide
Type: Twist Drill Bit
Cooling Method: External Cooling
Use: Metal Drilling
Remark: Please Choose the Model when ordering.

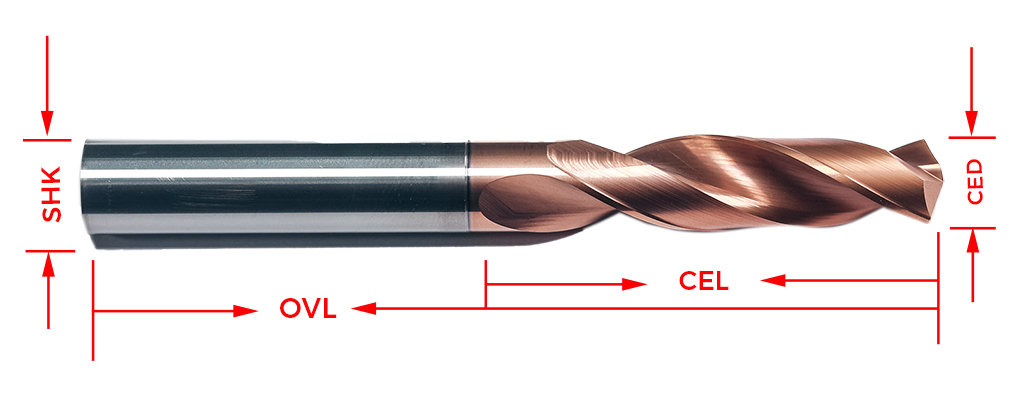

| Model | D(mm) | l/d(mm) | L1(mm) | L2(mm) | D2 |
| DP5D040C | 4 | 5D | 36 | 83 | 6 |
| DP5D041C | 4.1 | 5D | 36 | 83 | 6 |
| DP5D042C | 4.2 | 5D | 36 | 83 | 6 |
| DP5D043C | 4.3 | 5D | 36 | 83 | 6 |
| DP5D044C | 4.4 | 5D | 36 | 83 | 6 |
| DP5D045C | 4.5 | 5D | 36 | 83 | 6 |
| DP5D046C | 4.6 | 5D | 36 | 83 | 6 |
| DP5D047C | 4.7 | 5D | 36 | 83 | 6 |
| DP5D048C | 4.8 | 5D | 44 | 83 | 6 |
| DP5D049C | 4.9 | 5D | 44 | 83 | 6 |
| DP5D050C | 5 | 5D | 44 | 83 | 6 |
| DP5D051C | 5.1 | 5D | 44 | 83 | 6 |
| DP5D052C | 5.2 | 5D | 44 | 83 | 6 |
| DP5D053C | 5.3 | 5D | 44 | 83 | 6 |
| DP5D054C | 5.4 | 5D | 44 | 83 | 6 |
| DP5D055C | 5.5 | 5D | 44 | 83 | 6 |
| DP5D056C | 5.6 | 5D | 44 | 83 | 6 |
| DP5D057C | 5.7 | 5D | 44 | 83 | 6 |
| DP5D058C | 5.8 | 5D | 44 | 83 | 6 |
| DP5D059C | 5.9 | 5D | 44 | 83 | 6 |
