คีมเจาะรูแผ่นโลหะ (รุ่นที่ 3 ) สำหรับทำป้ายตัวอักษรโลหะเรืองแสง ขนาดเส้นผ่านศูนย์กลางช่องเจาะ 3.5 ม.ม. --- Metal Channel Letter Punch Plier (3.5mm Dia. Hole Changeable)
Unit cost
THB 927.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
12%
THB 927.00
Total Cost
THB 1,053.00
THB 927.00
Amount
/unit
1
Metal Channel Letter Punch Plier (3.5mm Dia. Hole Changeable)
Features:
• Automatic stripping facilitates use and operates more efficiently. The automatic stripping spring is installed on the punch and die, so after punching metal plates, you can slightly let go, then the handle will automatically reset and the punch bit will automatically get back.

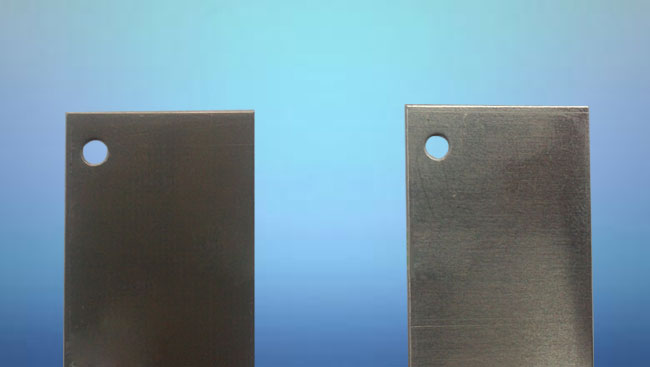

• The Third Generation Metal Stud Punch can punch smooth and neat holes without any burrs, which is the necessary punching tools for making fine metal words.
• The punch and die are made from tungsten steel alloy. The thickness of exposed part of the punch die is 2.5mm. In machine punch experiment, punch and die can punch 120 holes in one minute without any wear and tear.
Specification:
Punching thickness:
Iron Sheet: 1.5mm
Stainless Steel: 1.0mmAluminum Extrusions: 1.5mm
Aluminum Coils: 1.5mm
Feeding size: 2-12mm
Tips:

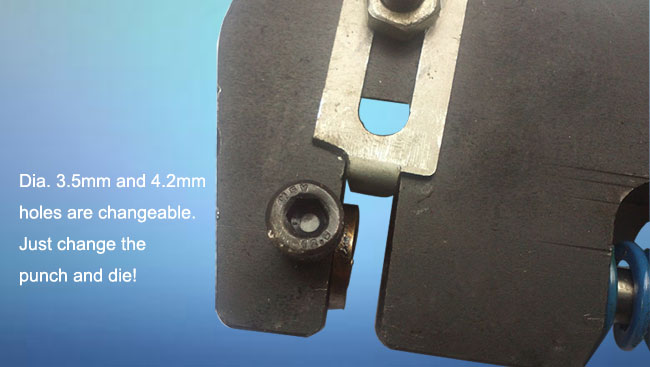

• Replaceable punch and die are 3.5mm and 4mm, and it is very easy to replace punch and die.Disassemble the round punch and die, and then assemble the other size you want.
• The replaceable punch and die must be corresponding to avoid operation problems.
The Third Generation Metal Stud Punch can be used for punching iron sheet, stainless steel, aluminum extrusions and aluminum coils.
