เครื่องวัดความตึง ผ้าสกรีน 7-50N --- 7-50N Screen Printing Mesh Tension Precise Meter Tension Gauge Measurement Tool
Unit cost
THB 4,481.00
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
10%
THB 4,481.00
Total Cost
THB 4,979.00
THB 4,481.00
Amount
/unit
1

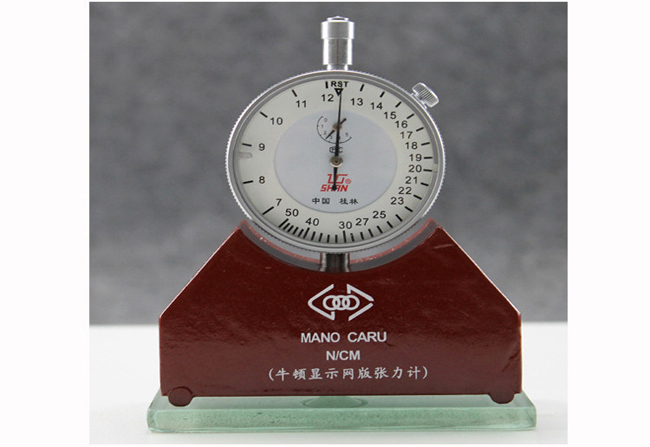

7-50N Screen Printing Mesh Tension Precise Meter Tension Gauge Measurement Tool
Specifications:
This item is 7-50N
Usage: Tensile Testing Machine
Printing: Silk Screen Printing
Machine size:25 x 25 x 10cm (9.84inch x 9.84inch x 3.94inch).
Instruction:
1.Before using please put the tension meter on the glass and turn round the dial to make the pointer return to zero.
2.Flick the silk screen during measuring, the indication when the pointer stopped is the tension of the silk screen.
3.Tension meter is precision meter, fall and touch is forbidden, be careful during using.
4.Tension meter has been tested precisely when leave the factory, dismounting alone is not allowed.
5. Can't touch the bottom side contactor by hand, put the machine vertically without using.
6. The Newton indication is the indication of the tension's contactor, the error is +0.5N.
7. The indication of the second circle is the measured value during measuring.
Function of the silk screen tension meter
1).The tension meter can be used to measure the tension of the screen you stretch. Or portable, compact, mechanical tension measuring device
2).measure tension of all screen printing fabrics in Newtons per centimeter (N/cm)
3).The tonometer consists of a shock-resistant measuring base with a precision mechanical dial indicator.
4).The tonometer works on the principle of force deflection: the unique design of the meters 3-point measuring base permits accurate measurement on the screen (polyester, nylon or wire), independent of the screen frame or stretching device;

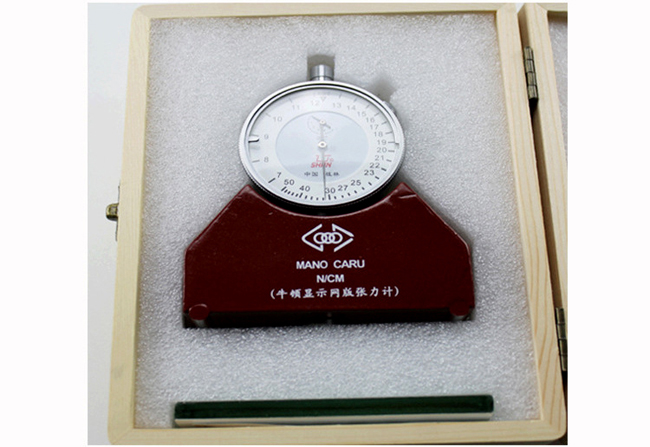

5).protected in a convenient, rugged plastic carrying case.
Features of silk screen tension meter
1.Good quality very easy to use and accurate checking the tension of the mesh is the best tool for checking tension when stretching
2.It is used for testing the mesh tension of N/cm.very dependable and affordable accuracy tool, no adjustment necessary.
3.Item also includes a good packing box Good for screen printing streching mesh and apply proper tension to make good quality long lasting frames.
4. Good quality with good price,Each screen printer should have one !
Package:
Packing size :30 x 30 x 15cm ( 11 inch x 11 inch x 5.5 inch ).
Net weight :1kg (2.2lb).
Gross weight :1.3kg (2.86lb).
