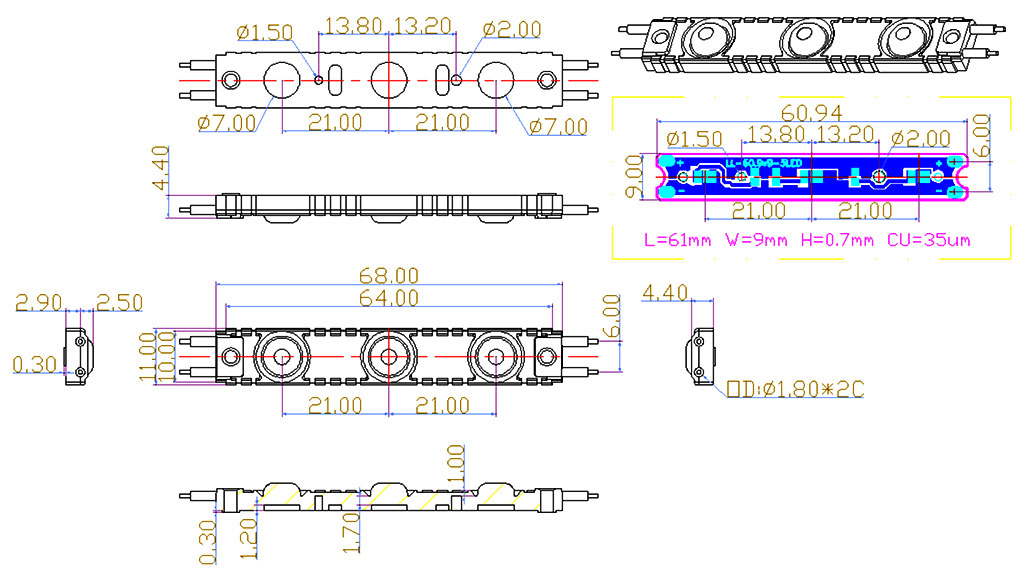

SMD 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, 0.96W, L70 x W12 x H6mm), DC12V
Unit cost
THB 18.62
/unit
Wholesale discounts
Quantity
Discount
Price per unit
1
0%
THB 18.62
Total Cost
THB 18.62
Amount
/unit
1
Features
Sourced by high output SMD2835, good color conformity and no spot.
Overmoulded: anti-dusting, anti-moisture, waterproof, anti-shock.

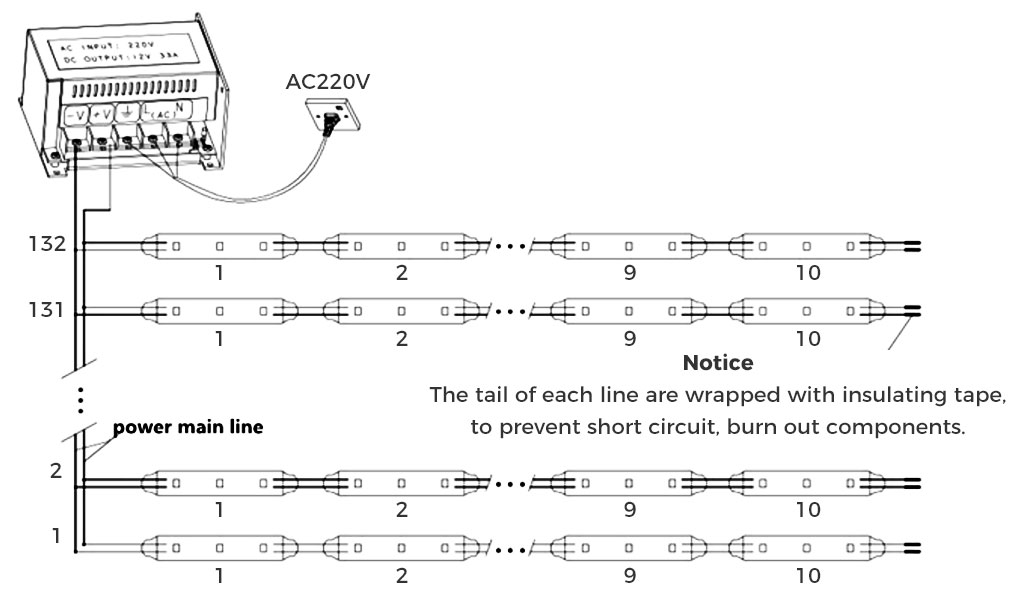

20pcs Max. in a series connection.
CE, ROHS certified
Notice:
1-No static touch, hot-line work.
2-Use a switch or power supply with an installed security (with over voltage, over current, open circuit protection, etc.)
3-Please follow the PCB on the positive and negative poles are connected, the red line is positive, the white line is negative.
4- The module is prohibited overload
5-It is strictly prohibited to use the hand to press the LED surface.

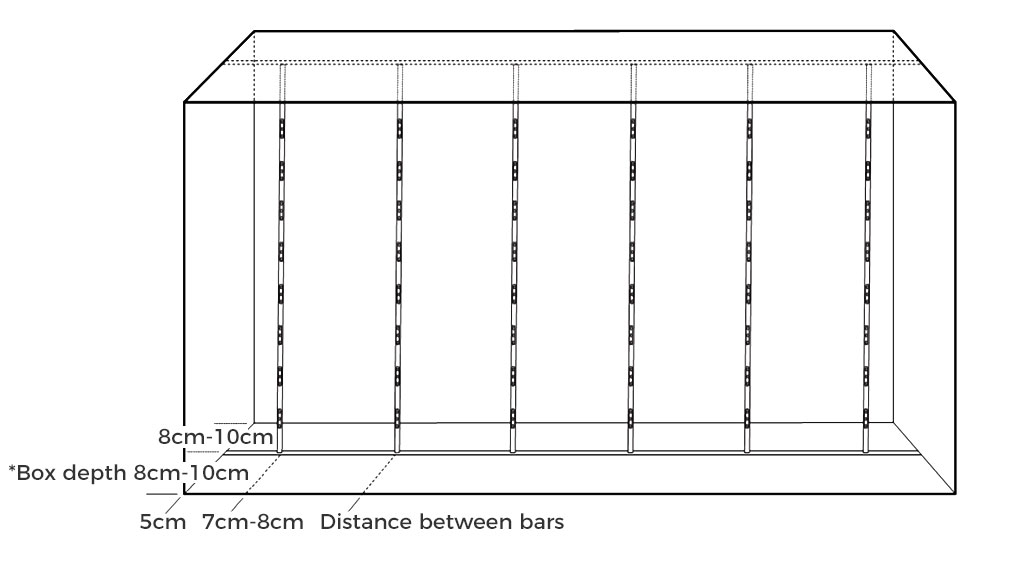

Application: Light box
We recommend:
- Box depth:8cm-10cm
- Distance between bars:7cm-8cm
Box depth can be from 8cm-12cm
If box depth is more than 12cm,the brightness will decrease
If the depth of box is less than 8cm to 10cm, distance between bas should be less than 7cm
The wider the beam angle of led module the thinner the depth of box. The narrower the beam angle of led module the thicker the depth of box.
