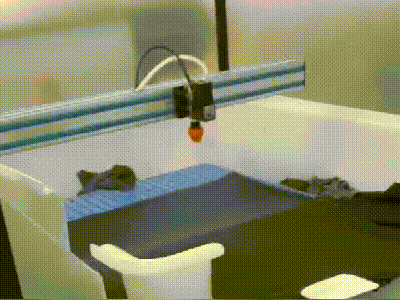

Spray Pretreatment Machine, DTG Pretreat Machine
Specification:Dimensions: 83x65cm
Nozzle: Single nozzle (Imported from USA)
Max sprayed area: 83x65 cm
Length adjustable range: 0-83 cm
Sprayed flux: 50-60 ml
Power: AC220V, 50HZ, 120W
Advantage:
1.Low power consumption, faster spraying speed, meticulous and uniform.
2.Adjustable spray area and processing liquid volume for precise control.
3.Environmentally friendly and pollution-free, the treatment solution can be filtered and recycled to save costs.
Notes:
1.Install a layer of 800 mesh filter screen around the suction treatment liquid filter port
2.The processing solution can be recycled, but it needs to be filtered through an 800 mesh filter before it can be used.
3.After using the sprinkler, clean the pipeline to prevent blockage of the pump and nozzle. After cleaning, soak them in water.
4.Different from the processing solution, the speed can be adjusted to control the humidity of the spray. Generally, spray 20000 on black cloth twice and spray once on white cloth, subject to testing.
5.After spraying the treatment solution, it should be cleaned with washing water to prevent nozzle clogging, uneven spraying, and pump damage.
6.Solution for nozzle blockage: The nozzle can be removed and soaked in hot water for 3 minutes, then blown with a trachea, washed several times, and installed back for use;
7.If the suction pump is blocked, it can be removed and cleaned before being installed back for normal use (there is a disassembly video available);
8.The electromagnetic valve filter needs to be cleaned once a week, as the treatment solution is highly corrosive. The pump needs to be cleaned once every three months;
