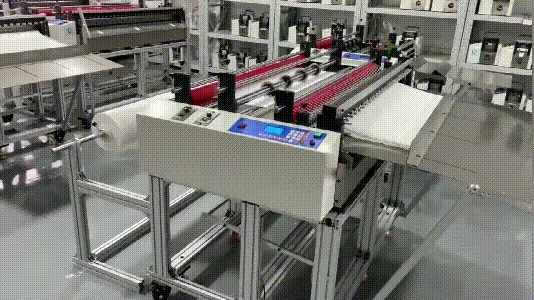

1.2m XY Cutter Machine for Paper Film
Features:- High speed feeding, automatic and manual free switching, convenient for operators.
- The speed is adjustable, with a maximum value of 120 times per minute (taking a 30mm cutting length as an example).
- Adjustable length, adjustable between 0.1mm and 99999.9mm.
- Multiple tension devices are used to maintain the material in a flat state at all times, avoiding material from being skewed or skewed.
- Photoelectric induction automatic feeding, front and rear automatic matching, online speed regulation, power round knife. cutting components, one step length and width positioning.
- Spring feeding components increase friction, flatten and unfold materials, avoid material adhesion to the machine, and stack materials more neatly (for light, thin, and soft materials).
- One click switch between Chinese and English, LCD display.
- It can be cut in double rows or multiple rows simultaneously, with adjustable length and speed continuously.
- Adopting high-precision feeding motor, microcomputer program control accuracy reaches 0.1mm.
- High power cutting motor, powerful and widely applicable.
- Batch pause and delay time can be set.
- Cutting time protection; Total number setting; Segmented and batched setting; The segmented pause time is adjustable.
- The LCD large screen displays Chinese characters intuitively, with simple and convenient operation.
- Automatic accumulation and total setting, cumulative counting.
- By using specialized mechanical structures and special thickened cutting tools, coupled with dedicated software control, the problem of uneven material cuts has been solved.
- Achieve a smooth incision, precise length, stability, and durability.
Specification:
| Model |
1200T |
| Cutting width |
1200mm |
| Cutting Speed |
30-120pcs/min |
| Max Cutting Length |
0.1mm-9999mm(adjustable) |
| Cutting Precision |
±0.1mm |
| Maximum load capacity |
150KG |
| Discharge diameter |
1m |
| Voltage |
1300W 220V/50Hz |
| Display |
LCD display |
Application:
