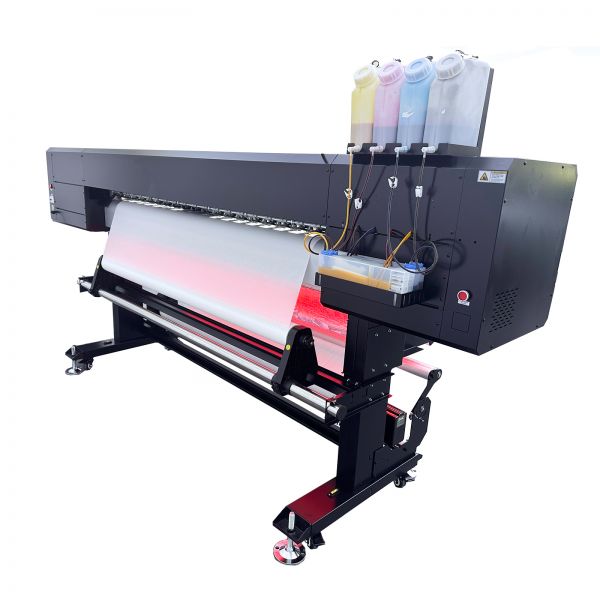

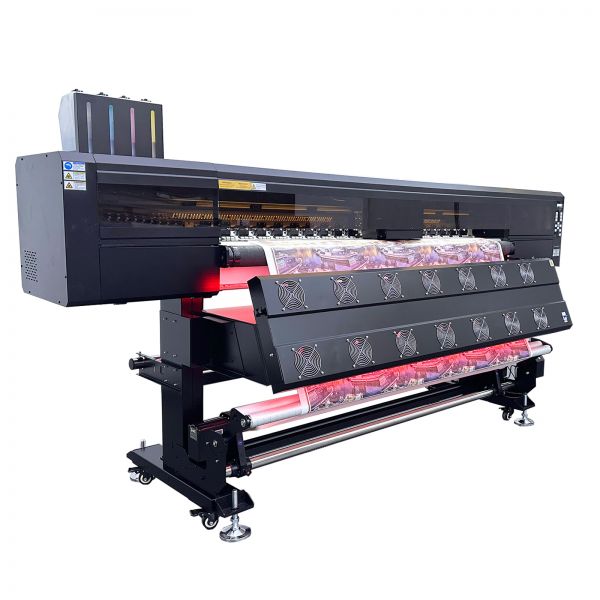

1.8m Sublimation Printer for Fiber Fabric (4 Epson i3200A1 Printheads)
Specification:
| Printing Speed | Weak Feather | Normal Feather | Strong Feather |
| 3pass 360*1800dpi | 98m²/h | 93m²/h | 77m²/h |
| 4pass 720*1200dpi | 72m²/h | 68m²/h | 60m²/h |
| 6pass 720*1800dpi | 50m²/h | 46m²/h | 44m²/h |
| Boards & RIP | Boards | AT Boards |
| Password | Build In Boards & Showing In Software | |
| Rip Software | Maintop / Photoprint Rip software | |
| Body | Main Girder Structure | 200x100x5mm Square Tube |
| Y-Axis | 20mm Diameter | |
| Beam | Aluminium Beam | |
| Linear Guide Way | THK Linear Guide Way With Two Block | |

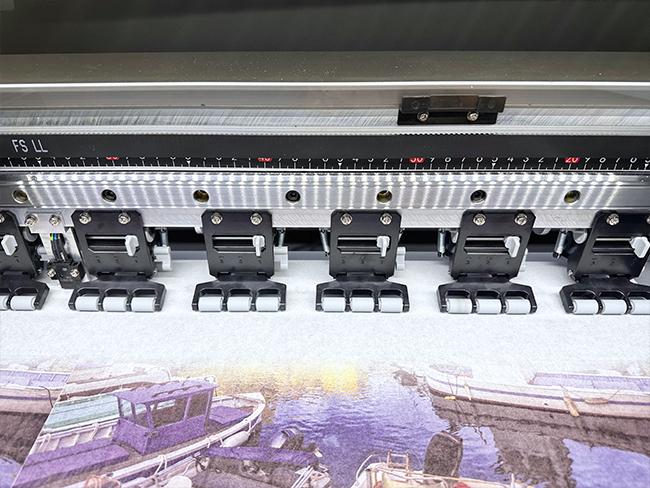

| Pinch Roller | High Precision 3 Level Pinch Roller | |
| Printing Bed | 178mm Wide Printing Bed | |
| Suction System | Adjustable Vacuum Suction System | |
| LED Lighting | Printing Bed Lighting System | |
| Carriage | Belt | Italy MEGADYNE Belt |
| Chain | Germany Igus Drag Chain | |
| Cable | Fiber | |
| Power Cable | Germany Igus Power Cable | |
| Encoder | 180DPI (9730) | |
| Carriage Lifting | Manual Screw Type Carriage Lifting System | |

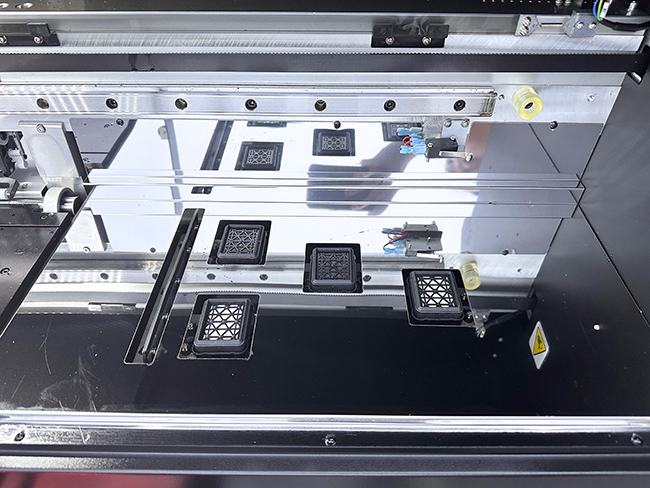

| Capping | Automatic Capping & Wiping System | |
| Anti Collision | Anti Collision System | |
| Motor | X Motor | Leadshine 400W AC Servo Motor |
| Y Motor | Leadshine 180W DC Servo Motor | |
| XY Motor Bracket | Metal Brackets | |
| F&T | Paper Sensor | Paper Out Warning Sensor |
| Feeding And Take Up | Swing Take Up System | |
| Leveling Stand | Leveling Stand | |

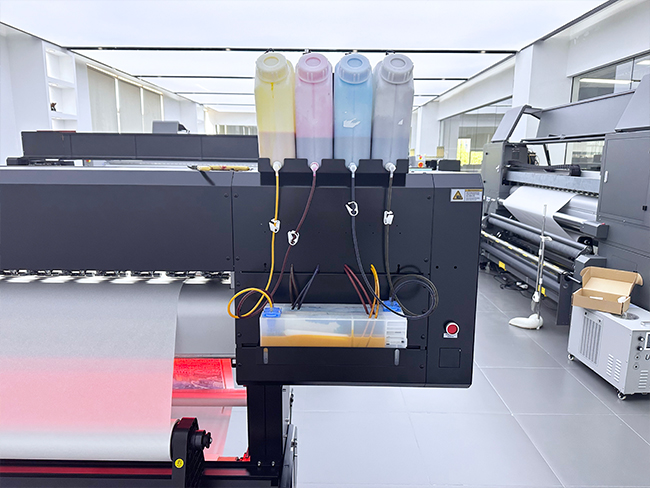

| Ink Supply | Ink Supply System | Bulk Ink Supply System |
| Main Ink Tank | 3L Main Ink Tank | |
| Damper | Negative Type Damper | |
| Ink Pump | SPD Ink Pump | |

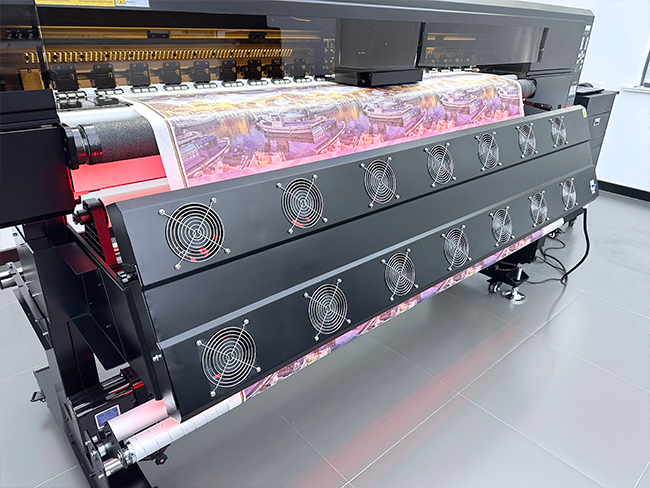

| Heating & Drying | Drying System | 4000W IR Heater |
| Heating Control Panel | 3 in 1 Heating Control Panel | |
| Heating System | Rear-Printing Bed-Front 3 Heaters | |
| Carriage Plate Heater | 24V DC Heater | |
| Packing | Printer Name Plate | Aluminum Name Plate |
| Printer Packing | Wooden Box | |
| Printer Model | EP1804 | |
| Printer Size (L*W*H) | 3096x705x1410mm | |
| Packing Size | 3200x750x1130mm | |
| N.W./G.W. | 365KGS/460KGS | |
| 20GP/40HQ | 6PCS/18PCS |
Details:
Aplicaciones：
