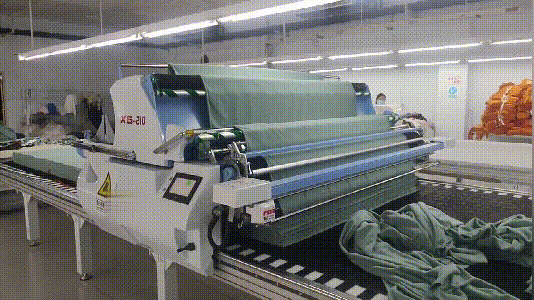

1.9m Integrated Automatic Spreading Machine
Features:1. Spreading system (fabric edging function)
2. Automatic rising-lowering
3. Automatic fabric cutting system
4. Emergency stop and start device for steel cables
5. Automatic lifting device
6. Set the walking distance of the cutting blade according to the width of the cloth, and use a layer counting device
7. Single side fixed mobile folding device (optional)
8. Fixed folding device for double pulling (optional)
9. Automatic fabric connection function (software function)
10. Computer Control of the Acceleration and Deceleration Speed of the Lapping Machine
11. Servo motor automatic tracking and following loosecloth device

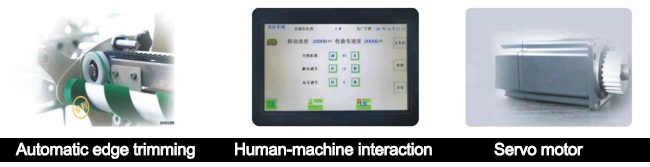

12. Automatic edge alignment device
13. Automatic fabric clamping device
14. PLC touch screen
15. Roll back device (roll support fabric)
16. Knife cutting device
17. Memory storage function for ten types of fabrics
Specification:
| Paving width |
1900mm |
| Paving length |
6m |
| Maximum roll diameter |
500mm (Customizable widening) |
| Maximum roll weight |
150kg |
| Maximum driving speed |
100m/min |
| Maximum laying height |
Single pull 230mm/ double pull 200mm (customizable for elevation) |
| Power supply power |
1p/220v/50hz/2.2kw |
