1325*2500mm/1500*3000mm Flatbed Lamination Table for All Size Prints and Kinds of Board
1300*2500mm
ราคาต่อชิ้น
THB 143,495.00
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 143,495.00
ตัวเลือก
กรุณาเลือกประเภท กรุณาเลือกประเภท
ค่าใช้จ่ายรวม
THB 143,495.00
จำนวน
/set
1

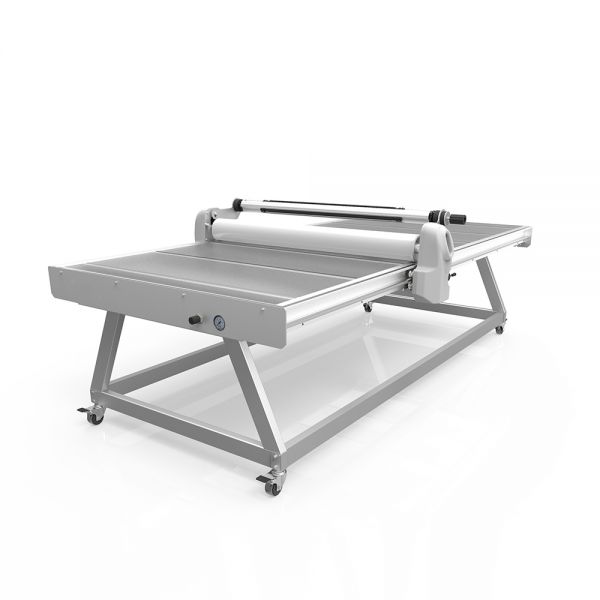

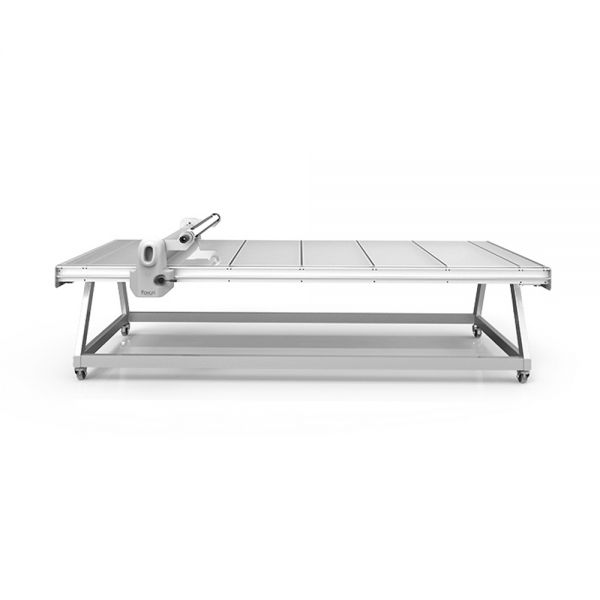

1325*2500mm/1500*3000mm Flatbed Lamination Table for All Size Prints and Kinds of Board
Flatbed laminator designed for the application of foil and all types of self-adhesive vinyl, transfer film, cold lamination and mounting of images on panels.It is an innovative flatbed laminator specially designed to enable easy and precise applications of foil and self-adhesive vinyl on a wide variety of materials (e.g. sheet metal, plastic, glass and banners). It is used as well for panels mounting and industrial applications.
Features:
1. 70% faster application to rigid boards
2. The only work bench you will ever need
3. Media holder and compressor included
4. Toughened Anti-Scratch tempered glass bed
5. LED table lighting system
6. Simple structure, easily operate
Specification:
| Specification | |
| Model | FY1325-1530 |
| Max laminating size | 1300mm x 2500mm\1500mm x 3000mm |
| Max laminating thickness | 50mm |
| Diameter of roller | 130mm |
| Material of rollers | Silicon dioxide |
| Table glass | 10mm temper glass |
| Illumination | LED tube illumination |
| Machine frame | Alloy aluminum |
| Operation type | Manual |
| Roller upgrade | Air cylinder |
| Pressure Range | 0.8-1.0kw/h |
| Pressure Range | 0-0.8Mpa |
| Voltage | 220V/110V, 50 / 60HZ |
Product Details:

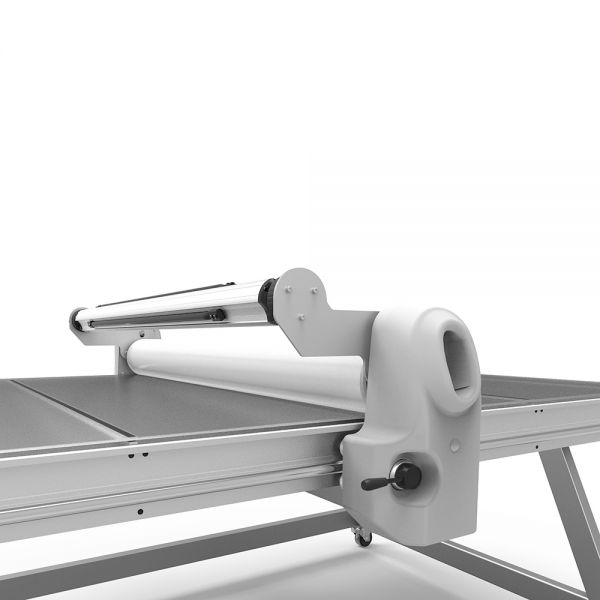

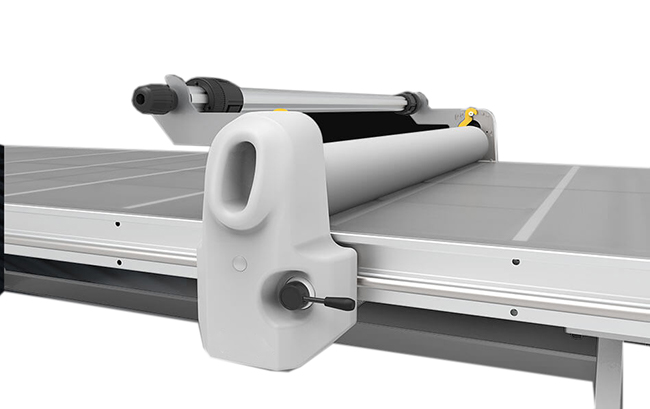

Pneumatic Handle Valve Control The table roll lifting is controlled by handle valve. can stands 100,000 times reciprocation.
Pure mechanical structure, without internal electric circuits.
Ergonomic design, comfortable grip feeling.

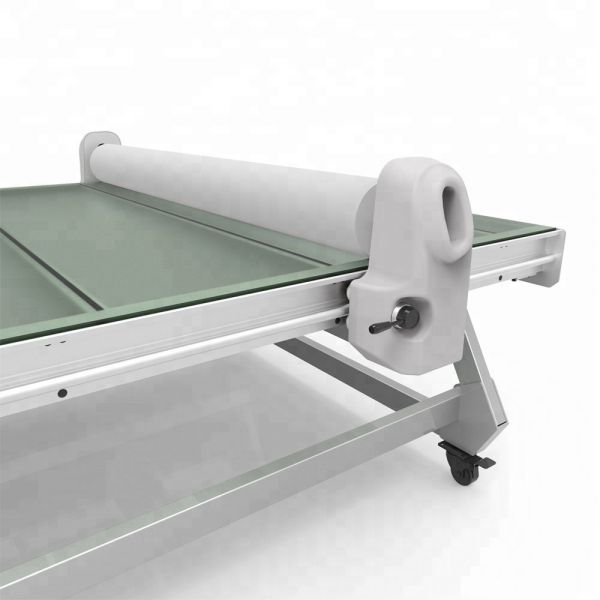

Slim but strong Machine Body
Pure Alloy Aluminum Profle structure

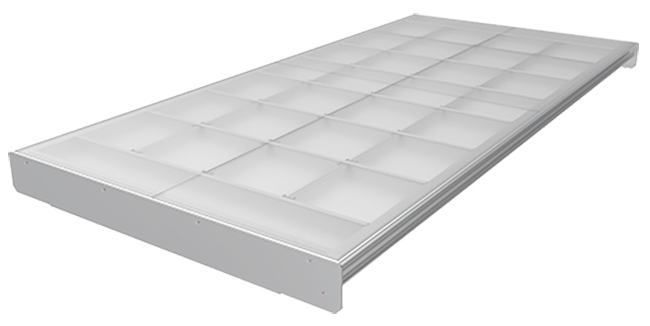

Laboratory level flat surface 10mm thickness Tempered Glass
Anti-scraching and withstand impact All corners and edges are rounded

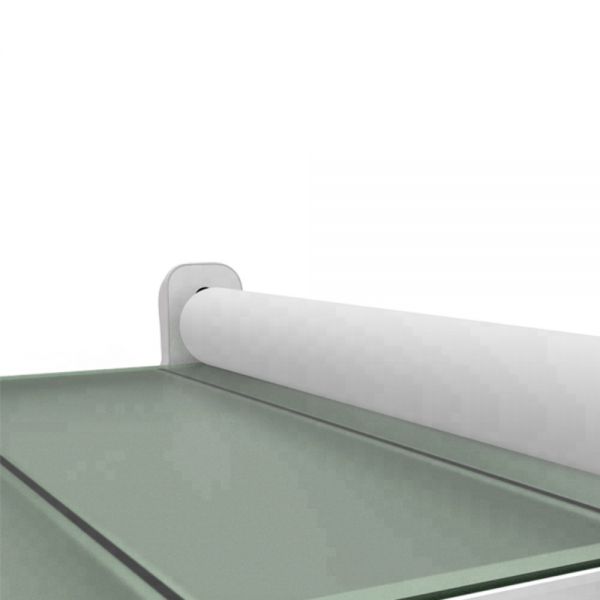

Free Gantry Design
Ensure there is nothing but the roll on the table, no longer need to pass the materials under the gantry, greatly simplify user operations.

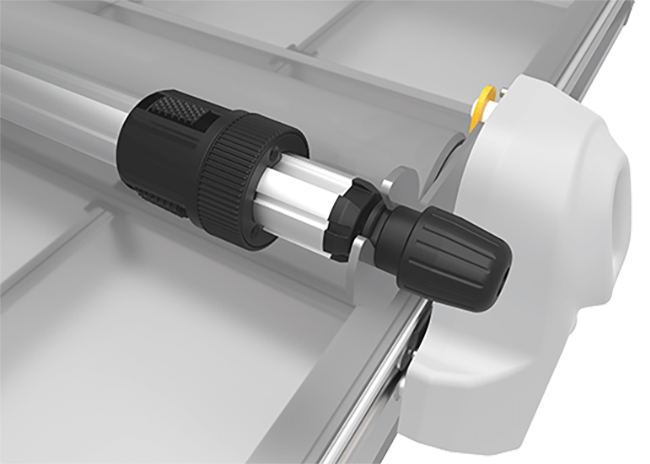

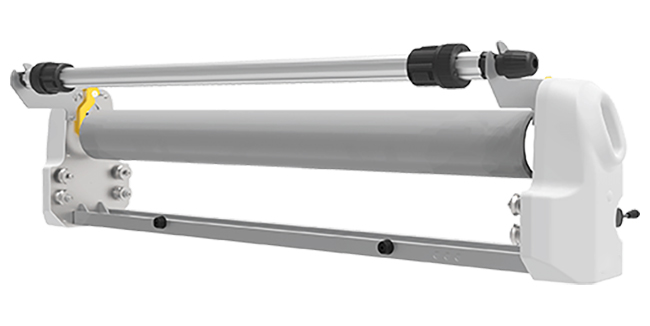

Exclusive design of mechanical tensiondevice
Invention Patent protection
Tight and fix the core by twisting the black ring outter, which can keep the whole locking continuous stable.

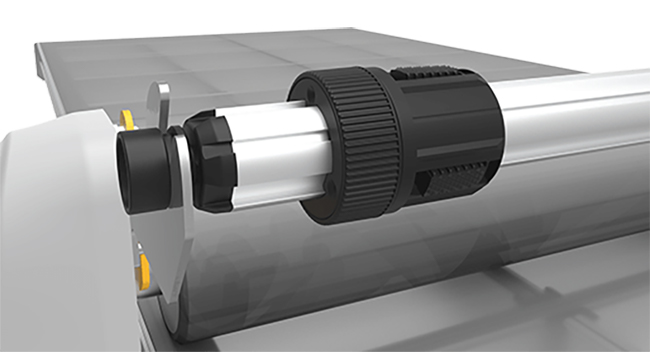

Exclusive structure on the tension Knob
We chose the rectangular spring to get the process of increasing friction more smoothly and continuously, result in a better control of materials tension.
Application:
FY1530 working table is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields.
The laminator flatbed applicator could save the time-consuming steps in Mounting, Laminating and Masking.

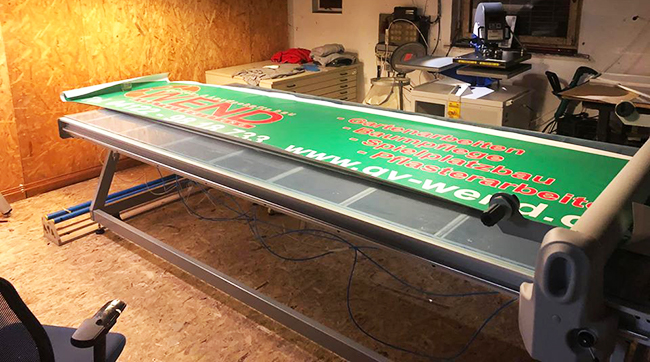

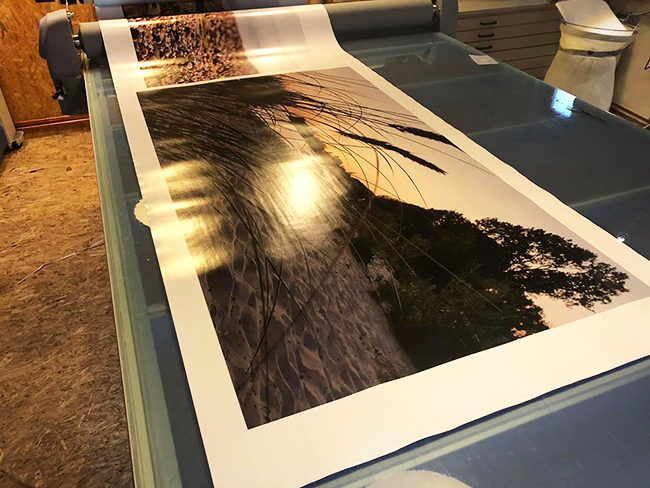

Samples:

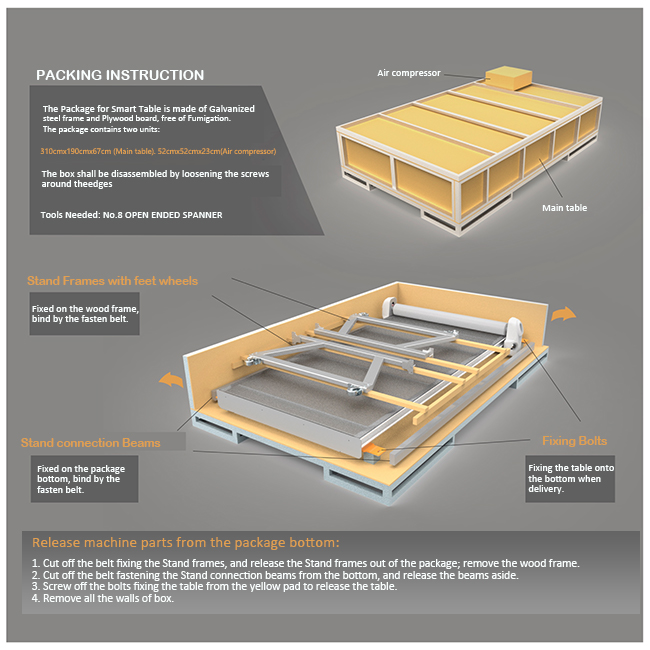

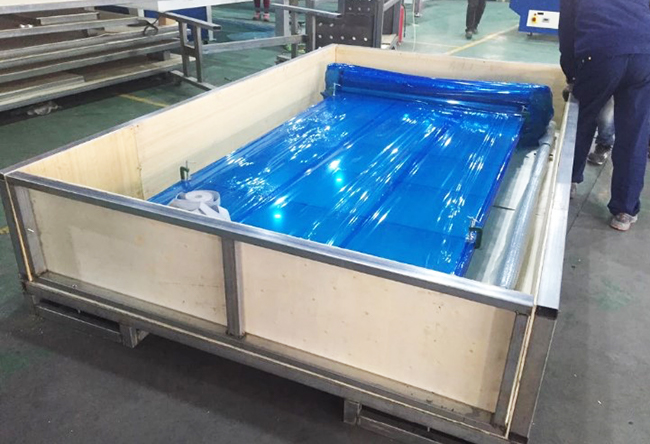

Package:
