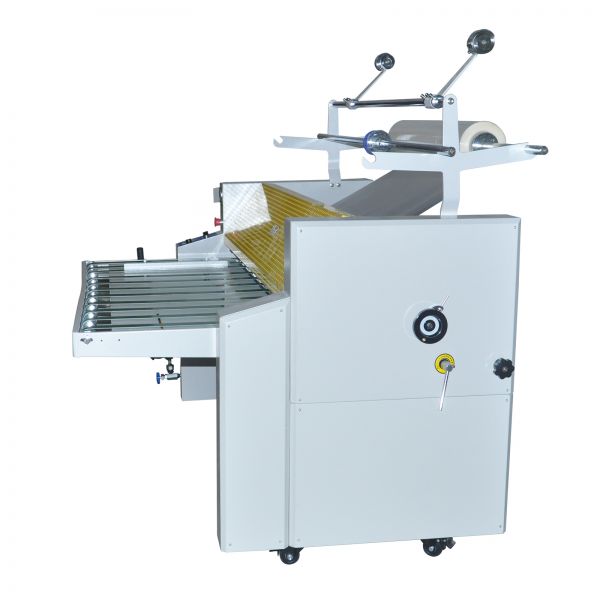

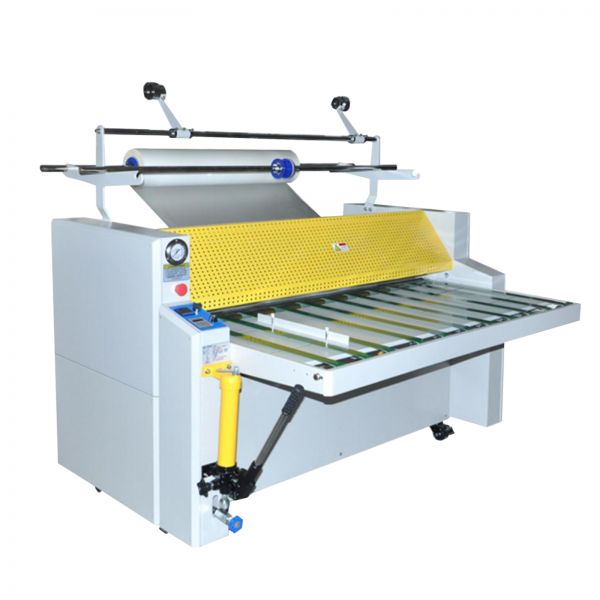

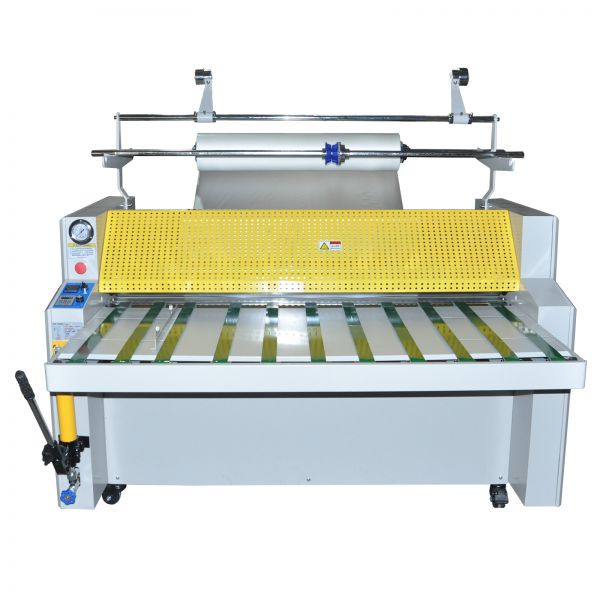

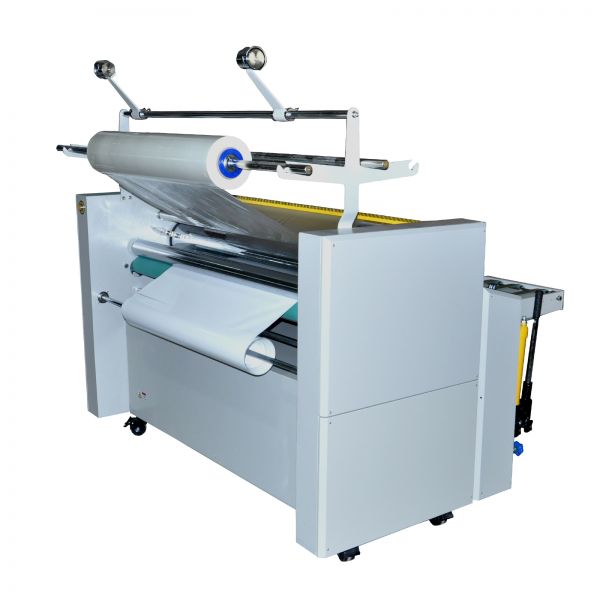

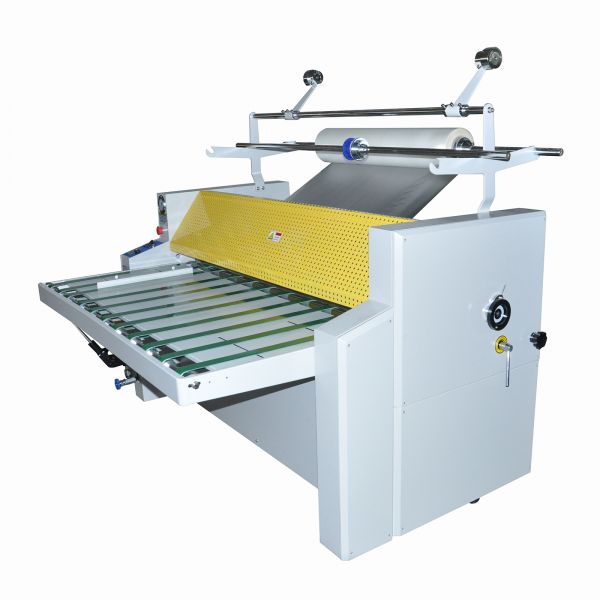

1400A Hydraulic Oil Heating Manual Large Roll Laminating Machine

Features:

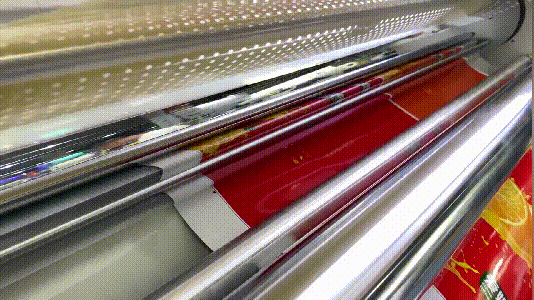

The machine is a hydraulic oil heating laminating machine.it has a stepless speed governor reducer to adjust the speedand hvdraulic pump to provide high pressure.t has double film racks, anti curl device.t can collect paper in rolls(especialyfor paper that is prone to warping, such as silver stickers).The heating roller is large-diameter and treated with highbrightness miror.The pressure roller uses imported silicon material, which is pressure resistant and high temperatureresistant and non-adhesive.
Specification:
| Model |
SMFM-1400A |
| Max paper size |
1350x999mm |
| Mini paper size |
150x150mm |
| Operating speed |
0-25m/min |
| Heating roller |
Oil heating |
| Korea silicone roller diameter |
110mm |
| Laminating temperature |
0-120°C |
| Total power |
3800W |
| Hydraulic pressure |
3-6Mpa |
| Dimensions |
1850x1500x1440mm |
This machine can be widely used in packing box ,food box ,books, drawings ,advertisements , certificates , lase glass surface and son on , the printing after the film,waterproof , durable ,clear pattern, stereo sense is strong.
