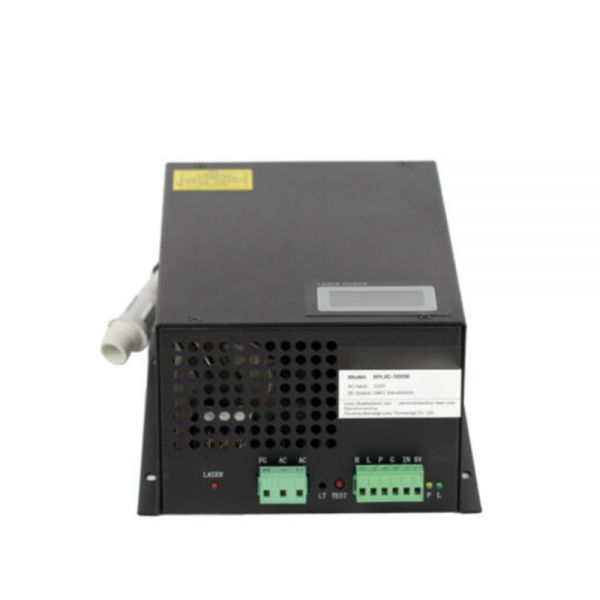

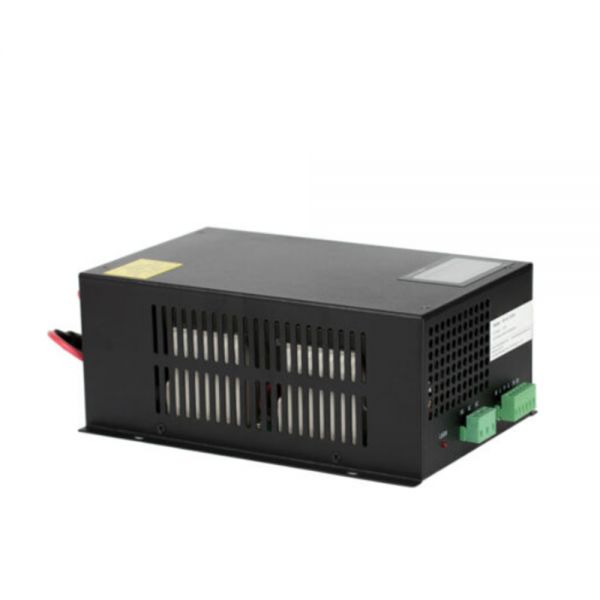

150W Power Supply with Screen for 130-150W CO2 Laser Engraving Machine, 220V

Name: 150W Power Supply with Screen for 130-150W CO2 Laser Engraving Machine, 220V
SKU: SIT-CS-PS-T150A
Price: 13860.00 THB
Availability: InStock

ราคาต่อชิ้น

THB 13,860.00

/set

ส่วนลดขายส่ง

จำนวน

ส่วนลด

ราคาต่อหน่วย

THB 13,860.00

ค่าใช้จ่ายรวม

THB 13,860.00

จำนวน

/set

รายละเอียดสินค้า

รายละเอียด

Features:

1. Input voltage: AC 220V

2. Response speed: ≤ 1mS.

3. Zero-current half-bridge soft-switching circuit. High efficiency and fast response. Match various manufacturers of laser tubes.

4. TTL level switch control: the active level can be high or low.

5. Protection switch: can be used for the detection of waterway, protect the laser

6. Laser power regulation:

(1) The output current of the laser power source is adjusted by a potentiometer.

(2) Controlled by PWM (amplitude is TTL level).

7. Open Circuit Protection Function: avoid the damageto laser power supply due to laser tube burst.

8. Operating environment: temperature (-10~40) °C, humidity: ≤85%.

Specification:

Item		SIT-CS-PS-T150A
Input	Input Voltage	AC220V (The order should be especially instructions )
	AC Frequency	47 - 440Hz
Output	Max output Voltage	34KV
	Max Output current	38mA
Efficiency		equal or more than 90% ( load down )
Time no-failure		equal or more than10000h
Response speed		equal or less than 1mS (the time from output of switch signal to 90% of initial setting current )
Voltage - resisting		Input - Output ,input - machine hull: C1500V 10mA 60s; output cathode and machine hull connection
Usage environment		Work temperature (-10 ~ 40) , Relative humidity: Equal or less than 90%
Cooling Type		The compulsive air cooling
