1700A 1620mm Full-auto Pneumatic Laminator Machine for Linerless and Liner Film,with Cutting Function
Laminator
ราคาต่อชิ้น
THB 62,162.00
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 62,162.00
ตัวเลือก
กรุณาเลือกประเภท กรุณาเลือกประเภท
ค่าใช้จ่ายรวม
THB 62,162.00
จำนวน
/set
1
1700A 1620mm Full-auto Pneumatic Laminator Machine for Linerless and Liner Film,with Cutting Function
Features:
- Unique method of putting film from the back,easily operate.
- Infrared ray control temperature more precise, do not hurt silicone roller.
- Unilateral linkage,up and down easily.
- Two laminating ways:auto/foot control.
- Stepless speed regulation.
- With reversing function.
- Uncovering backing paper and finishing products automatically.
- Only need one person to operate,save cost.
- Heating to 60°C to avoid bubble thoroughly.
- High efficiency and high yield of lamination, whole film of 50m don't bevel.
- Film and paper tightness-degree system makes the cold lamination have good tension,reduces the risk of laminating fold.
Details:
| Model Number | 1700A |
| Nominal Voltage | 220V |
| Power | 250W |
| Heating Power | 1500W |
| Frequency Respons | 50HZ |
| OperatingTemperature | 0°C -60°C |
| Scope of Suitable Film Thickness | 10-250 μm |
| Warm-up Time | 0-16/Min |
| Laminating Width | ≤1620mm |
| Laminating speed | 0-15m/Min |
| Laminating Thickness | 28mm |
| Speed Gear Controling | Variable |
| Maximum roll film OD | 200mm |
| The diameter specification of Roll film | 3 inches |
| The raise height of roller | 30mm |
| Method of pressure adjustment | Pneumatic |
| Automatically uncovering film androlling bodypaper equipment | Motor |
| Foot-propelled switch | Yes |
| Diameter of roller | 130mm |
| Weight | 260kg |
| Product Size | 2000x660x1300(mm) |
| Packing Size | 2112x690x840(mm) |

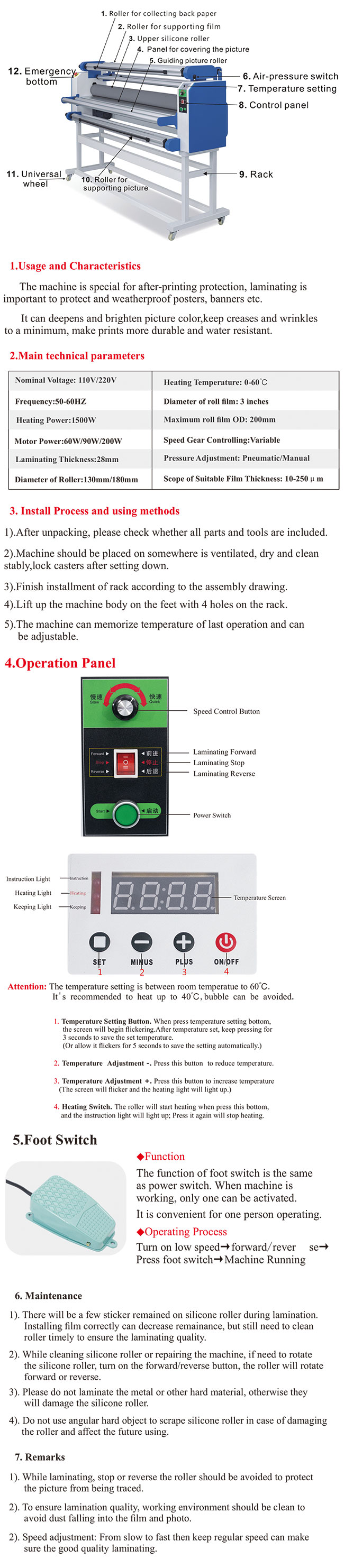

User manual:
Application:
Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.
