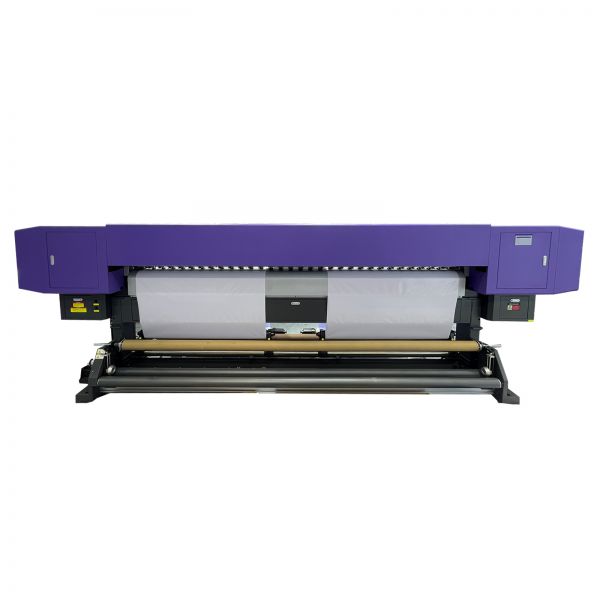

3.2m Double Rows Pinch roller UV Printer with Konica 9888H Printhead
3-head
ราคาต่อชิ้น
THB 808,323.00
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 808,323.00
ตัวเลือก
กรุณาเลือกประเภท กรุณาเลือกประเภท
ค่าใช้จ่ายรวม
THB 808,323.00
จำนวน
/set
1
3.2m Double Rows Pinch roller UV Printer with Konica 9888H Printhead
The advantages of HP-PRO PLUS 320MUV
1. Compatible with both solvent printer and eco solvent printer's take up and feeding constructions, it can meet the printing needs of Gloss coating and Matte coating, ensuring the accuracy and consistency of the image progression;
2. Compared to four-groove roller machines, the loading and unloading process is convenient and flexible, reducing the frequency of operators changing materials and the workload, reducing waste of leftover materials and material scrap, and lowering production costs;
3. The entire machine has a low cost, enabling customers to quickly connect to various small orders for production; energy-saving and 50% less power consumption;
4. Add more quantity of pinch roll assemblies; larger contact area, balanced pressure, suitable for various printing materials;
5. Water-cooled LED lights and water-cooled circulation platforms, precise temperature control, capable of providing stable printing for heat-sensitive materials such as vehicle stickers for a long time;
6. Optimized design supports dual-roll printing mode, one machine is equivalent to two machines in use. Compared to traditional roller UV roll material equipment, it saves at least 1 meter of material head each time.
Specification:
| Printhead | 6pcs KM9888H | |
| Print speed | 4pass 480*1200dpi Gloss coating |
57 m²/h |
| 4pass 480*1200dpi Color-white-color |
19 m²/h | |
| 6pass 480*1800dpi Matte coating |
38 m²/h | |
| Color configuration | CMYK+W/CMYK+LCLM (OPTION) | |
| Drop volume | 5/10/15PL | |
| Drying system | Solidify UV LED | |
| Print width | 3300mm | |
| Rip software | Photo Print | |
| Electricity requirement | 220V/60A/50HZ | |
| Machine max power | 3500W | |
| Printing system | 3000W | |
| Ink system | Negative pressure ink system | |
| Brand of board | BYHX | |
| Package size | 5600*760*1260mm(L*W*H) | |
| Machine size | 4950*940*1600mm(L*W*H) | |
| GW | 1300kg | |
| NW | 1200kg | |
| Configuration | Touch Screen & computer bracket & Segmented intelligent infrared heating system & MAGLEV & THK linear guide rail | |
Details:
Application:
