3.3m Liquid Laminating Machine Suitable for Tarpaulin/Advertising Materials
ราคาต่อชิ้น
THB 154,310.00
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 154,310.00
ค่าใช้จ่ายรวม
THB 154,310.00
จำนวน
/ชิ้น
1
3.3m Liquid Laminating Machine Suitable for Tarpaulin/Advertising Materials
Advantages of UV Curable Liquid Coating:
Low cost
- Varnish comsumption: 5-8g/m²
- Low electric comsuption 5kw
- UV lamp 15000 hours life span
Good ductility
soft & tough, easy application to advertising vehicle wraps and other roll material
Eco-friendly
- no VOCs (Valatile Organic Chemicals)
- no white pollution caused by PVC film
No Odor
Only a little smell of epoxy resin.
Coating layer covers the odor of glue and solvent ink thouroughly
Physical advantages
- adjustable glossiness: max 90°-92°
- scratch resistant : 2000 times rubbing test
- chemical resistant :20 times alcohol wipe
- excellent adhesion: never pulled off
- waterproof :resistant to pouring rain
High yield rates
1-12 m/min coating speed
UV instant curing reduce production downtime
Low scrap rates
- no format limitation on liquid coating film
- no leading and ending substrate waste
High temperature resistant
no qualkity change under 48 hours heat tolerance test at +68℃
Low temperature resistant
no qualkity change under 48 hours cold tolerance test at -20℃
No Hazards
Passing SGS test of EU Restriction of Hazardous Substances
Durabiliy
500 hours SGS ageing test
Long storage time
1 year at room temperature if not exposed under UV curing light
Specification:
| Exterior Dimensions | 4050x1650x1180mm |
| Maximum Coating Size | 3300mm |
| Maximum Winding Roll Diameter | 40cm |
| Coating Thickness | 8-12um |
| Coating Speed | 1-5m/min |
| Equipment Weight | 1.2t |
| Applicable Power Supply | 380V |
| Total Machine Power | 7.5KW |
| Curing Method | LED cold light source curing, instant on/off, no preheating required |
| LED Life Expectancy | 15000hours |
| Control System | PLC with Touch Screen |
| Lifting Mode | Pneumatic Cylinder Lifting |

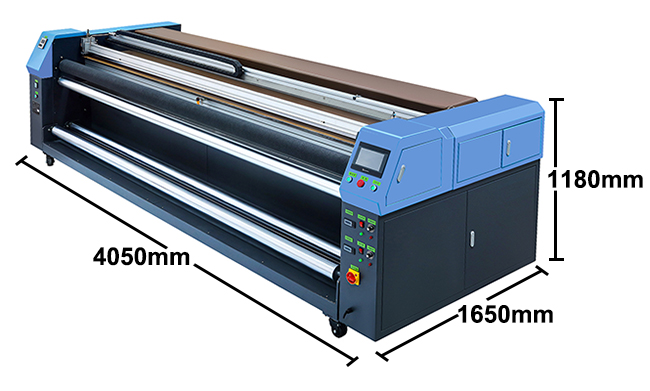

Product size:
Test of liquid coating

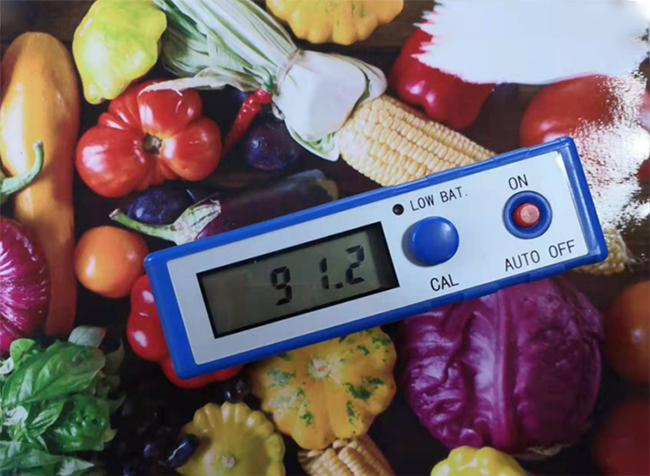

Detected by photometer: liquid coating brightness is as high as 91.2°

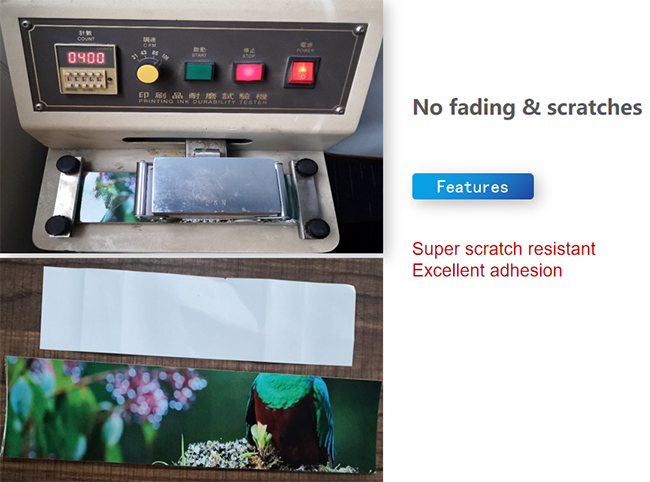

Abrasion test:
The test method is rubbing back and forth 2000 times with a weight of 4 pounds/1.8kg to observe the scratch resistance strength of the liquid coating
Common problems of cold laminating film
- Large loss and high scrap rate
During production, due to the various size of the substrate, and the inconvenience of sticking, the large amount of waste are generated during film coating, and the scrap rate is high as 15%.
- Inconvenient sticking, strong smell
The poor ductility of the cold laminating film leads to inconvenience and difficulty in application. Inkjet printing inks and adhesive materials have a heavy odor, and the odor is difficult to volatilize in a confined space.
- Crimped edges, black edges, wrinkles, bubbles
The film may easily peel off above +40°C and will easily break below -5°C. Curling, shrinkage, breakage, bubbles and wrinkles happen easily after a short period of time.
| Comparison | PVC laminating film(×) | UV coating(√) |
| Cost | Due to the different sizes of the material, cold laminated film requires a larger inventory, and the scrap rate is close to 15% | Coating on substrates of various formats only needs 6 to 10 grams per square meter, which can reduce waste to 2% |
| Application | Poor ductility, inconvenient to use on bus car trailer van sticker | Good ductility and easy to use on bus car trailer van sticker |
| Quality | Prone to shrinkage, breakage, separation and wrinkles | No break, no yellowing, scratch resistance (Aging test report, scratch test) |
| Color consistency | Low transmittance of laminating film will darken printing color | It has high light transmittance and good color consistency. The surface brightness of the coating can reach 90° |
| Environmental friendly | white pollution, air pollution,water and soil pollution. it takes 30 years to decompose. | The coating and the substrate are better combined, and there is no volatile organic compounds. |
| Human hazards | Above 65°C, the laminated PVC film will produce harmful substances and gases such as lead, tin, and chlorine. | No harm to human body (Heavy metal and halogen test report) |
| Smell | Heavy odor: the odor is difficult to dissipate in a confined space. | Only a little smell of epoxy resin. 1% solvents solves the problem of volatility and irritation. |
Material that cannot be coated by cold laminating film
UV picture, leather, tablecloth, knife scraping cloth, wallpaper, wood grain paper, etc. the surface cannot be protected by cold laminating film from color ink fixation and anti-scratch tratment, After a period of time, the picture will be decolorized and the texture is poor.
Liquid coating replace cold laminating film
What is liquid coating ?

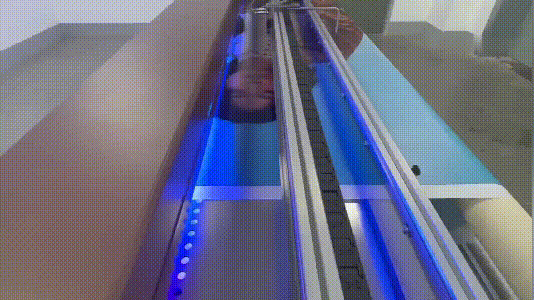

- Liquid coating cured instantly by Kana LED UV instant curing coating machine forms a glossy or matte protective film on the surface of soft roll inkjet printing product.
- Coating is high temperature and low temperature resistant (-20°C to 68 °C), anti-yellowing, anti-fracture, scratch-resistant, friction-resistant, environmental friendly, pollution free, safe and energy saving(5kw).
- Under real outdoor test, Kana coating can enduring at least 2 years of sun burning, UV light, water pouring.
Physical characteristics of liquid coating
Due to the limitation of the cold laminating film, micro-bubbles (marked in red) are prone to appear on the surface of the product, and the surface of the liquid coating is flat without defects.
