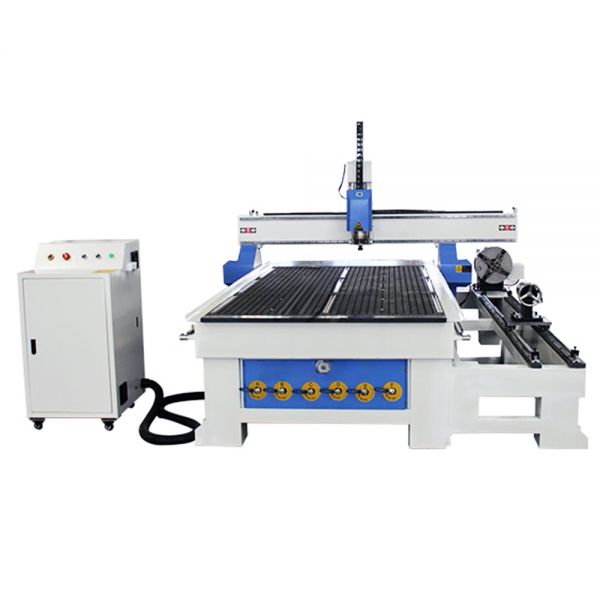

Features:
1. Strong welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.
2. Square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.
Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost.
Z- axis with precision ball screw, high precision and more durable.
3. 3.5kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

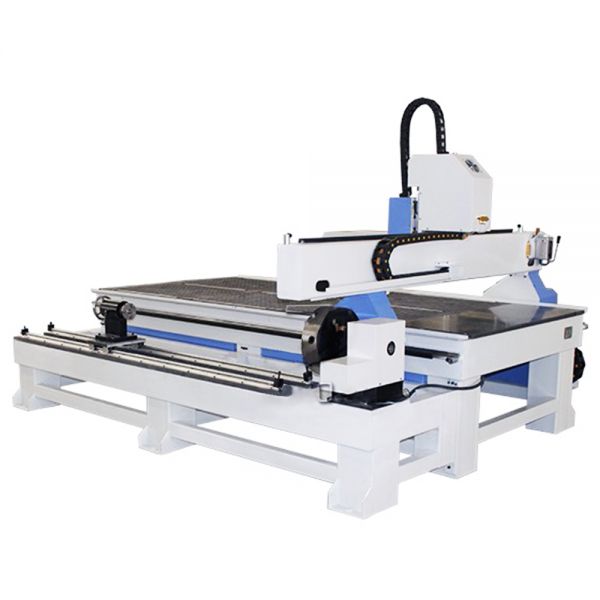

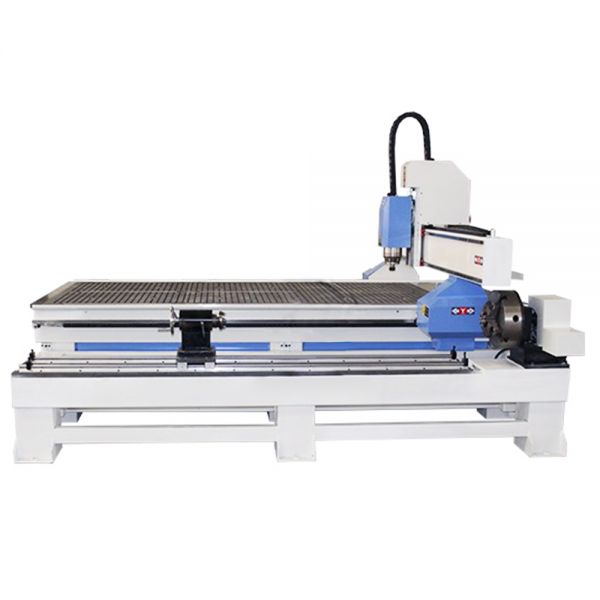

4. Extended gantry & independent removable rotary axis holder, with diameter 300mm, working length 2500mm, cylinder processing is in a special zone, each time, no need put the heavy rotary axis on the working table, saving labor and improving working efficiency.
5. Vacuum adsorption system with 5.5kw air cooling vacuum pump, vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time.
6. Auto tool calibration, more convenient for each time Z-axis 0 point setting.
Applications:
Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc.
