500w Fiber Laser Welding Machine for Fine Metal Channel Letter Making
Introduction:

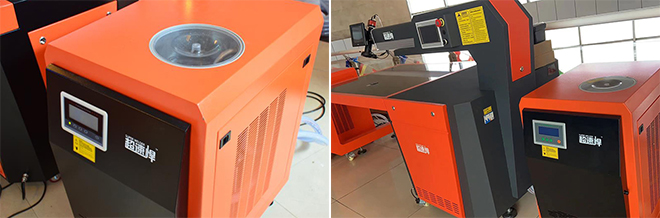

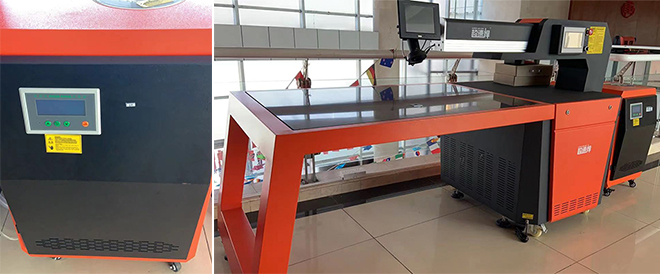

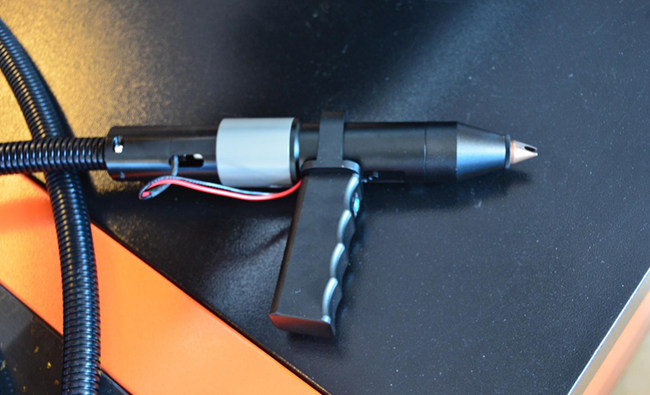

Main parts: 3p water chiller+marble table+laser arm with power case.
This model is 500 watt fiber laser welding machine with 5 meters fiber cable. It can weld thicker metal sheet like stainless steel, galvanized steel etc.
Feature:
1. Applicable materials: stainless steel, steel plate, iron plate, and other metal.
2. Capacitance: large capacity and lasting constant energy storage.

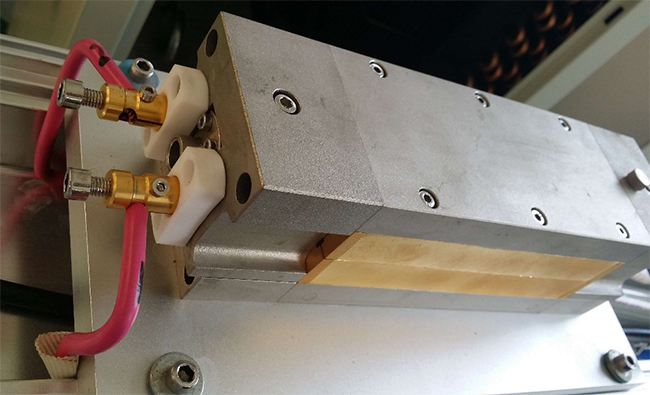

3. Equipped with two xenon lamps, max laser power is near 600W.
4. Easy to operate, no technical requirements for the operator.
5. No black spot on the surface, without surface treatment.
Specification:
| Max laser power | 500w |
| Laer wave length | 1064nm |
| Mono pulse max power | 110J |
| Laser welding depth | 0.5-2.0mm |
| Pulse width | 0.1-20ms |
| Laser spot size adjusting range | 0.2-2mm |
| Laser welding | 1-50HZ |
| Power need | AC220-240V 50/60Hz/AC380-50/60Hz |
| Whole power consumption | 4.5KW/8KW |
| Standard configuration working table | 1700x1100mm |
| Guarantee | 1 year |
| Consumable | Xenon Lamps, Thimble, ProtectingLens, Foot Switch |
| Name | Quantity/piece | Name | Quantity/piece |
| Cross screwdriver | 1 | Thread seal tape | 1 |
| Straight screwdriver | 1 | Quoit | 4 |
| Hexagonal Socket | 5 | Thimble | 2 |
| Photographic paper | 1 |

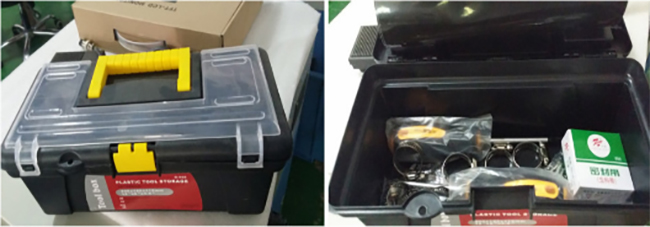

Tool Kit:
Main Consumption: Protection lens, Xenon lamp, Thimble.

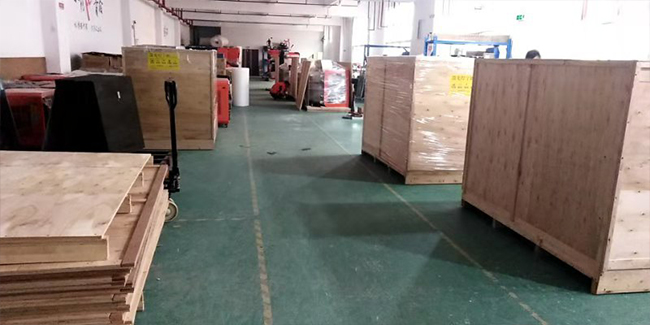

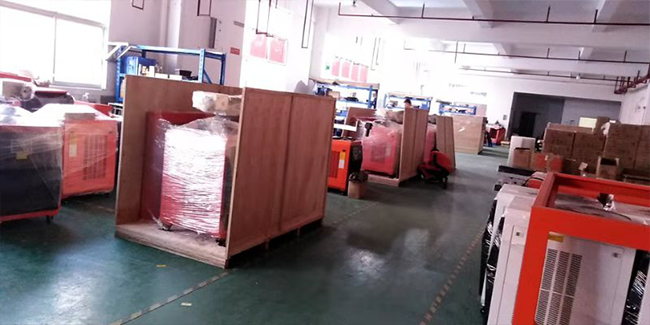

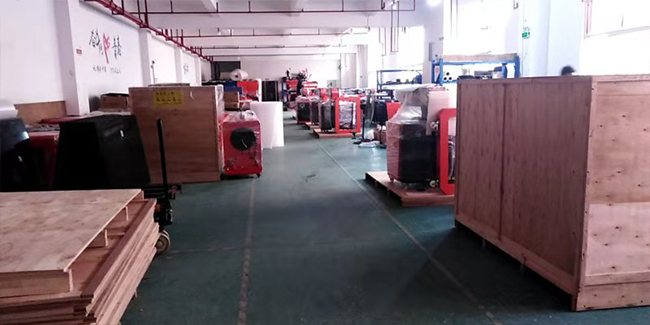

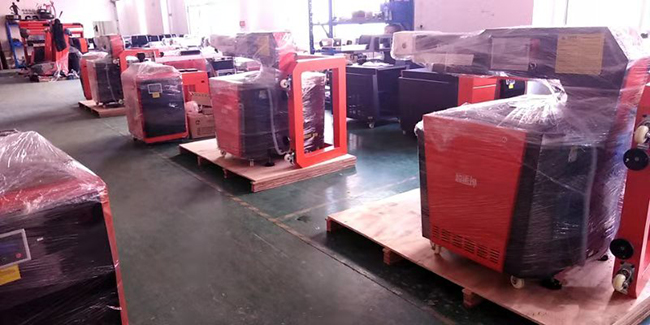

Factory:
