6090 Flatbed Digital Cutting Machine
Features:
 |
 |

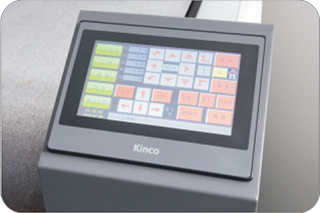

| Control System lndependent research and development ofhuman-machine interface operating system,humanized design, intelligent recognition ofknife cutting, fast capture of cutting targets. |

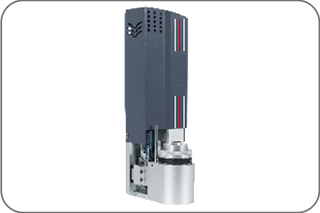

Head design Use convenient replaceable head design,according to actual needs of replacement,with different functions tools head. |
 |
 |
| Communication interface The data interface is the gigabit network interface, can realize the long-range upgradingand maintenance, high speed and far distancetransmission. |

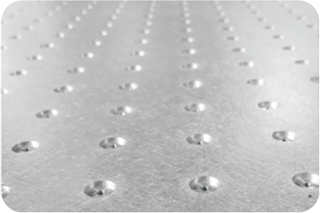

Countertop design Adopting advanced and mature rolling tabledesign, the plane width can be customized,the theoretical cutting length is unlimited; thevacuum suction design can select 8 suctionareas by software. |
 |
 |

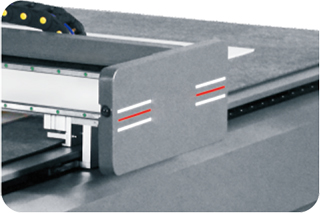

| Safety anti-collision system Safety anti-collision system to ensure thesafety of operators. |

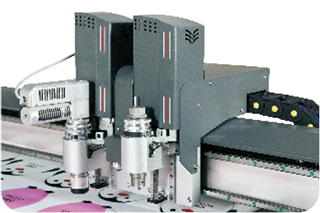

Full modular combination Oscillating tool + ordinary tool or v-cut tool can beSwitched and achieved to cut soft material freely. |
Parameters:
| Buffer capacity | 2GB |
| Normal power | 3.5kw |
| Automatic feeding | YES |
| Moving speed | 800-1500mm/s |
| Cutting speed | 60-1200mm/s(according to different cutting materials) |
| Cutting thickness | 30mm(More than 30mm can be customized) |
| Material Fixed | Vacuum System |

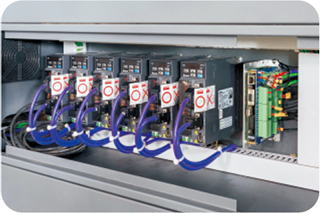

| Transmission system | lmport (Digital servo motor、Linear guide、Synchronous belt、Screw、Gear) |
| Multi-function | Tools can be easily changed, with oscillating, non-oscillating tool, rotary, milling, kiss-cut, and creasing tooletc.. Positioning with cursor and optional CCD industrial camera. |
| Voltage | 220V± 10% |
| Working Range | 600x900 |
| Max feeding width | 600 |
| Product size | 1280x2443x1466mm |
| Packing Size | 1180x2743x1266mm |
| Gross Weight | 230GK |
| Cutting tolerance | ±0.05mm |
| Servo resolution | ±0.01mm |
| Transmission interface | Ethernet |
| Network transmission distance | ≤350m |

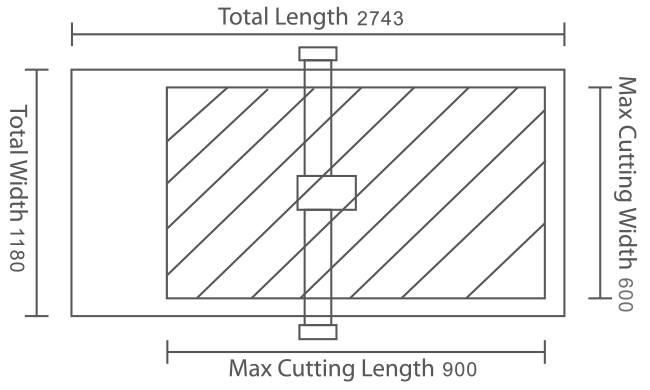

Dimensional drawing:

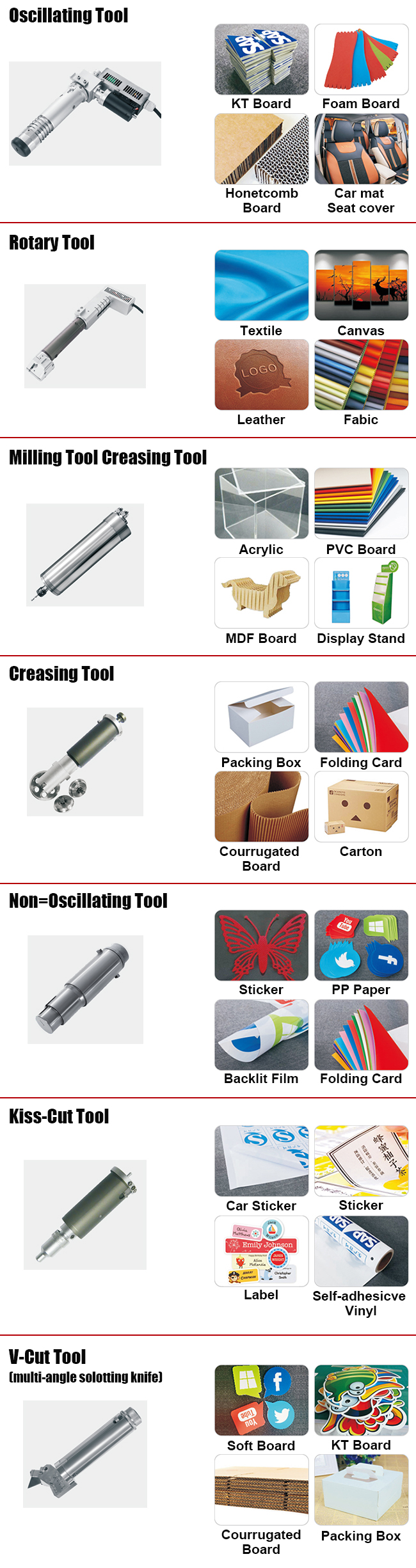

Optional Tools and Application:
