920H Fully Automatic Suction Feed Laminating machine,Oil Heating System

Name: 920H Fully Automatic Suction Feed Laminating machine,Oil Heating System
SKU: SIT-SMFM-920H
Price: 605107.92 THB
Availability: InStock

ราคาต่อชิ้น

THB 605,107.92

/set

ส่วนลดขายส่ง

จำนวน

ส่วนลด

ราคาต่อหน่วย

THB 605,107.92

ค่าใช้จ่ายรวม

THB 605,107.92

จำนวน

/set

รายละเอียดสินค้า

รายละเอียด

920H Fully Automatic Suction Feed Laminating Machine, Oil Heating System

The machine is a fully automatic hydraulic oil heating laminating machine. It has a computer touch screen to control and aPLC control system.Research and develop the Feeder dependently which can feed paper and overlap automaticallyEnergy-saving inverter control gear motor to adjust speed. The hydraulic pump can provide and release pressureautomatically. Large paper feeding board can up and down automatically. It has double fim racks. anti curl device.lt cancut off paper and automatically and collect papers orderly.The heating roller is treated with high brightness mirror. Theoressure roller uses imported silicon material, which is pressure resistant and high temperature resistant and non-adhesive.

Specification:

Model	920H
Max paper size	890x1040mm
Mini paper size	300x200mm
Max height of paper	45cm
Max paper thickness	400gsm
Heating roller	0il heating
Laminating temperature	60-120°C
Pressure	3-8Mpa
Operating speed	0-25m/min
Korea silicone roller diameter	240mm
Total power	4000W
Dimensions(LxWxH )	2.35x01.27x1.4m
Voltage	220V/50Hz
Feeding mode	Feida feeding
Auto collect paper	yes
Automatic cut-off	yes
Slitting function	yes
Anti-curl function	yes
Rolling-up after laminating	yes

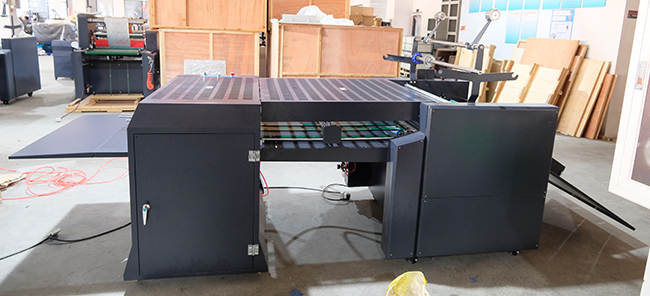

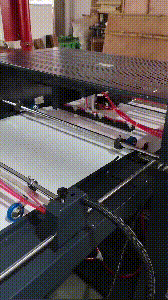

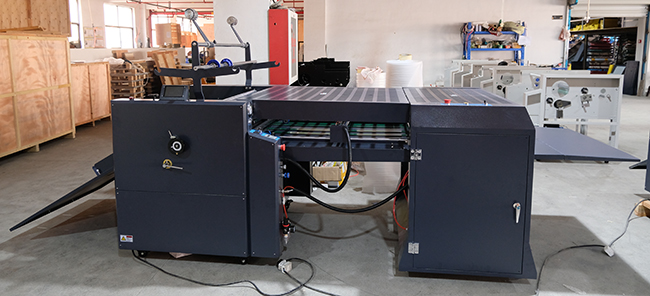

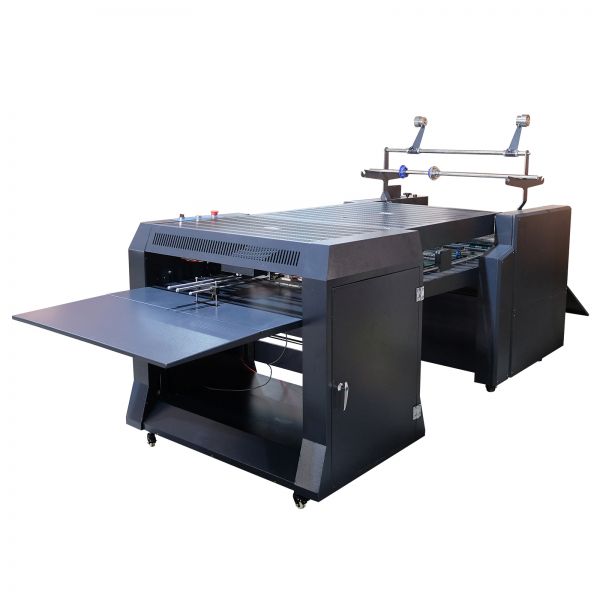

Photos:

Application:

This machine can be widely used in packing box ,food box ,books, drawings ,advertisements , certificates , lase glass surface and son on , the printing after the film,waterproof , durable ,clear pattern, stereo sense is strong.

Certification:
