ราคาต่อชิ้น
THB 55,000.00
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1+
0%
THB 55,000.00
ตัวเลือก
กรุณาเลือกประเภท กรุณาเลือกประเภท
ค่าใช้จ่ายรวม
THB 55,000.00
จำนวน
/set
1

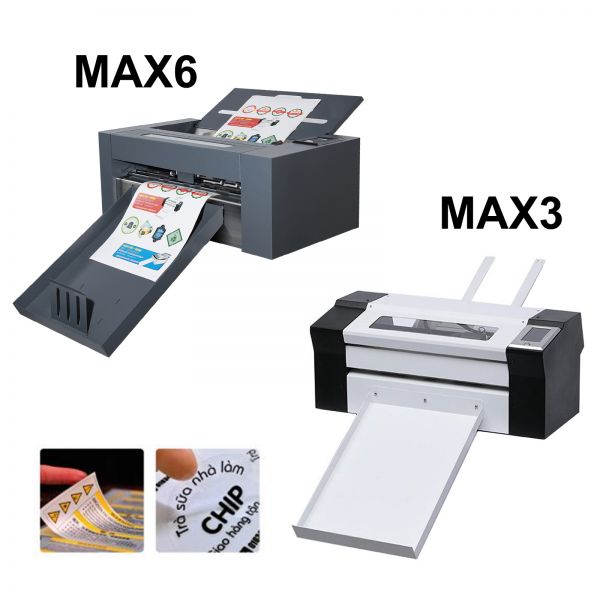

MAX3 with stepper motor, only one cutting head, only cutting function, cutting speed of 700mm/s

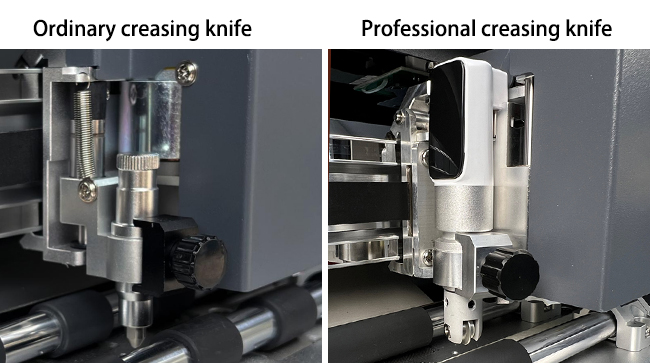

MAX6 with servo motor, 2 cutting heads, capable of cutting and creasing, equipped with professional creasing knife for better creasing effect, cutting speed 1600mm/s
Features:

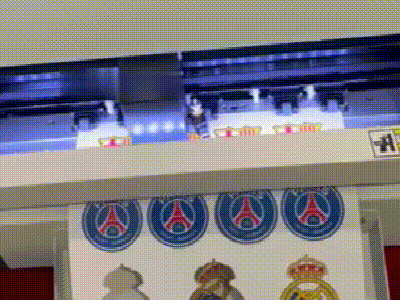

Real CCD detection system,automatically recognize mark point in different colors and cut in high precision.
Once to load 1-150pcs material,auto feeding and no stuck,suits for small batch production.

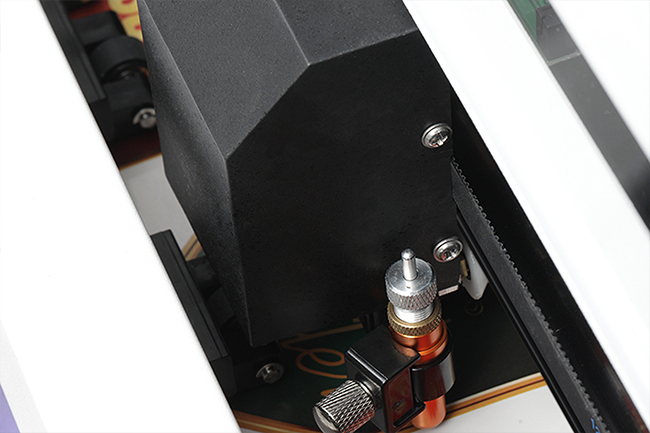

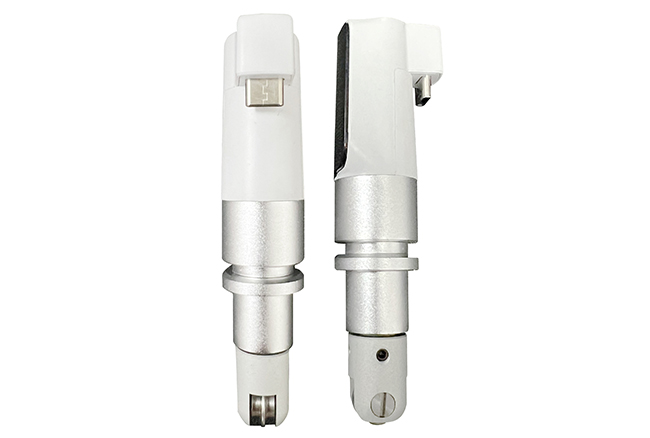

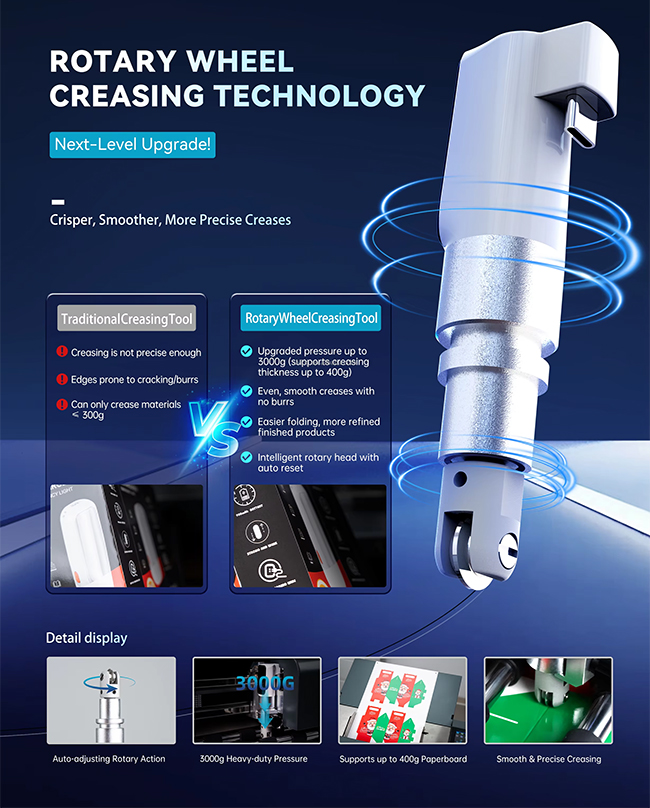

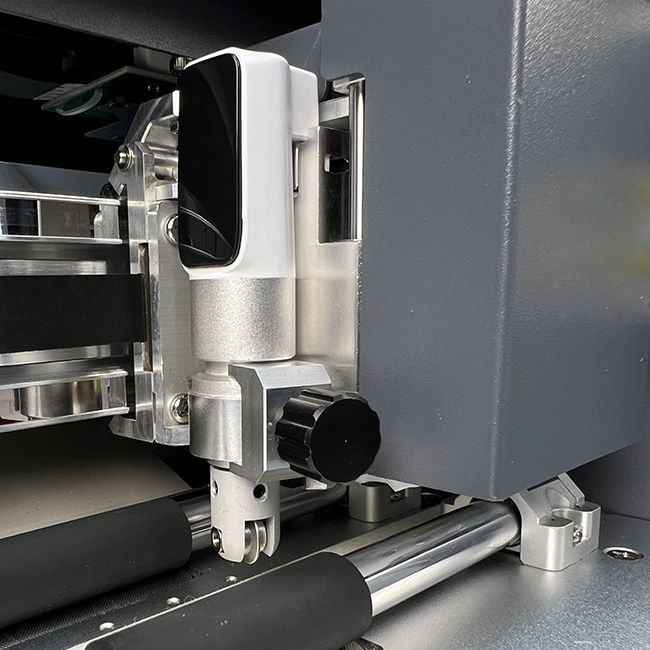

Double heads cutting machine,professional with wheel creasing tool, crease and cutting at once

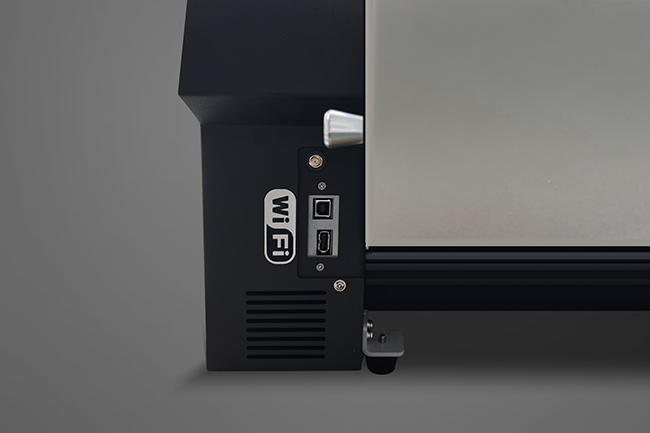

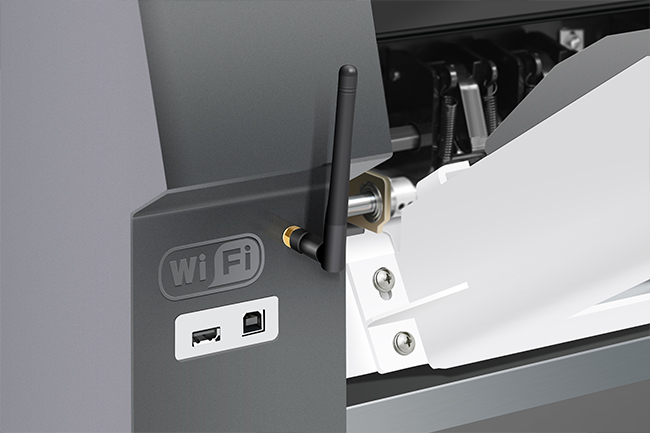

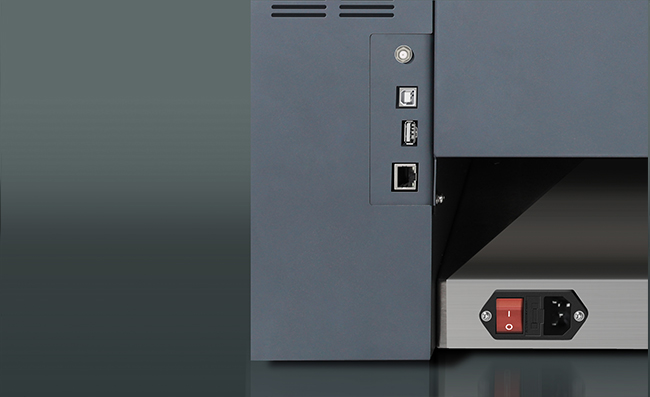

Multi interface conneotions,USB,U disk,WiFi, networkcable,offline
Different design cutting with QR code.Auto acquiring cutting files in different design.

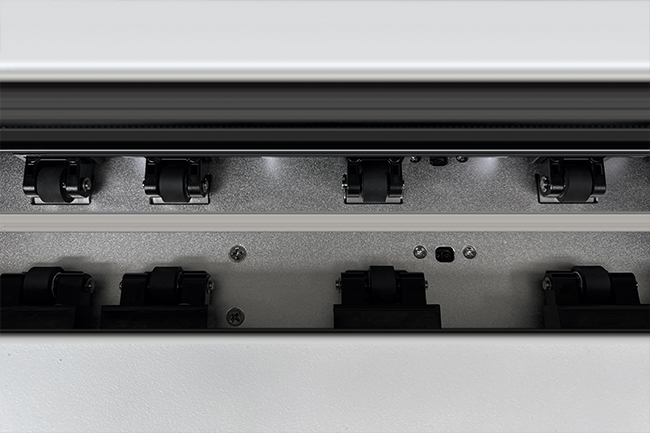

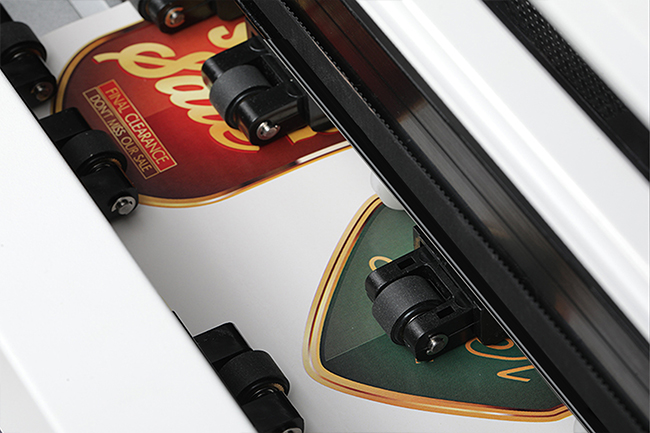

Dualpinch rolers,properly using and saving cutting material.

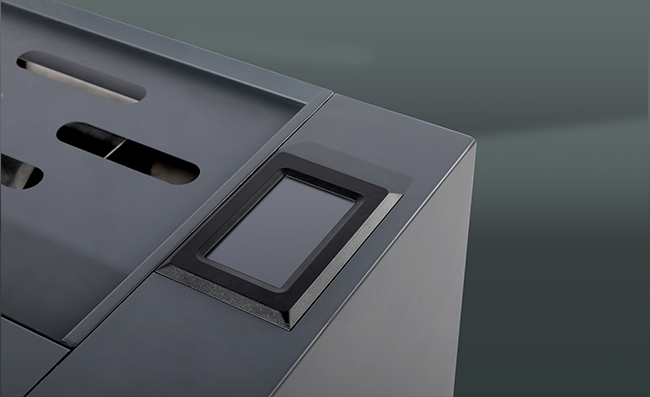

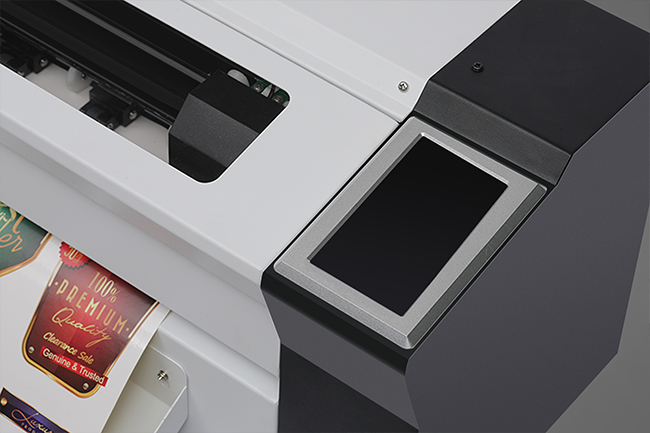

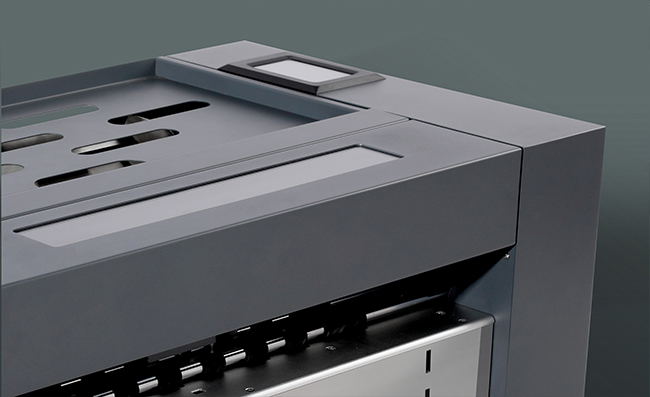

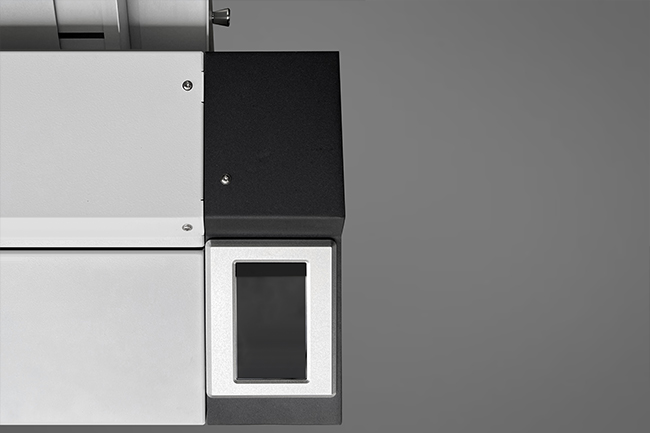

4.3 inch sensitive LCD touch soreen,Conveniently operation.
Specification:
| Model | MAX3 | MAX6 |
| Max media width | 340mm | 370mm |
| Max cutting width | 330 mm | 360mm |
| Number of blade heads | 1 | 2 |
| Max QTY. of Auto Feeding | 1-150pieces | |
| Cutting Prescision | 0.01mm | |
| Repeat prescision | 0.82mm | |
| Locate mode | CCD camera(automatic contour cutting) | |
| Max Cutting speed | 700mm/s | 1600mm/s |
| Max Force | 2000g | left head/3000g right head/800g |
| Power Working | <100W | |
| Cutting tools/tools | only cutting | Crease+incision,kiss cut+die-cutting |
| Paper thickness | not more than 1mm/250gsm | not more than 1mm/400gsm |
| Connector Interface | U-disk/WIFl/USB Cable | |
| Software | CameraCut/CorelDRAW/Adobe Illustratorr | |
| Environment | 5°C-+35°C | |

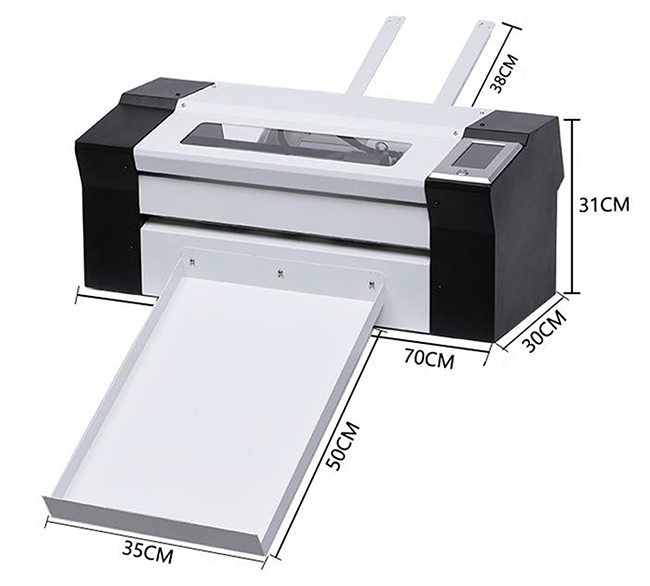

| Packing size (Wooden) | 820*625*480mm | 900*570*550mm |
| Packing G.W. | 48Kg | 52Kg |
Details:

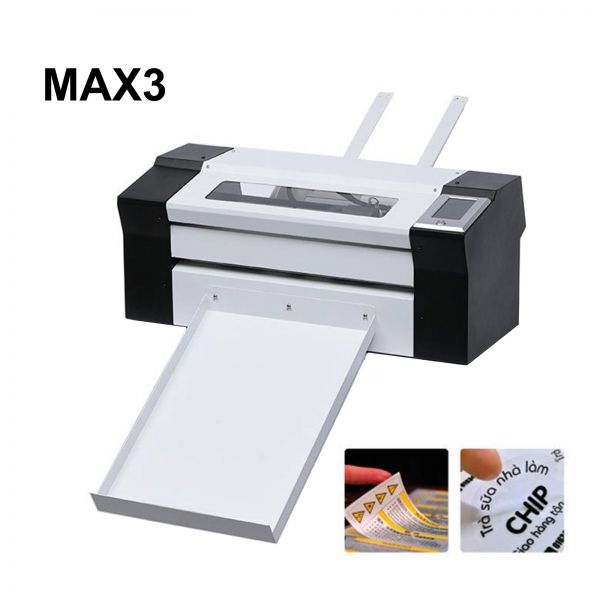

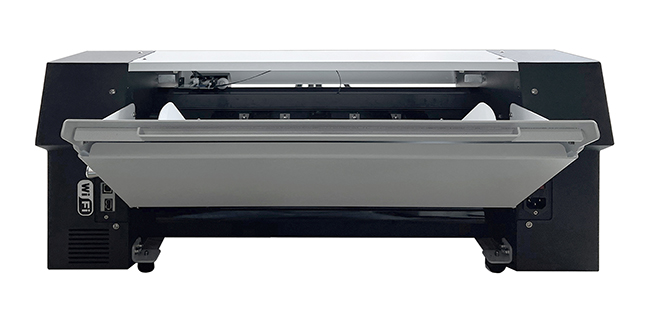

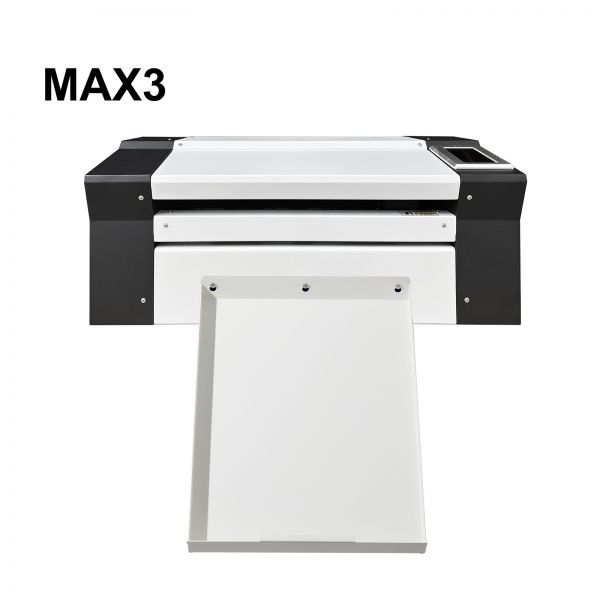

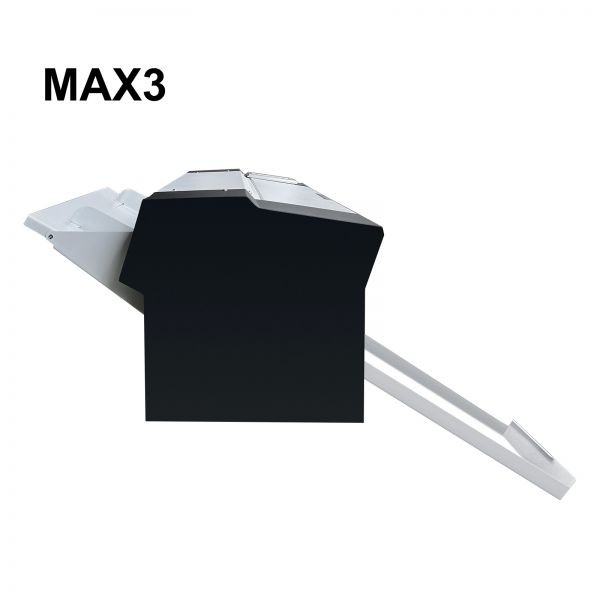

MAX3:

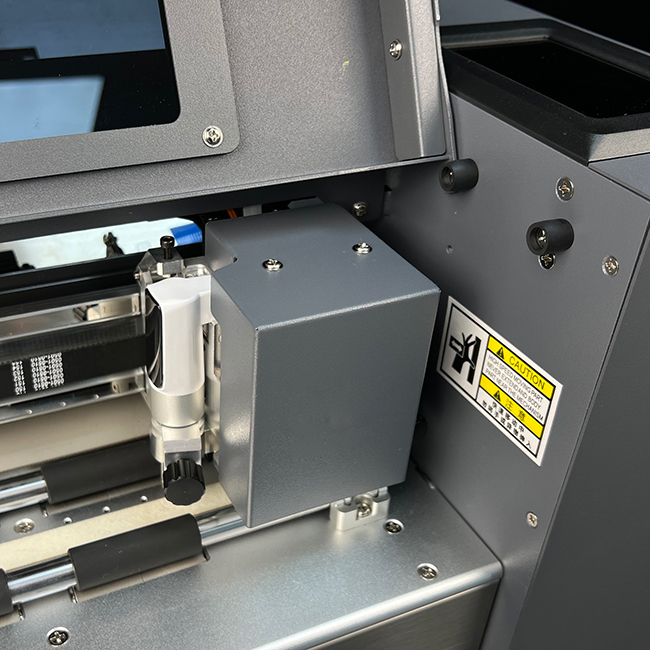

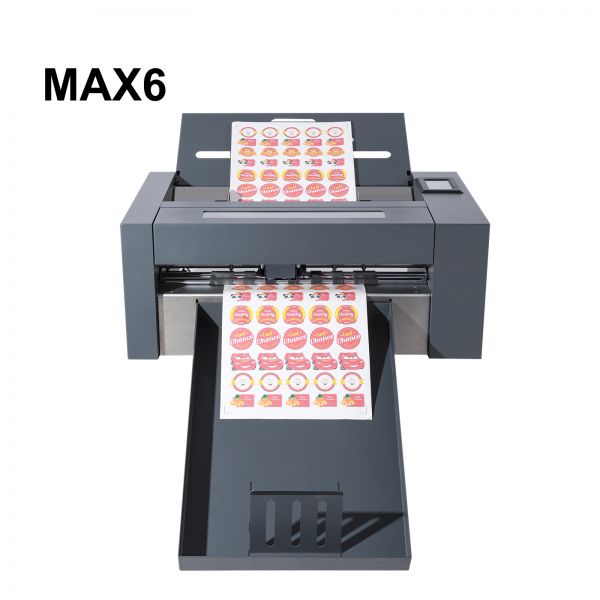

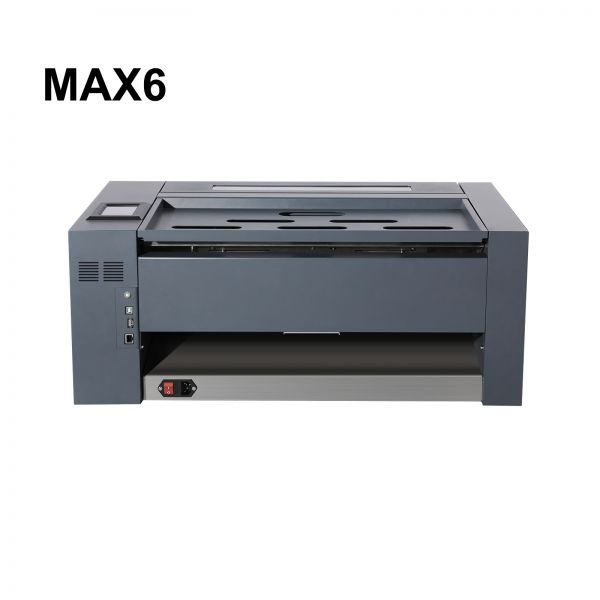

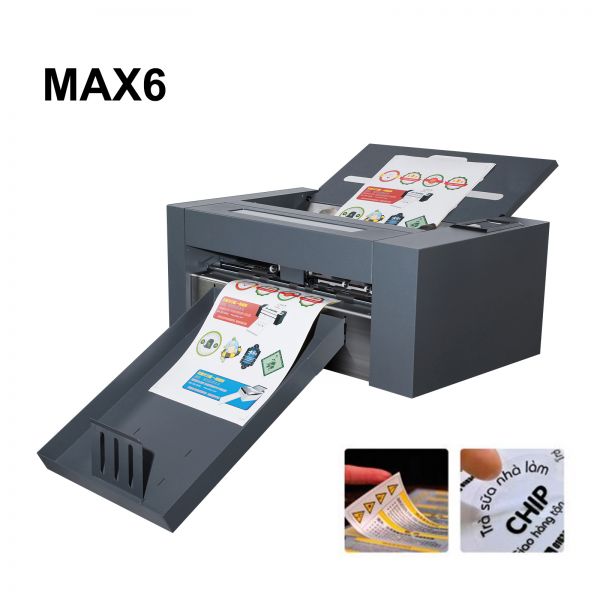

MAX6:

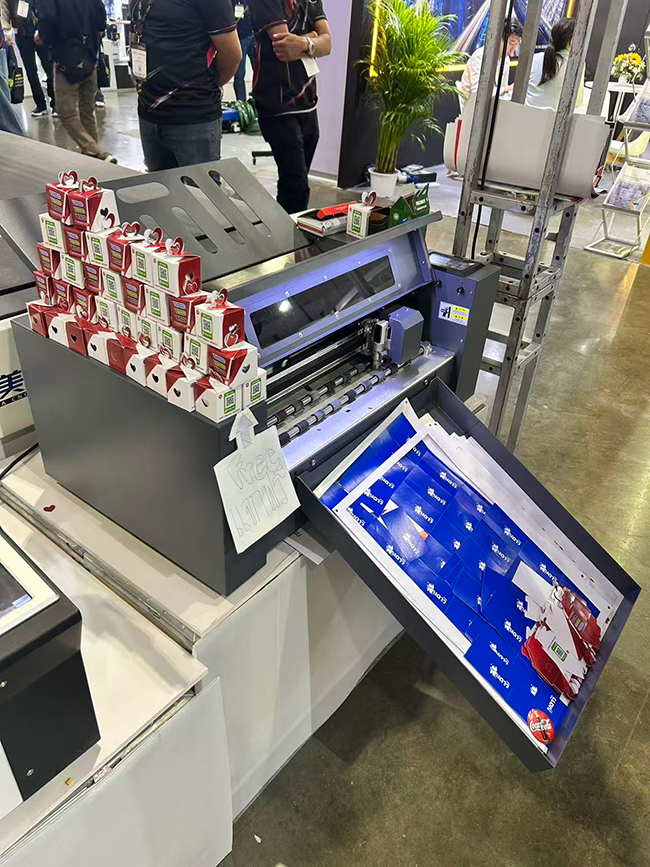

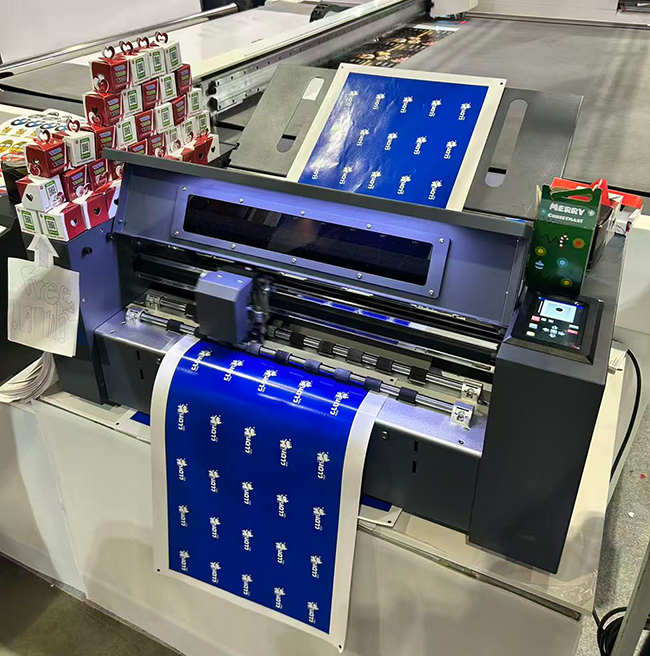

Application:
