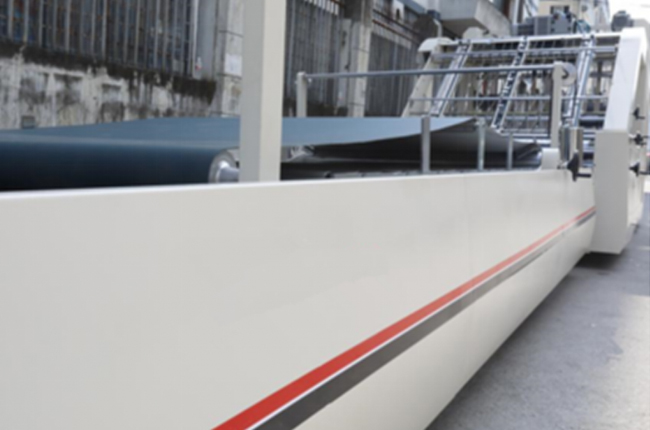

Automatic Flute Corrugated Paper Laminating Machine
This machine suitable for color top sheet and corrugated paper laminating.
This machine use bottom sheet automatic sent by suction device.Top paper adopt scale continuous paper feeding,top sheet left and right all course correction,unique front gauge positioning way to insure the bottom paper never exceed.Easy operation and maintenance.
Features:
1. High precision high speed automatic feeder,feeding smoothly.
Strengthening type paper feeding device,nozzle angle is adjustable,suitable for different type of papers.
2. With double teeth belt drive and tension device ensure the drive accurate,stable and low noisy.
3. Top sheet left and right all course correction,error correction for about top paper stack and feeding process;
4. Single pressure regulation,to ensure that the two side pressure be same
With the display ofdial gauga,it is easy to adjust when change the paper
5. Designed in the accordance with European CE requirement,ensure machine stability ,high efficiency and low failure.Using man-machine interface and PLC combination,display all the information,such as warning,error detect,failures,and operating speed,etc on the screen at a glance.
6. Floating design of press,no need to adjust the pressure heightening design,smooth working for thick corrugated paperboard.
Specification:
| Model |
FM-1300D |
| Max sheet size |
1300*1250mm |
| Min sheet size |
370*370mm |
| Top sheet thickness |
150-600g/m² |
| Bottom paper sheet thickness |
0.5-10mm |

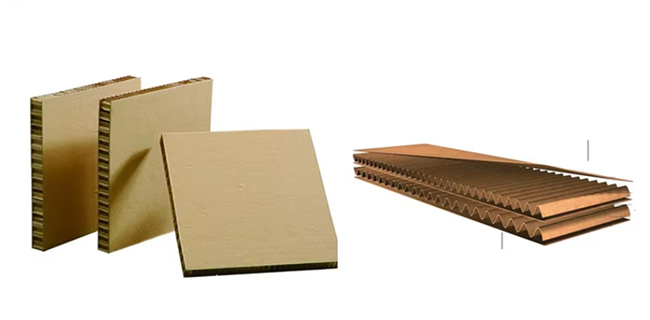

| Bottom corrugated sheet thickness(mm) |
A/ B/ C/ E/ F/ Corrugated paper/ Industrial paperboard/ Corrugated board |
| Max speed |
7000 sheet/hour |
| Fitting precision |
±1mm |
| Total power |
13kw |
| Measurement |
11500*2200*2600mm |
| Weight |
5ton |
| Cardboard to cardboard |
bottom thickness(g/m²) |
| Max sheet size |
1000*700mm |
≥400g |
| 700*400mm |
≥400g |
| Min sheet size |
380*380 |
≥350g |
Details:

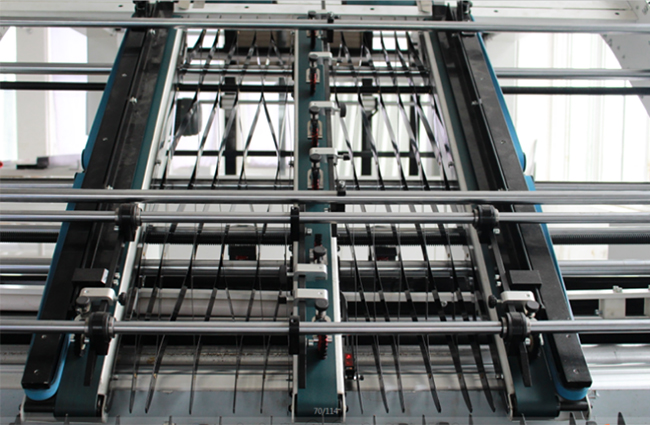

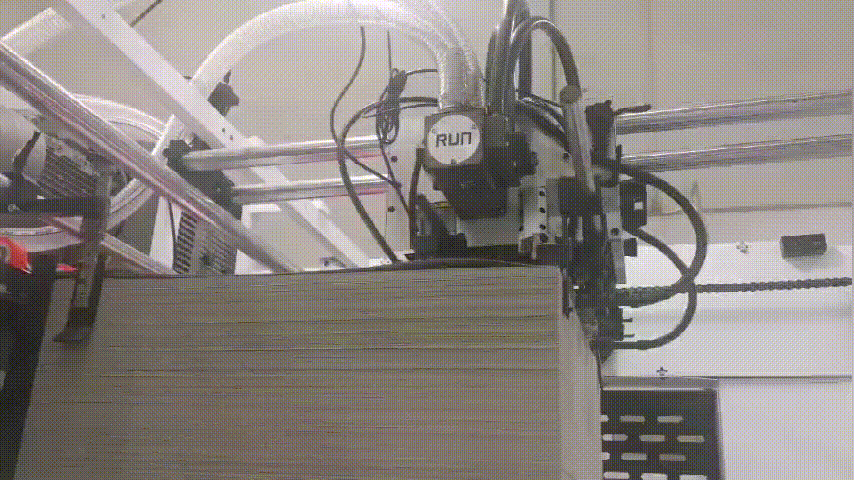

Top sheet feeding mechanism
High precision high speed automatic feeder,feeding smoothly;

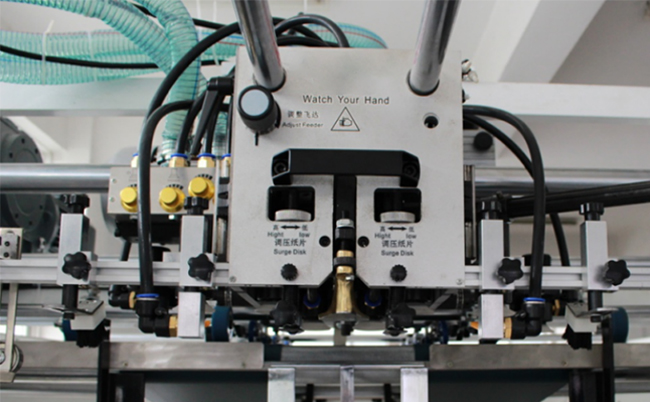

Strengthening type paper feeding device,nozzle angle is adjustable,suitable for different type of papers;

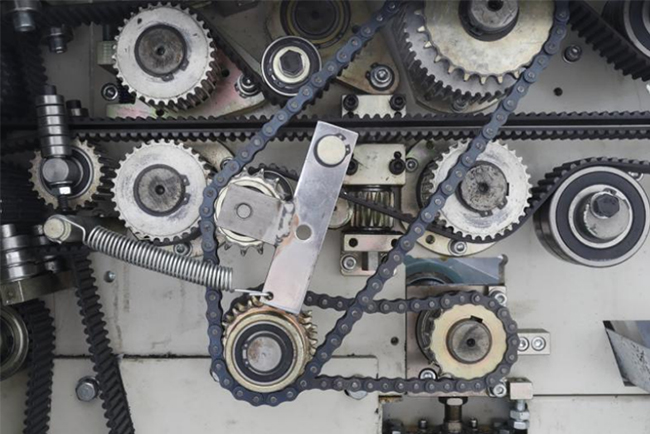

Transmission
With double teeth belt drive and tension device ensure the drive accurate, stable and low noisy;
Two sides correction
Top sheet left and right all course correction, error correction for about top paper stack and feeding process;

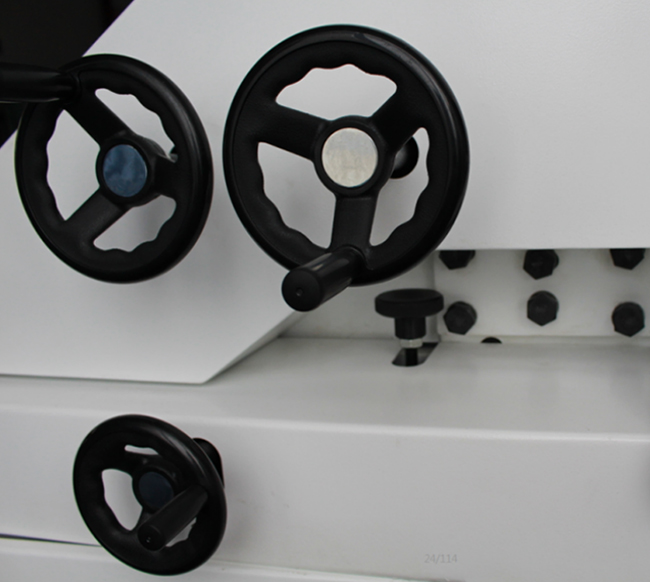

Pressure regulation positioning
Single pressure regulation,to ensure that the two side pressure be same with the display ofdial gauga,it is easy to adjust when change the paper;
Electrical system

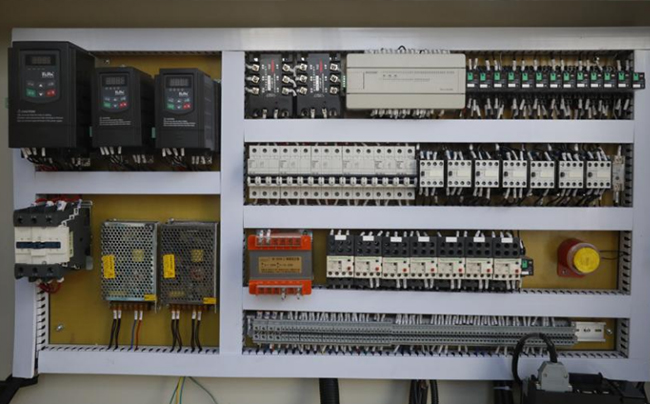

Designed in the accordance with European CE requirement,ensure machine stability ,high efficiency and low failure.Using man-machine interface and PLC combination,display all the information,such as warning,error detect,failures,and operating speed,etc on the screen at a glance.
Press part
