B4L-2516 Large Format Flatbed Digital Cutting Machine
ราคาต่อชิ้น
THB 507,918.00
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 507,918.00
ค่าใช้จ่ายรวม
THB 507,918.00
จำนวน
/ชิ้น
1
B4L-2516 Large Format Flatbed Digital Cutting Machine
Description:
B4L Flatbed digital cutting system can realize through cutting, half cutting, creasing, milling, punching and nesting with high speed and high precision. With conveyor table.
Not included computers, please prepare by yourself.
Features:
• Infrared sensing: 360°surround safety protection, confirming personal safety.
• Camera positioning: Meet the various cutting needs of the advertising industry,greatly improving cutting efficiency.
• Aluminum honeycomb platform suction: The suction effect is good, ensuring thatthe platform is flat and does not deform for a long time.
• Knife system: Compatible with all Ammida B series products, capable of cutting allrelevant materials in the advertising industry.
• Reverse blow rolling feeding: Complete feeding and bed changing cutting in 5seconds, making the machine fully automatic and continuous cutting.
• Integrated all-around design software: A powerful CAD editing and design softwarethat perfectly combines with Montai.
• Accurate knife alignment system: Easy to operate, can accurately control the depthof knife placement,and extend the service life of the countertop.
• Support for later upgrades: Scientifc and concise wiring system and chassis circuitdesign,stable and safe, and easier installation, maintenance, and repair.
Specifications:
| Effective cutting area(MM) | 2500x1600 | ||
| Specical size | Customizable | ||
| Safe device | Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety | ||
| Tools | Standard:Electric oscillating tool，Universal cut tool，Kiss cut tool，CCD，Cursor，Pen | ||
| Optional:Pneumatic oscillating tool，Power rotary tool，Creasing tool,VCUT，Universal router tool | |||
| Cutting thickness | ≤30mm | ||
| Cutting speed | ≤1200mm/s | ||
| Cutting precision | ≤0.1mm | ||
| Repeated accuracy | ≤0.05mm | ||
| Fixing method | vacuum suction | ||
| lnterface | Ethernet port | ||
| Ethernet port | lntelligent digital control servo system | ||
| Command | DXF，HPGL，PDF，PLT compatible format | ||
| Control panel | Multi-language LCD touch panel | ||
| Suction power | 7.5KW | ||
| Power Supply | AC220V 50Hz | ||
| Working Environment | Temperature: -10℃~40℃,Humidity : 20%~80%RH | ||
| Upgradeable Configuration | vacuum pump with frequency transformer | ||
| vacuum pump silencing box | |||
| Aluminnum vaccum table with 8 air zones | |||
| Rack transmission | |||
| Supply | |||
Details:

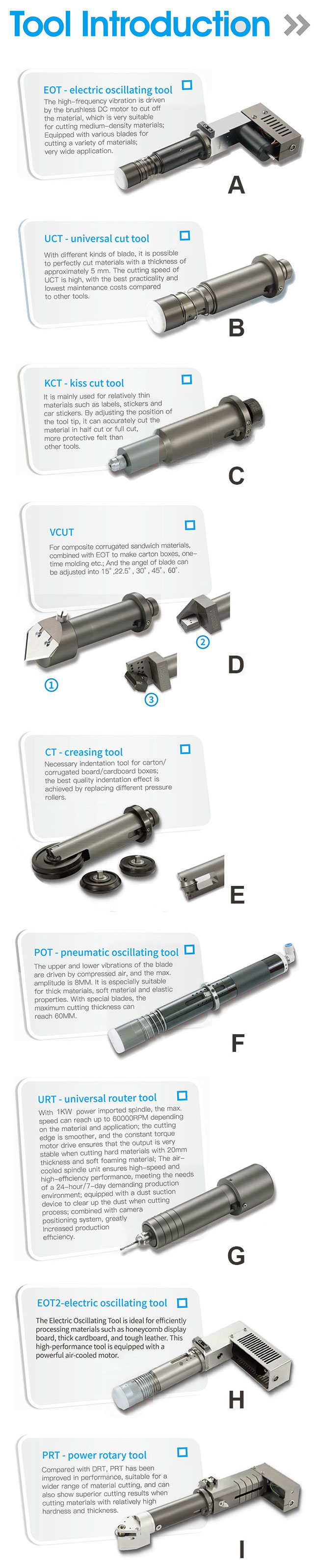

| Standard | CCD system, A: Oscillating knife, B: Universal cut tool (C: Kiss cut/ D:V-cut/ E: Creasing wheel , Choose one of three) |
| Optional | F: Pneumatic oscillating tool add $2000 G: Universal router tool add $5200 H: Electric oscillating tool add $2600 I: Power rotary tool add $2000 |
Application:
Cuts Kraft cardboard, plastic board, fibrous cardboard, KT board,rubber sheet,PP adhesive, reflective material, car stickers,leather, and marking film etc.
Maximum cutting thickness:
PVCcorrugated board:Less than 5mm
KT board,cardboard: Less than 10mm
Soft film: Less than 10mm
