CNC Router Machine with Vacuum Table
Descriptions:
The machine body is constructed of thick-walled steel pipes, has been subjected to finite element analysis (FEA) and designed to provide a rigid and stable processing platform for the machine tool. All the machine body parts have been relieved of stress before the machine body is processed. All positioning bearings, ball screws, linear guides, and racks are maintained by the centralized automatic lubrication system of the machine tool control system. The Y-axis of the machine tool adopts double-track bilateral drive, which can carry out heavy cutting. It adopts the domestic advanced Weihong control system to ensure high-speed and high-precision processing of the machine tool. This machine is suitable for the processing of diversified and complex products and is more suitable for production projects: aluminum plate, density board, Cabinet doors, computer desks, panel furniture, etc.
Specification:
| Model |
QL1325H |
| X Y Working Area |
1300×2500mm |
| Z Working Area |
300mm |
| Table Size |
2050×3100mm |
| Max. Speed |
>50m/min |
| Clamping type |
Suction clip integrated |
| Processor |
Main frequency 100MHz |
| Interface |
USB |
| Command Code |
G code*.u00*.mmg*.plt |
| Software Operating Environment |
Weihong G3 |
| Power (not including spindle) |
1840W |
| Working Voltage |
AC 380V/50Hz |
| Spindle Power |
7.5KW(water cooling) |
| Spindle Running Speed |
0-24000rpm/min |
| Motor |
Servo 850W |

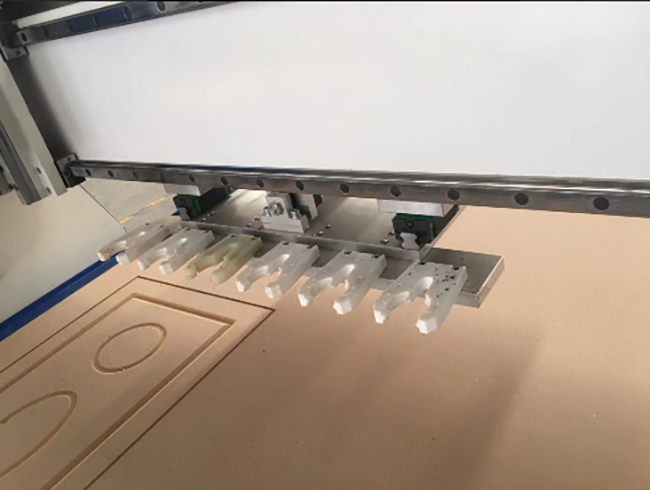

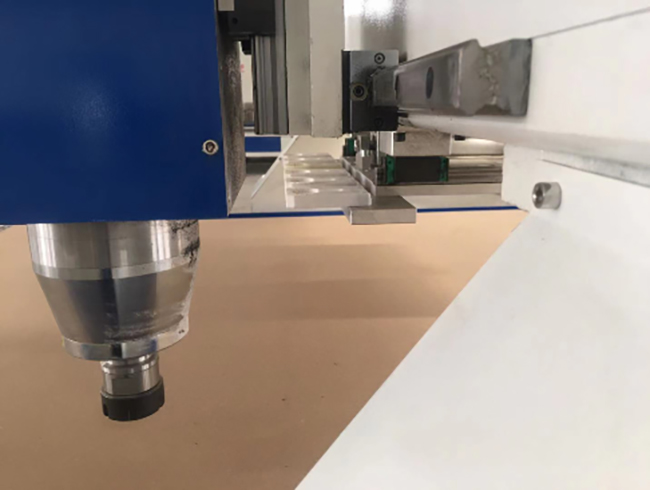

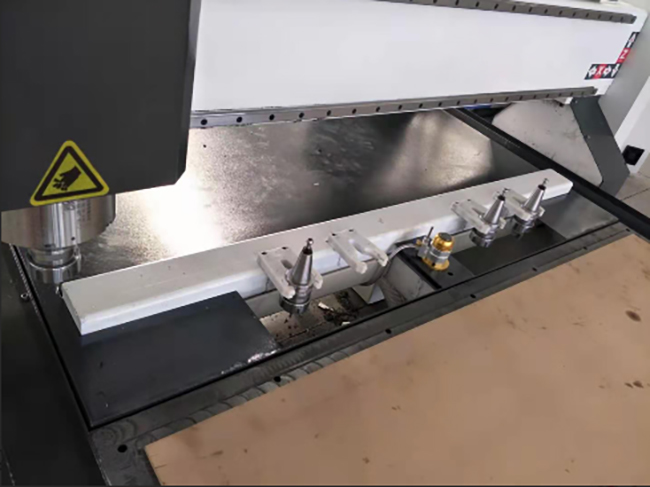

Detais:
Application:
