FC1313/1613/1325 Large Format Flatbed Digital Cutting Machine with Rolling Platform
1313
ราคาต่อชิ้น
THB 293,360.00
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 293,360.00
ตัวเลือก
กรุณาเลือกประเภท กรุณาเลือกประเภท
ค่าใช้จ่ายรวม
THB 293,360.00
จำนวน
/set
1
FC1313/1613/1325 Large Format Flatbed Digital Cutting Machine with Rolling Platform
Features:
- A streamlined sheet metal body designed with dedication and ubiquitous texture,living alone in thebeauty of technology.
- The independently developed advanced high-end multi axis high-speed servo motion control system produces stunning works with precise cutting,smooth curves,and high energy strength.
- The automatic feeding device easily achieves perfect docking for long format cutting processing, and with the support of the industrial camera real-time tracking system, achieves precise and stable contour cutting.
- Using servo motors to drive imported linear guide rail transmission mode, combined with intelligent Al algorithms, to bring you a better operating experience for your irregular cutting.
- Comprehensively expand various transmission interfaces, USB, USB flash drives, Ethernet ports, and create efficient cutting experiences for different scenarios.
- The patented platform structure design, multi zone vacuum adsorption design,low noise,strong suction, helps you easily control the adsorption of small samples.
- Automatic contour extraction and edge cutting no longer require professional computer operators, greatly reducing the entry threshold for equipment operators.

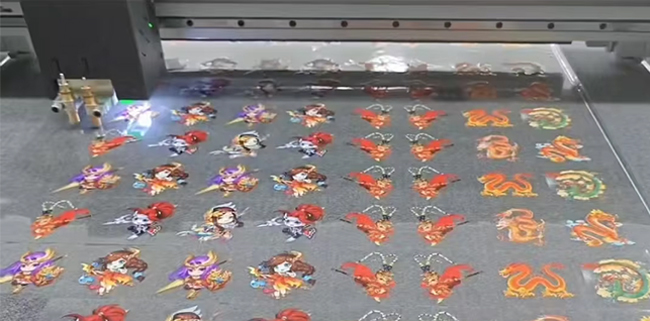

- The industrial camera real-time tracking system is precise and sensitive, and can quickly identify and cut various complex irregular patterns.
- 7-inch LCD high-definition touch screen makes the field of view more beautiful and the control more convenient.
Specification:
| Model | FC1313 | FC1613 | FC1325 |
| Effective cutting area | 1300*1300mm | 1600*1300mm | 1600*2500mm |
| Cutting speed | 1100mm/s | ||
| Cutting thickness | ≤1mm | ||
| Pen/Blade Type | Semi transparent sharp knife, fully transparent sharp knife, drawing pen, indentation knife (Optional vibrating knife, milling cutter, punching knife) |
||
| Fixing method | Vacuum adsorption | ||
| Cutting accuracy | ≤0.1mm | ||
| Repeat cutting accuracy | ≤0.1mm | ||
| Transmission interface | U-disk offline Netmask | ||
| File system | HPGL,PNG,PDF,DXF, PLT, TIFF, JPG formats (pioneering image read-only mode) | ||
| Power supply | AC220V,50-60HZ | ||
| Air pump power | 2.2KW 220V | ||
| Software | CDR AI Flexi SignMaster CADLink PP PF RIPRINT MainTOP | ||
| Dimension | 1860*1200*1150mm | 2055*2160*1150mm | 1680*3200*1150mm |
| Package size | 2050*2050*1380mm | 2285*2190*1380mm | 2285*3290*1380mm |
Details:

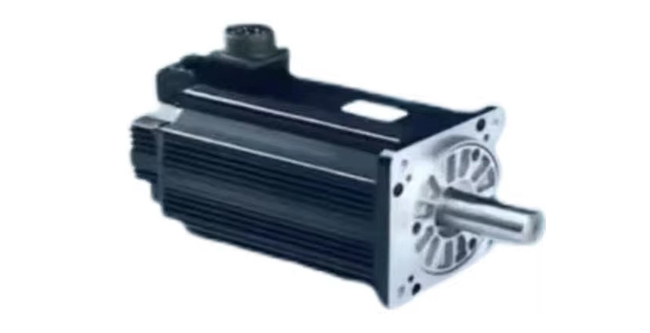

High torque servo motor
High precision and high-speed servo motion control system.

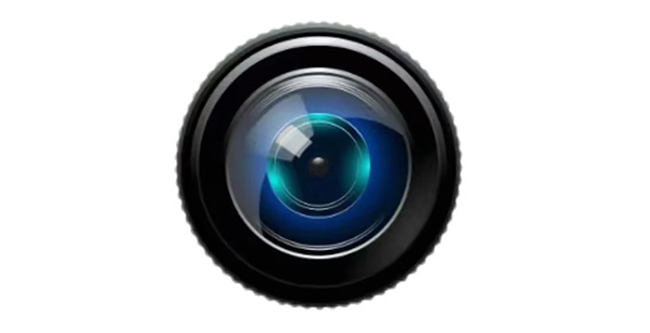

CCD Camera
Positioning tracking system,identify cutting all kinds of shaped patterns.

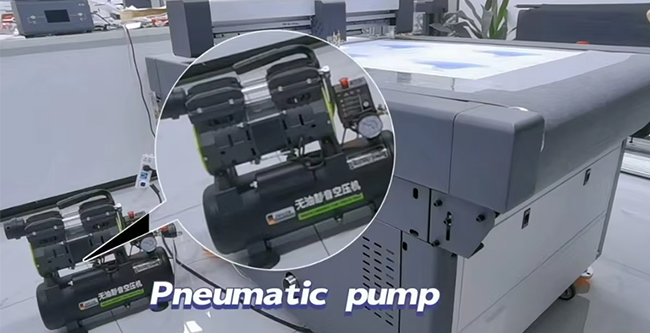

Pneumatic pump

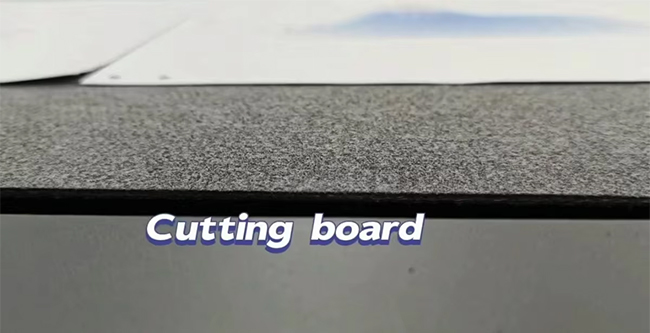

Cutting board

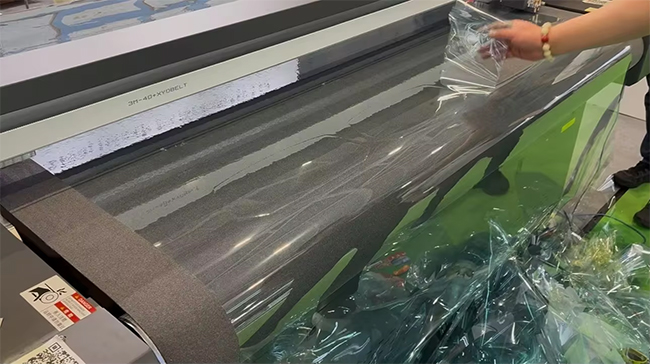

Belt
High flexibility and friction for precise cutting.
Cooperating with the top quality steel rail roller to make the cutting more precise, and materials are easy to tear off after cutting.

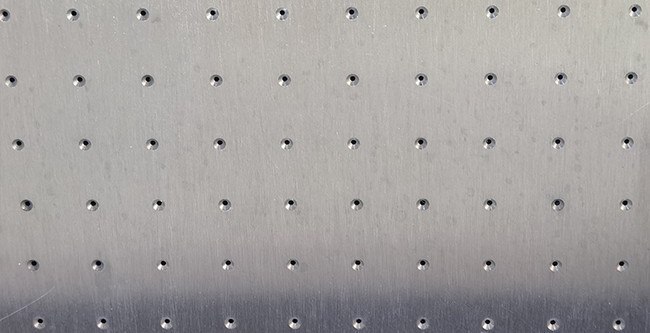

Vacuum adsorption
Patented platform structure design,no noise, strong suction power.
Two-hole platform—zoned adsorption, the adsorption force of the four regions is more uniform.
Application:
Widely used in the advertising industry Industries such as packaging printing, refrigerator stickers, packaging materials, packaging design, digital sampling,furniture packaging, clothing cutting,reflective film cuing,adhesive die-cutting,and invisible car clothing.
Vinyl roll cutting

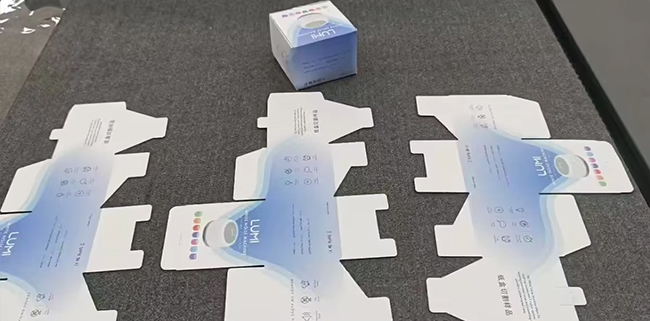

Cardboard creasing
DTF (For clothing, pats, and all fabrics)
UV DTF (Crystal mark)
Window film/ Solar film
Color changing film/Painted film
Invisible car film
