Features:
All machines’ heating rollers of our company are equipped with oil heating system, which can solve the problem that Allover black, red and green and will not appear white spots. The pressure roller is made of Teflon material, which is non-stick and has a better laminating effect.The pressure adopts automatic hydraulic lifting function. and use frequency conversion speed control function, the fastest laminate speed can be about A3 paper 50 sheets in one minute. And our machine has Anti-curl function. Thinner paper after laminating will not curl.And with automatic overlap and automatic cut function.
The 520G hydraulic automatic laminating machine ,oil heating,the machine cover an area of an area small, easy to operate ,fast speed, equipped with automatic temperature control ,prevent circumnutate device ,and is equipped with automatic feed and automatic cut.

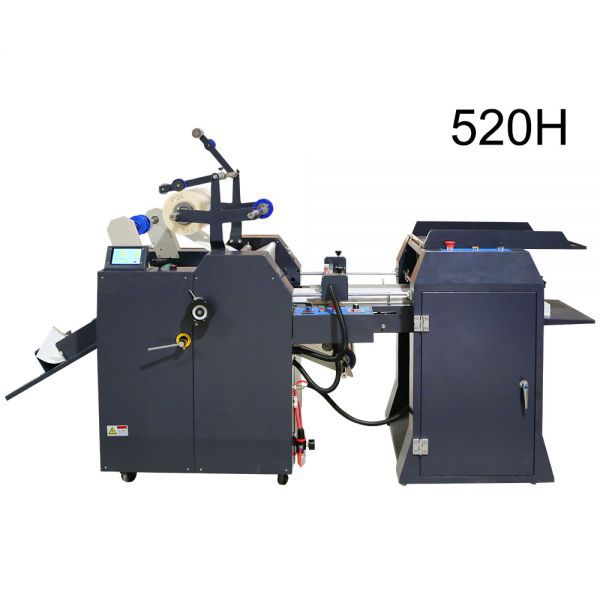

The 520H adopts self-developed Feida automatic paper feeding, automatic breaking, and paper receiving table. It has a computer touch operation screen, which is easy to operate and fast. It is equipped with automatic temperature control and speed regulation, and anti curling settings

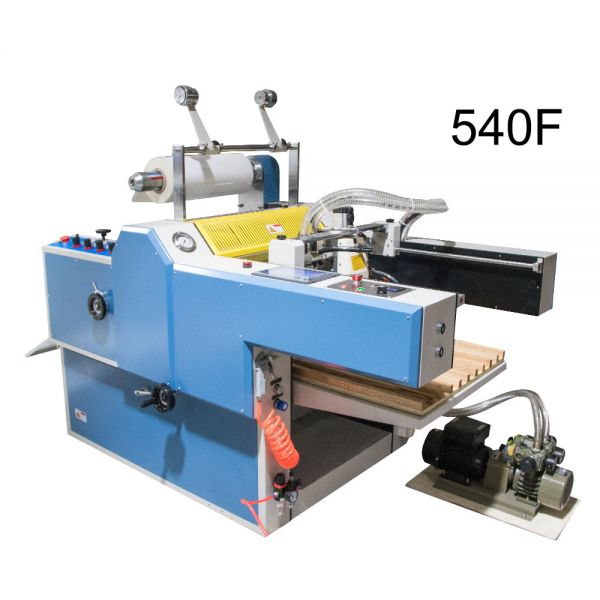

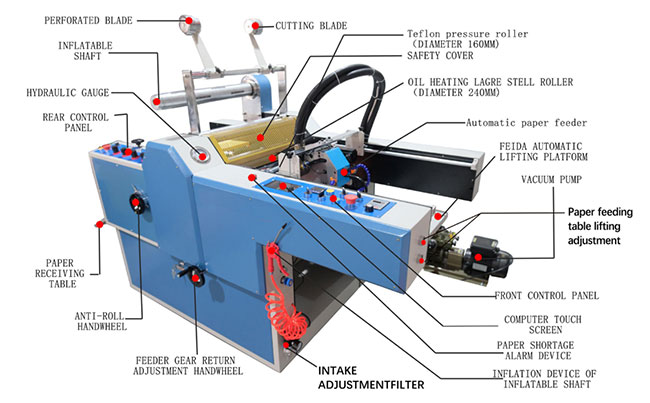

The 540F is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.Man-machine interface system,color touch screen simplifies the machine operation.
Warranty of core components: 1 Year
Core Components: Engine, Bearing, Motor, Gear
Specification:
| Model |
520G |
520H |
540F |
| Max paper size |
490x570mm |
490x580mm |
530x750mm |
| Mini paper size |
150x210mm |
200x200mm |
210x250mm |
| Max height of paper |
15cm |
45cm |
40cm |
| Max paper thickness |
350gsm |
| Heating roller |
0il heating |
| Laminating temperature |
60-120°C |
| Pressure |
0.5Mpa |
3-8Mpa |
3-8Mpa |
| Operating speed |
0-13m/min |
0-25m/min |
0-25m/min |
| Korea silicone roller diameter |
108mm |
240mm |
240mm |
| Total power |
2200W |
3800W |
3500W |
| Dimensions(LxWxH ) |
1.97x0.75x1.42m |
2.35x0.87x1.4m |
1.95x0.83x1.3m |
| Voltage |
220V/50Hz |
| Feeding mode |
Paper take up wheel |
Feida feeding |
Feida feeding |
| Auto collect paper |
yes |
yes |
yes |
| Automatic cut-off |
yes |
yes |
yes |
| Slitting function |
yes |
yes |
yes |
| Anti-curl function |
yes |
yes |
yes |
| Rolling-up after laminating |
yes |
yes |
yes |
Application:
This machine can be widely used in packing box ,food box ,books, drawings ,advertisements , certificates , lase glass surface and son on , the printing after the film,waterproof , durable ,clear pattern, stereo sense is strong.
