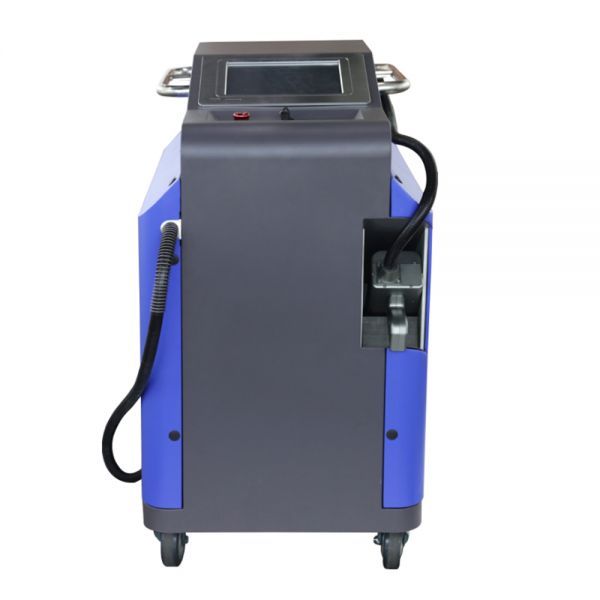

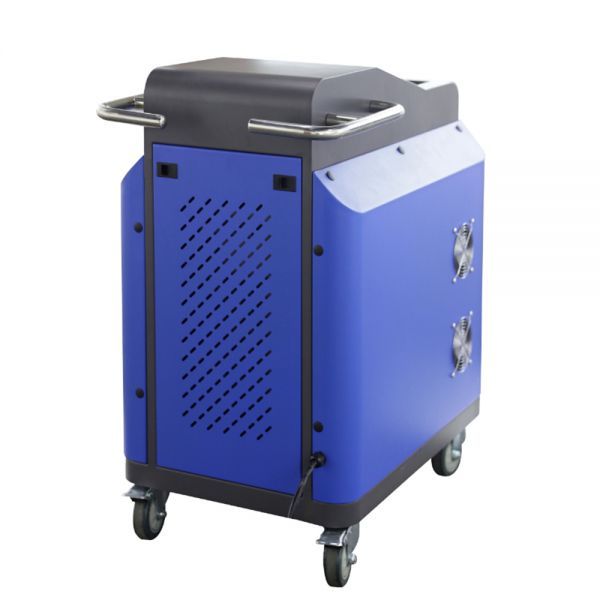

Handheld 100W Metal and Non-metal Surface Laser Cleaner Oil Cleaner Dust Cleaning Machine
Fully enclosed external optical path system, combined with special mode of laser, the high-energy pulse laser collected in the surface of object, with the principles of plasma blasting, high energy pulse excitation and complex photochemical reactions, and by controlling the effective displacement of the laser beam to achieve cleaning. The computer according to the program controls the whole process.
Laser cleaning—new technology，environmental protection，high tolerance range of processing height on the work piece, not only can be used in a stable industrial environment, more suitable for complex outdoor fine cleaning; the use of special mode laser, both to ensure the high tolerance range of non-stable environment, but also efficient removal of rust stains with no hurt to base material.
It is widely used in industrial area, such as automotive, mechanical, food processing, electronics, historic conservation, shipbuilding and power generation, etc.
Features:
1. High energy pulsed laser focusing on the surface of object to simulate plasma, continuous irradiation of high-energy plasma instantaneous formation and expansion, resulting in a series of tiny explosions, formatting plasma blasting, finally achieve the relative smooth corrosive layer of object surface to physical blasting burst, and move through the high speed laser spot to form a plume that will clean the debris to complete the cleaning. Mainly used in metal rust.
2. High energy pulsed laser focusing on the surface of object, dirty rust and other irregular structure and dark surface absorption the laser energy and plasma energy formatted by metal surface, is instantaneous vaporization from the base metal. Mainly used in the mold cleaning and cultural relics repair and other industries.
3. The final reaction product is discharged in the form of gas, and the special mode of laser is lower than the damage threshold of the parent material, which can peel off the coating without damaging the parent material. Mainly used for paint removal and coating stripping.
| LASER CLEANING PARAMETERS COMPARISON | ||||||
| Base Material | Surface | Effective DOF (mm) | Low Speed (mm2/s) | Normal Speed (mm2/s) | High Speed (mm2/s) | Effect |
| Cast iron | Severe rust (0.05mm thick) | 10 | 1800 | 2200 | 3500 | Clean surface and no harm to base material |
| Carbon steel | Moderate rust (0.05mm thick) | 10 | 1800 | 2000 | 2500 | Clean surface and no harm to base material |
| Stainless steel | Greasy dirt, slight rust | 10 | 1800 | 2200 | 3000 | Clean surface and no harm to base material |
| Mould- steel gear | Moderate greasy, iron residue | 10 | 1800 | 1800 | 2500 | Clean surface and no harm to base material |
| Aluminum | Oxide, Dirty surface | 10 | 1500 | 1800 | 2200 | Clean surface and no harm to base material |
| Paint without putty | white Plain paint (0.1mm thick) | 10 | 2000 | 2200 | 3000 | Clean surface and no harm to base material |
Applications:
Rust Erasing
Sample: angle iron
Base material: Q235
Erasing Efficiency: 1400mm2/s
Erasing Effects: surface undamaged and no rust left behind
Sample: propeller gear shaft
Base material: 40Cr
Erasing Efficiency: 1400mm2/s
Erasing Effects: surface undamaged and no rust left behind
Sample: carbon steel tube
Base material: carbon steel
Erasing Efficiency: 2000mm2/s
Erasing Effects: surface undamaged and no rust left behind
Sample: chuck
Base material: alloy steel
Erasing Efficiency: 1700mm2/s
Erasing Effects: surface undamaged and no rust left behind
Pre and Post Treatment of Welding
Sample: water pipe joint
Base material: alloy cast iron
Erasing Efficiency: 1800mm2/s
Erasing Effects: surface polished and no stained layer left behind
Oxide Erasing
Sample: vane of air blower
Materials: 2Cr13
Erasing Efficiency: 500mm2/s
Erasing Effects: surface polished without any oxide residue
Sample: Aluminum alloy plate
Materials: 6033
Erasing Efficiency: 1500mm2/s
Erasing Effects: surface polished without any oxide residue
Paint Cleaning
Sample: gif box
Base material: cold-roll steel sheets
Erasing Efficiency: 1800mm2/s
Erasing Effects: paint coat remove completely, no damage to the base material
