High-speed 3D Dynamic Focusing Scanning System with 10mm Aperture
ราคาต่อชิ้น
THB 237,186.00
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 237,186.00
ค่าใช้จ่ายรวม
THB 237,186.00
จำนวน
/ชิ้น
1

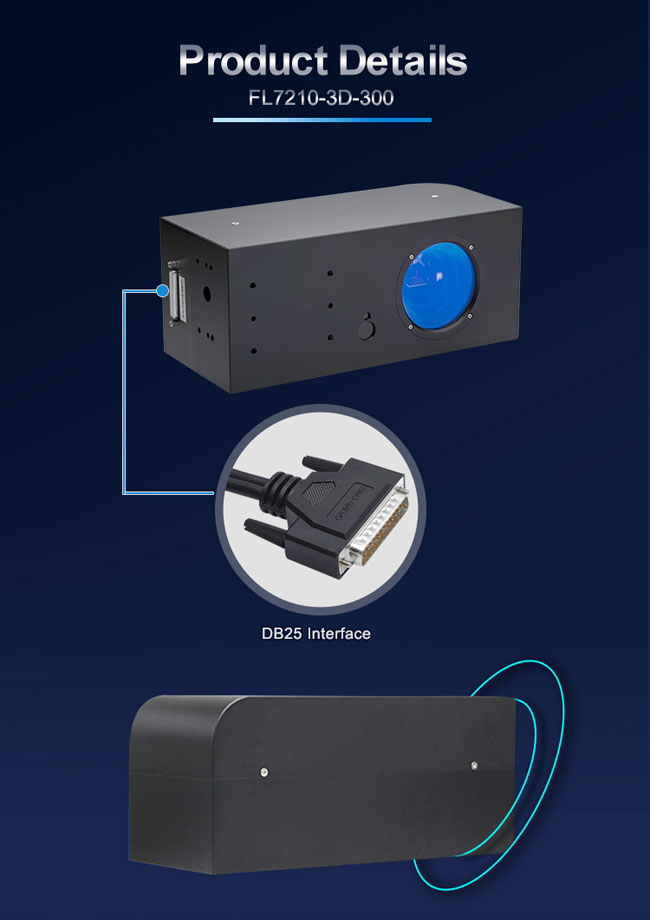

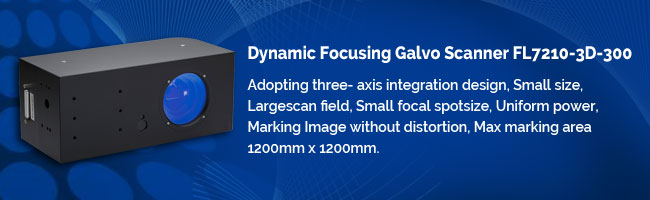

High-speed 3D Dynamic Focusing Scanning System with 10mm Aperture
The advanced servo control algorithm and efficient optoelectronic sensing and positioning technology are use in the system to meet most application demands for the product performance and positioning accuracy. We guarantee the permanent stability of the system by our demanding material control, well-developed manufacture technologies, long-period drifting test and aging test.
Features:
1. The advanced small focal spot design, the minimum focal spot is 24um.
2. Accurate optical path design and fabrication, low energy decrement for large scan field and curved surface processing.
3. High speed system, meets above 3000mm/s precision hatch speed.
4. Scan field up to 300x300mm, meet large scan field engraving requirements.
5. The maximum marking height up to 130mm, far exceed the industry height standard of 80mm.
6. The focal axis position is optimized for deep engraving, suitable for embossment, etc. 3D applications.
FAQ:
1.Q: What can this type scanner use for?
A: 3D laser engraving, coding, marking and cutting.
2.Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
3.Q: What kind of materials can process with this machine?
A: This scanner is 1064nm type, used on metal and non-metal.
4.Can this scanner print on curve?
A: Yes it can print on curve.
