ราคาต่อชิ้น
THB 575,637.00
/set
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1+
0%
THB 575,637.00
ตัวเลือก
กรุณาเลือกประเภท กรุณาเลือกประเภท
ค่าใช้จ่ายรวม
THB 575,637.00
จำนวน
/set
1
Specification:
| Printhead | HP industrial printhead |
| Inkjet Technology | Thermal foaming/piezoelectric technology |
| Printing type | one pass |
| Printing resolution | 1200*1200DPI/1200*600DPI / 1200*300DPI |
| Printing width | 38.7cm |
| Print Speed | 10-40m/min |
| Thinkness of printing material | 0.1mm-140mm |
| Nozzle to printing material | 1mm-3mm |
| Core board | Self-Development |
| Operating Software | Kois2.0 |
| Operating System | win7 win10(Computer operation) |
| Image format | BMP/JPG/PDF/TIFF |
| Data transfer | Ethernet/USB3.0/R232 |
| Ink type | Dye ink, pigment ink |
| Colors | C/M/Y/K |
| Ink consumption | 1 square meter consumes about 8 ml of ink. |
| Application | Corrugated kraft paper, sponge paper, writing paper, rice paper and other surface absorbent materials |
| Ink detection | Ultrasonic Liquid-level Measuring System |
| Cleaning nozzle method | Key inking |
| Ink supply mode | Continuous ink supply |
| Feeder head | Optional and customized |
| Conveyor | Optional and customized (Suction guide belt type) |
| Covyor belt width | 45cm |
| Fuselage structure | One-piece cast iron welded frame |
| Beam structure | All aluminum |
| Regulator | Adjustable mechanical baffle / software data positioning |
| Positioning method | Infrared photoelectric induction positioning |
| Environmental requirements | Normal temperature 15-35°C humidity 20% - 80% |
| Customized service | YES |
| Input power supply | 220V 50HZ |
| Power | 0.9kw |
| Weight | 675kg |
| Product size | 180*100*140cm |

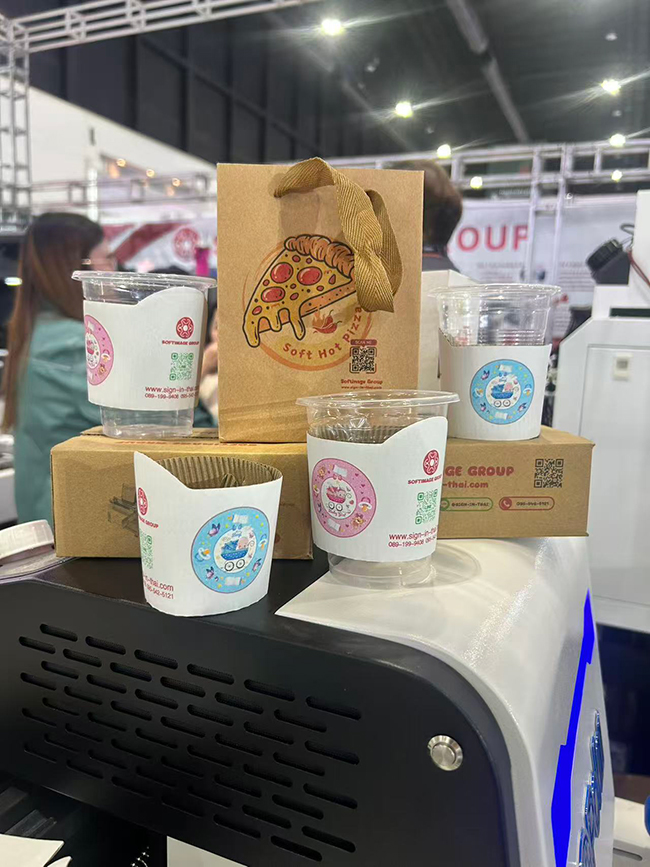

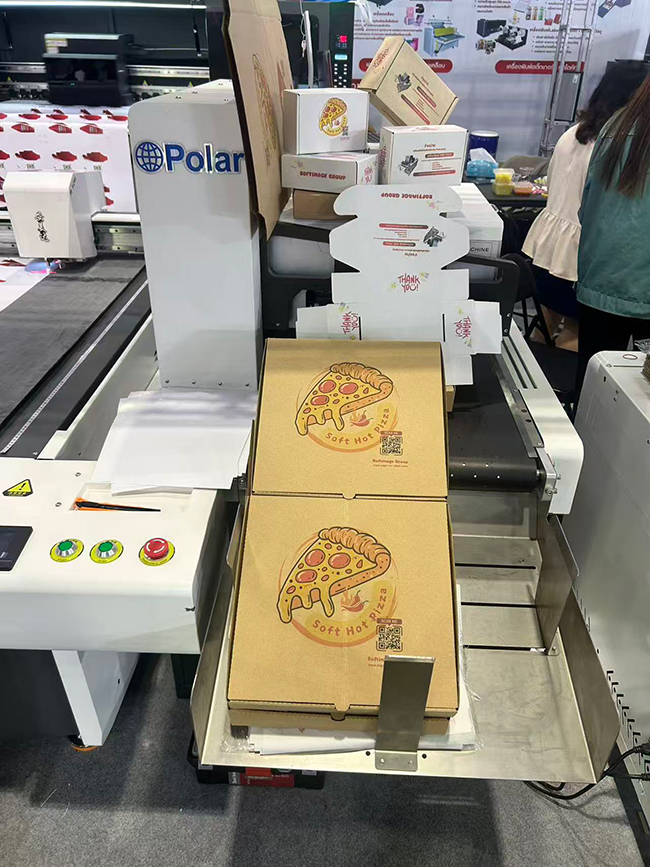

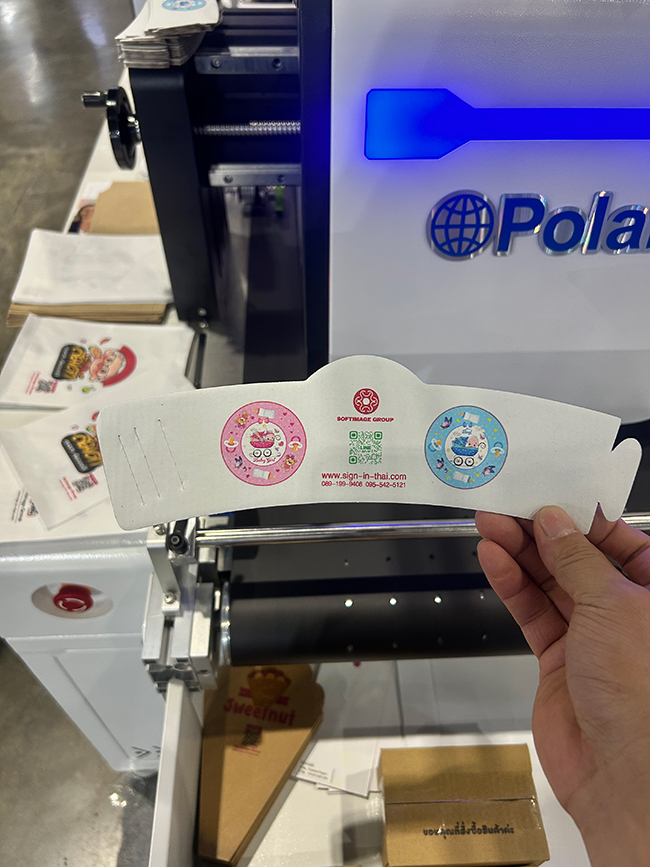

Application:
