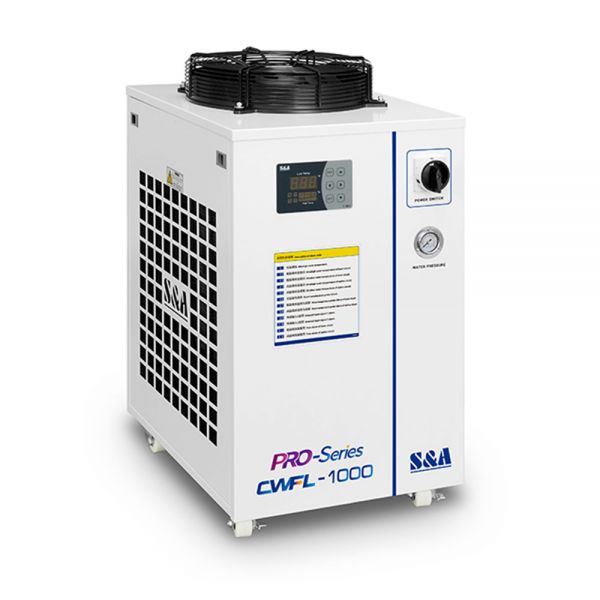

S&A CW-FL-1000AN Industrial Water Chiller for Cooling 1000W Fiber Laser, With Dual Digital Temperature Controller, AC 1P 220V, 50Hz
ราคาต่อชิ้น
THB 38,391.00
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 38,391.00
ค่าใช้จ่ายรวม
THB 38,391.00
จำนวน
/ชิ้น
1
S&A CW-FL-1000AN Industrial Water Chiller for Cooling 1000W Fiber Laser, With Dual Digital Temperature Controller, AC 1P 220V, 50Hz
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
CWFL-1000 chiller developed by S&A is made especially for fiber laser applications up to 1KW. It comes with dual temperature control circuit particularly suitable for separate cooling for the fiber laser and the laser head. No need of a two-chiller solution.
Offering temperature stability as tight as ±0.5℃, this laser chiller unit has been engineered to keep the fiber laser system efficient and enhance its longevity. With consistent temperatures from laser cooling system CWFL-1000, your fiber laser system can always perform at an optimum.
1. Dual channel design for cooling fiber laser and the laser head, no need of a two-chiller solution;
2. ±0.5℃ precise temperature control;
3. Temperature control range: 5-35 ℃;
4. Constant temperature and intelligent temperature control modes;
5. Built-in alarm functions to avoid water flow problem or temperature problem;
6. CE, RoHS, ISO and REACH compliant;
7. User-friendly temperature controllers for easy operation
8. Optional heater and water filter.
| Model | CWFL-1000ANPTY |
| Voltage | AC 1P 220~240V |
| Frequency | 50 Hz |
| Current | 2.5~13.5A |
| Power consumption | 2.53kW |
| Heater power | 0.55kW+0.6kW |
| Refrigerant | R-410a |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.37kW |
| Tank capacity | 14L |
| Max. Pump pressure | 3.6bar |
| Inlet and outlet | Rp1/2”+Rp1/2” |
| Rated flow | 2L/min+>12L/min |
| N.W | 63Kgs (139lb) |
| G.W | 75Kgs (165lb) |
| Dimension | 70cm x 47cm x 89cm(27.6" x 18.5" x 35") |
| Package dimension | 73cm x 56cm x 105cm(28.7" x 22.4" x 41.3") |
Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please
subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.

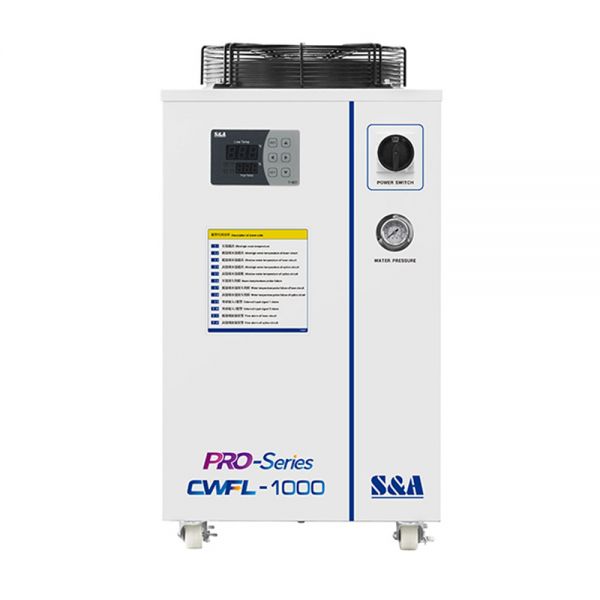

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

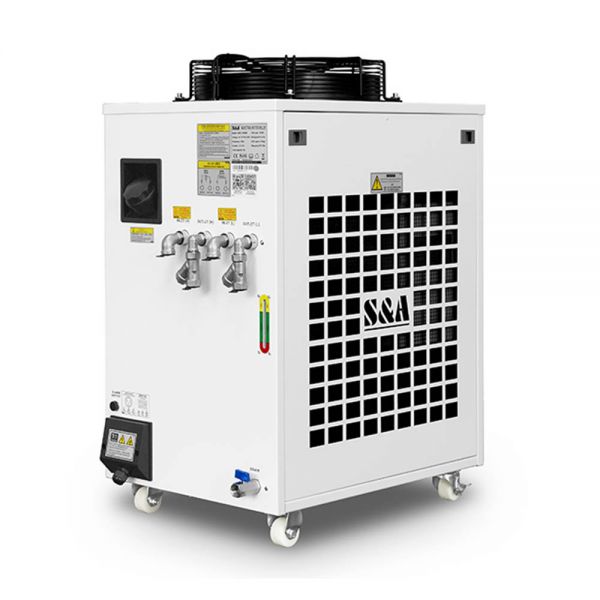

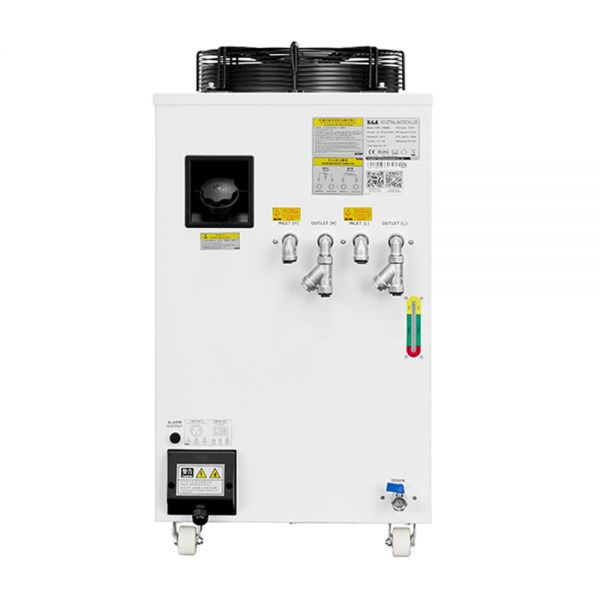

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
Water level check lets you know when it’s time to refill the tank

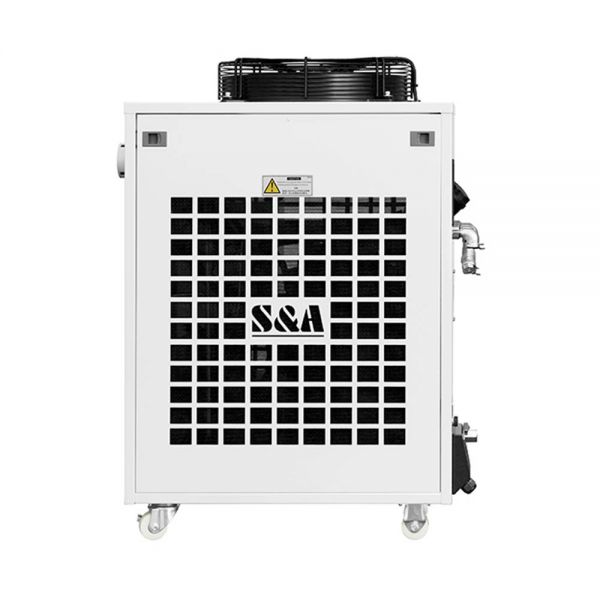

Cooling fan of famous brand installed, With high quality and low failure rate
CWFL-1000 chiller is designed with built-in alarm functions.
E1- ultrahigh room temperature
E2 - ultrahigh water temperature
E3 - ultralow water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure
E6 - external alarm input
E7 - water flow alarm input
Product Working Principle
Ventilation Distance
