S&A CWFL-500AN Dual Temperature Water Chillers for Cooling 500W Fiber Laser, AC 1P 220V, 50Hz
ราคาต่อชิ้น
THB 49,240.00
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 49,240.00
ค่าใช้จ่ายรวม
THB 49,240.00
จำนวน
/ชิ้น
1

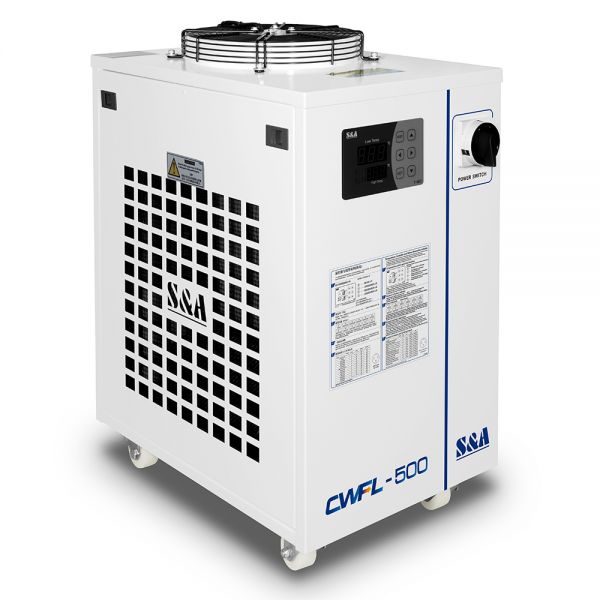

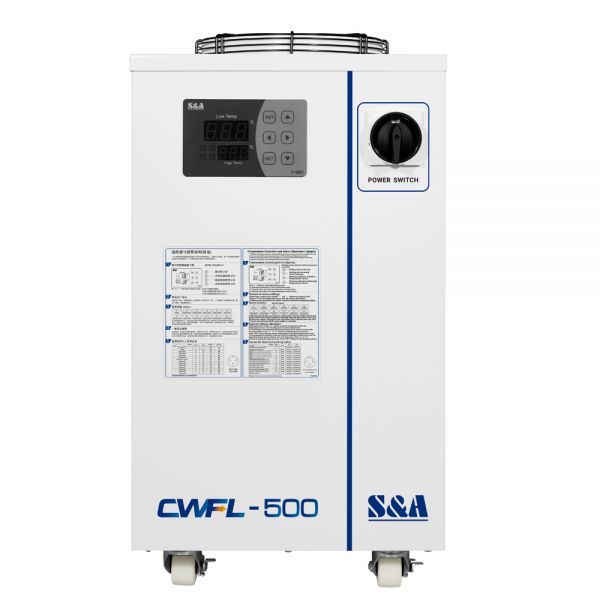

S&A CWFL-500AN Dual Temperature Water Chillers for Cooling 500W Fiber Laser, AC 1P 220V, 50Hz
S&A Teyu CWFL-500 dual temperature water chillers specially designed for cooling 500W fiber lasers are so multi-functional that the fiber laser and laser head can be cooled by the low temperature control system and the high temperature control system respectively at the same time, which can greatly reduce the generation of the condensed water and save cost & space.
Features:
1. With environmental refrigerant;
2. ±0.3℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature to satisfy different needs of fiber laser and the laser head;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS approval; REACH approval;
8. Optional heater and water filter.
THE WARRANTY IS 2 YEARS AND THE PRODUCT IS UNDERWRITTEN BY INSURANCE COMPANY.
| Model | CWFL-500AN |
| Voltage | AC 1P 220V |
| Frequency | 50 Hz |
| Current | 3.4~11.5A |
| Machine Power | 2.0kW |
| Electric assisted power | 600W+ 600W |
| Precision | ±0.3℃ |
| Reducer | Capillary |
| Pump power | 0.55 KW |
| Tank capacity | 10 L |
| Inlet and outlet | Rp1/2" Rp1/2" |
| Max. pump lift | 44M |
| Rated Flow | 2L/min>8L/min |
| Refrigerant | R-410a |
| N.W | 56Kgs (123.5lb) |
| G.W | 62Kgs (136.7lb) |
| Dimension | 65cm x 38cm x 74cm(25.6" x 15" x 29") |
| Package dimension | 68cm x 53cm x 92cm(26.8" x 20.9" x 36.2") |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
High precision temperature control system with dual temperature control function
Temperature control accuracy can reach ±0.3℃. High temp. for QBH connector/optics and low temp. for laser device.
Multiple alarm protection
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

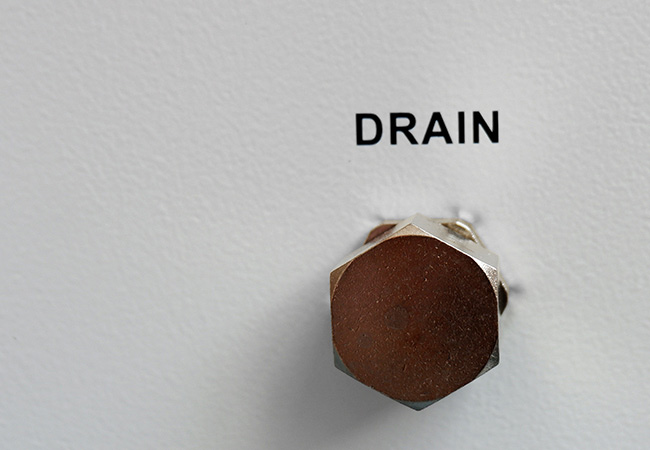

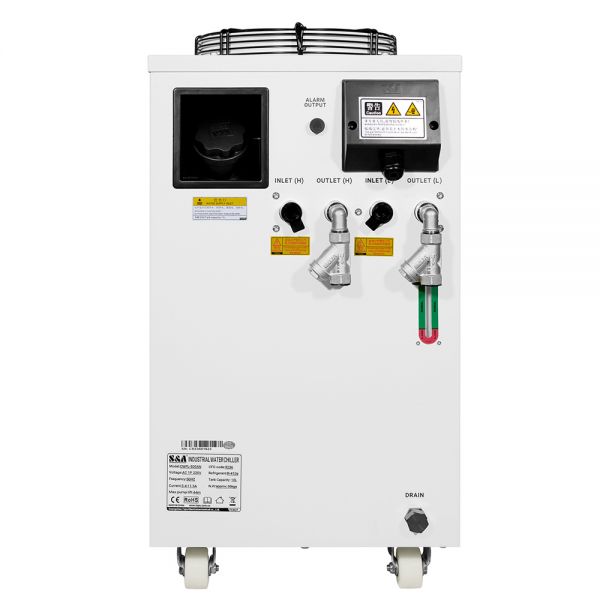

Equipped with water pressure gauges ,drain outlet with valve and universal wheels.
Water pressure gauges help monitor the discharge pressure of water pump while universal wheels facilitate the moving of the chiller.

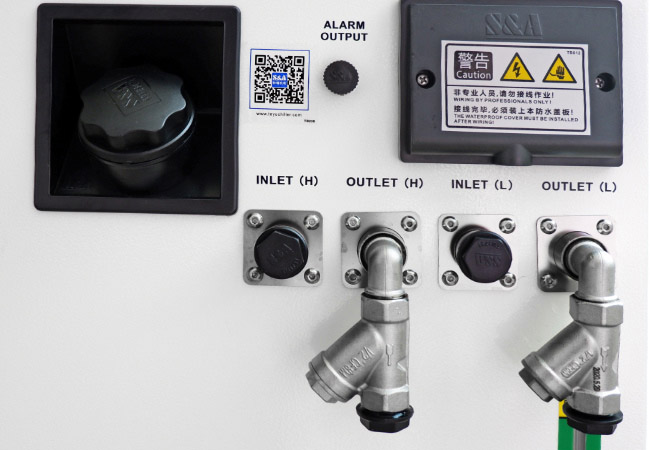

Dual inlet and dual outlet connector equipped.
Water Chiller inlet connects to laser outlet connector. Chiller outlet connects to laser inlet connector.

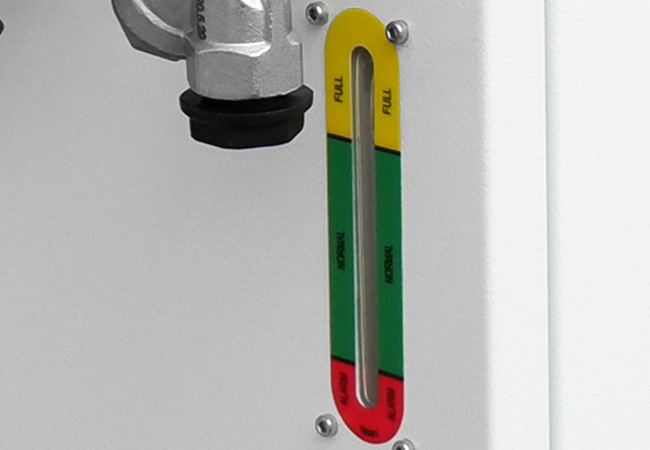

Level gauge equipped, It is convenient to monitor the water quantity of the tank.

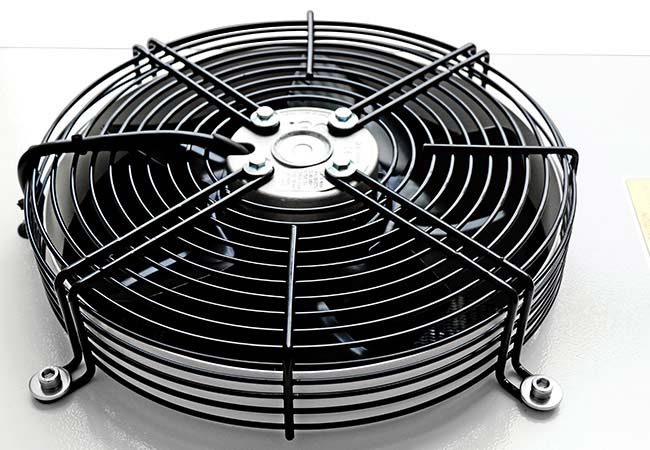

Cooling fan of famous brand installed. With high quality and low failure rate.

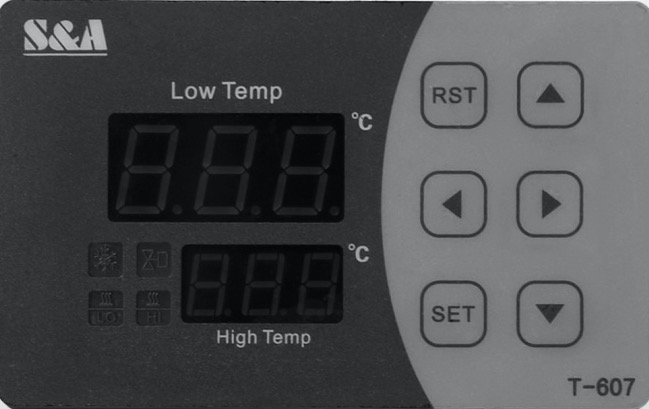

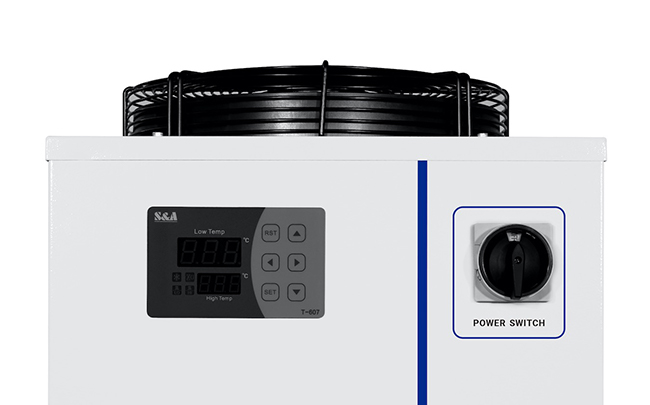

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

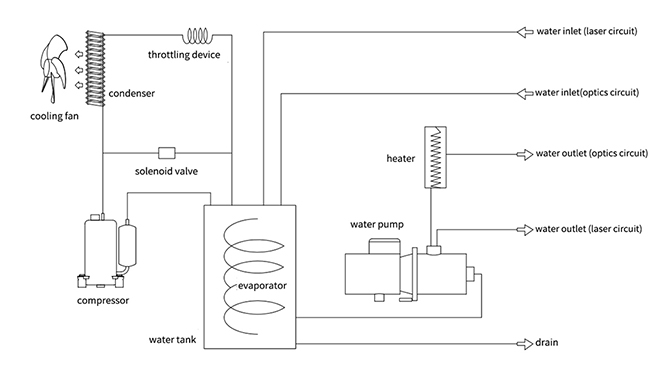

Product Working Principle
Ventilation Distance

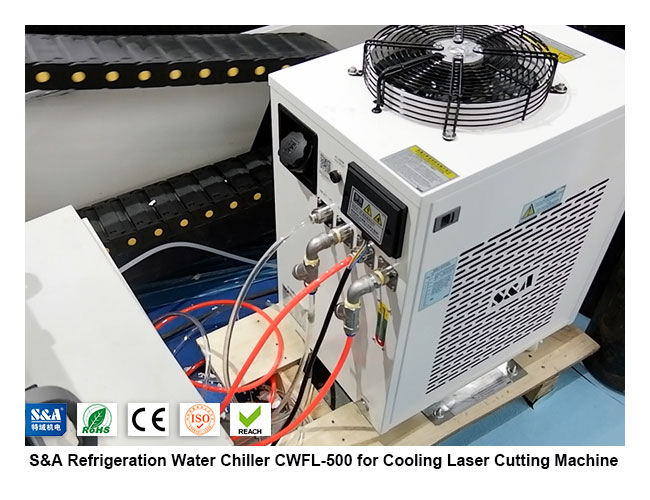

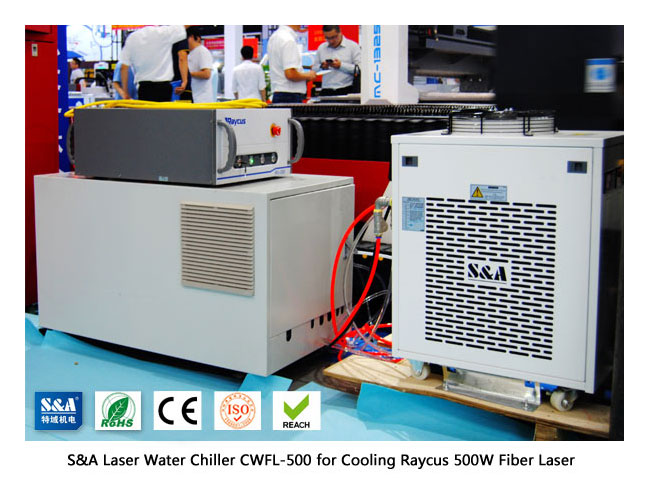

Application:
