S&A Small Chiller System CWUP-40 for Ultrafast Laser UV Laser
ราคาต่อชิ้น
THB 49,745.00
/ชิ้น
ส่วนลดขายส่ง
จำนวน
ส่วนลด
ราคาต่อหน่วย
1
0%
THB 49,745.00
ค่าใช้จ่ายรวม
THB 49,745.00
จำนวน
/ชิ้น
1

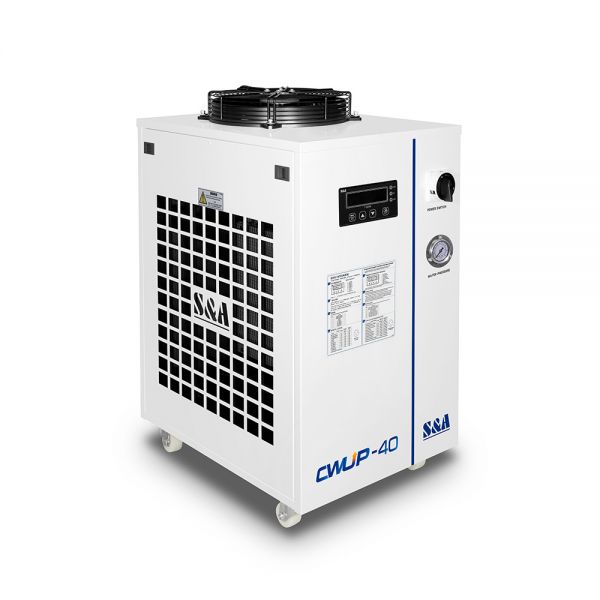

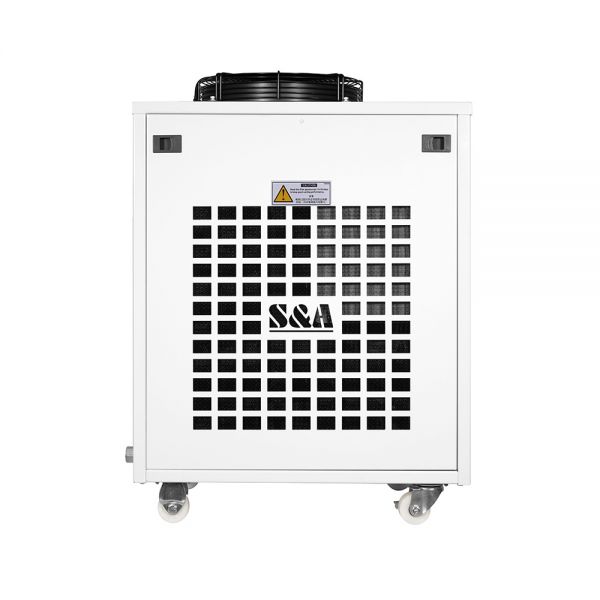

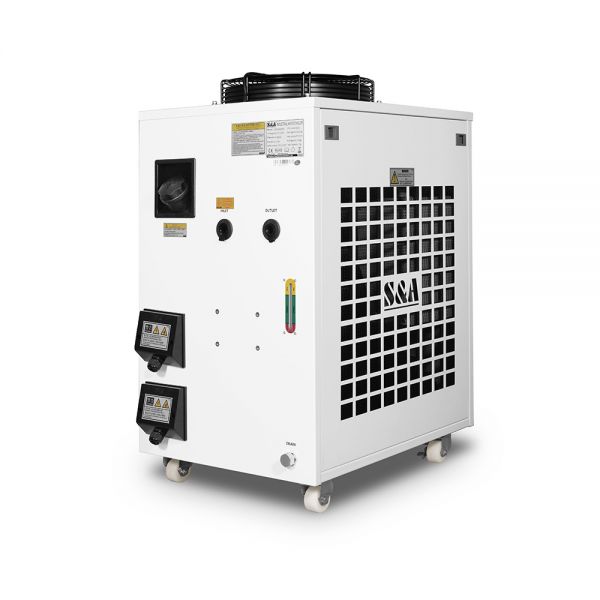

S&A Small Chiller System CWUP-40 for Ultrafast Laser UV Laser

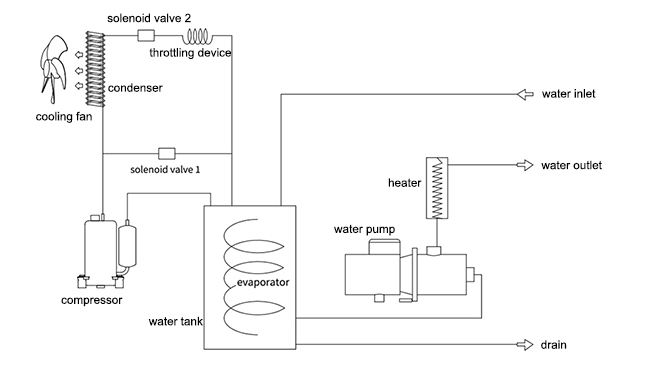

Our expertise in high precision cooling technology translates into small chiller system CWUP-40. This chiller may be simple in design yet it delivers precise cooling featuring ±0.1°C stability with PID control technology and steady flow of chilled water for your ultrafast laser and UV laser. Completely self-contained, CWUP-40 laser water cooler combines a high efficiency compressor and a durable fan-cooled condenser and is suitable for purified water, distilled water or deionised water. Modbus 485 communication function is designed to provide effective communication between the chiller and laser system.
Intelligent functions
Low tank water level detecting
Low water flow rate detecting
Over water temperature detecting
Heating of the coolant water at low ambient temperature
Self-check display
12 types of alarm codes
Easy routine maintenance
Toolless maintenance of dustproof filter screen
Quick-replaceable optional water filter
Communication function
Equipped with RS485 Modbus RTU protocol
Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the accessories box before running the chiller.
| Specification | |
| Model | CWUP-40ANTY |
| Voltage | AC 1P 220V 50Hz |
| Current | 2.3~11.3A |
| Power consumption | 2.14KW |
| Compressor power | 0.88kW |
| 1.18HP | |
| Nominal cooling capacity | 10713Btu/h |
| 3.14kW | |
| 2699Kcal/h | |
| Refrigerant charge | 550g |
| Pump power | 0.37KW |
| Max. Pump pressure | 2.7bar |
| Pump flow | 75L/min |
| Refrigerant | R-410a |
| Precision | ±0.1℃ |
| Reducer | Capillary |
| Tank capacity | 14L |
| Inlet and outlet | Rp1/2" |
| N.W | 58Kgs(127.9lb) |
| G.W | 70Kgs(154.3lb) |
| Dimension | 670 x 470 x 890mm (26.4" x 18.5" x 35") |
| Package dimension | 730 x 570 x 1050mm (28.7" x 22.4" x 41.3") |

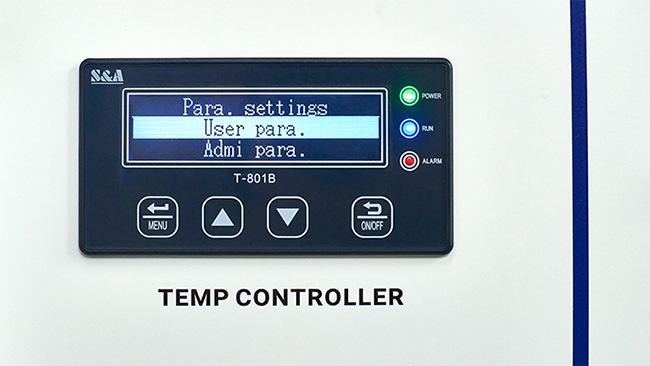

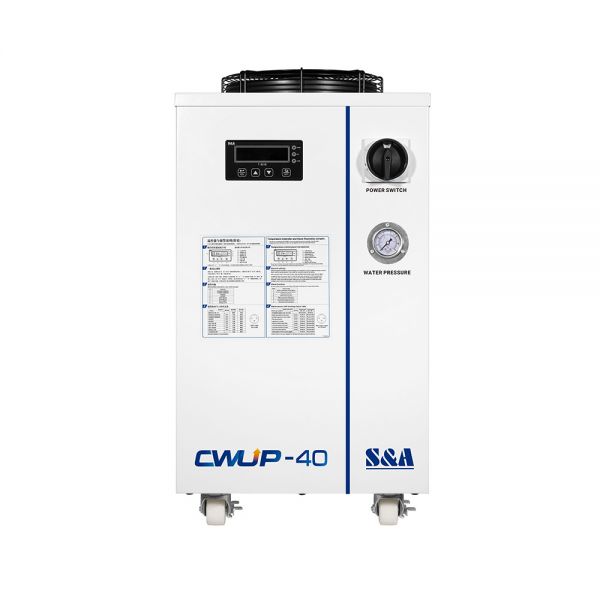

Digital temperature controller
The T-801B Digital temperature controller offers high precision temperature control of ±0.1°C.

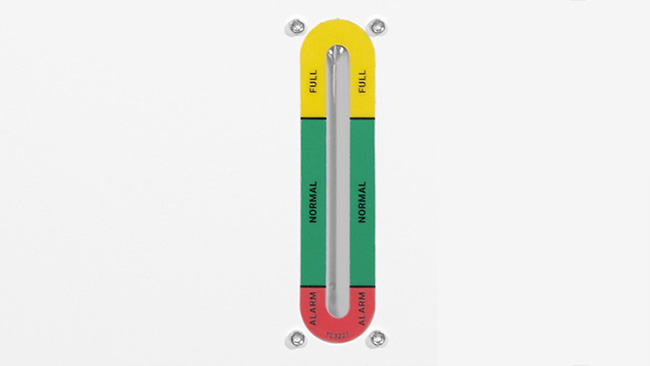

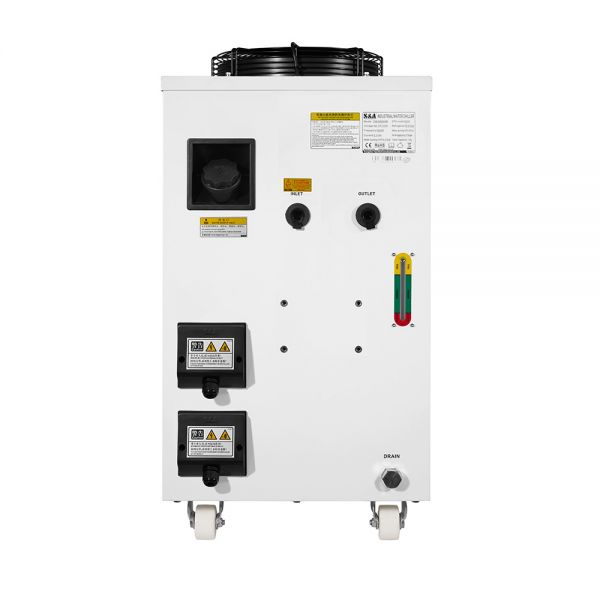

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

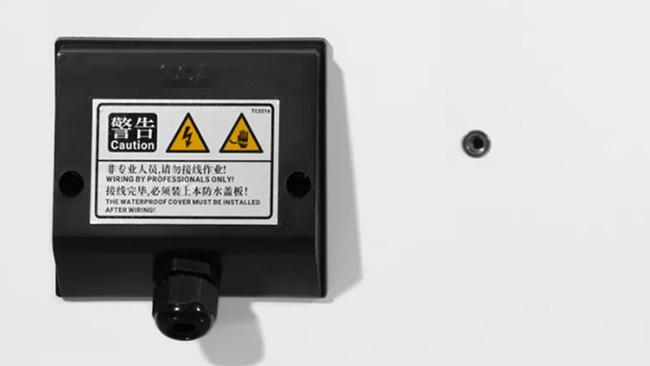

Modbus RS485 communication port integrated in the electrical connecting box
The RS485 communication port integrated in the electrical connecting box enables communication with the laser system.
