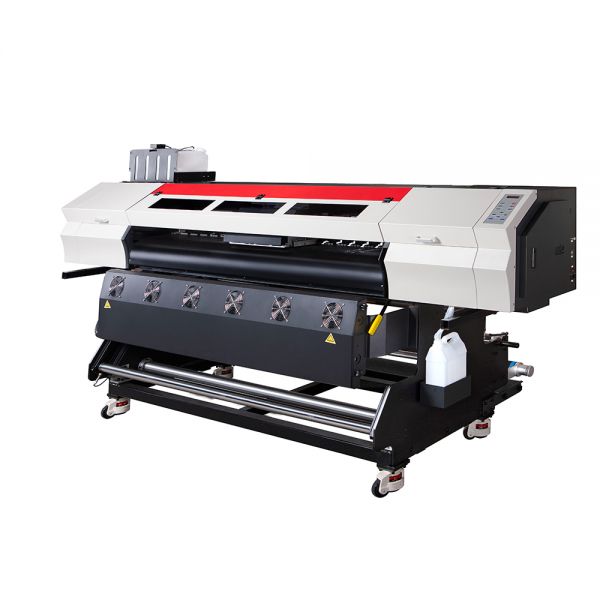

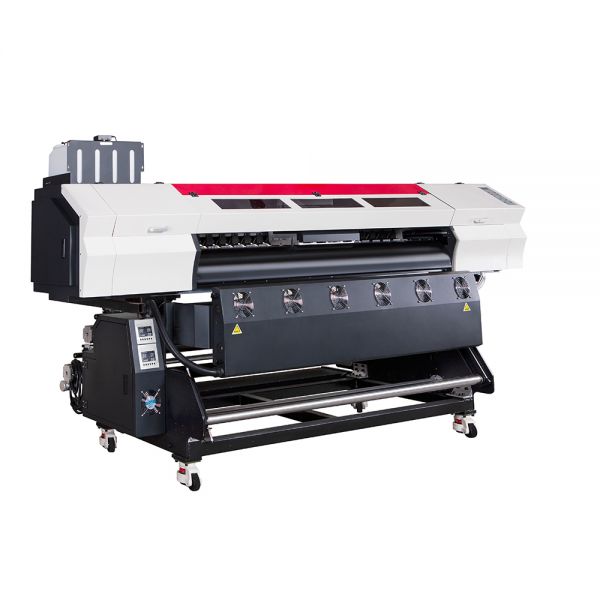

ST1904/1906/1808 Sublimation Printer for Fiber Fabric(4/6/8 Epson I3200A1 Heads)
Configuration:
· Strong and high quality printer body

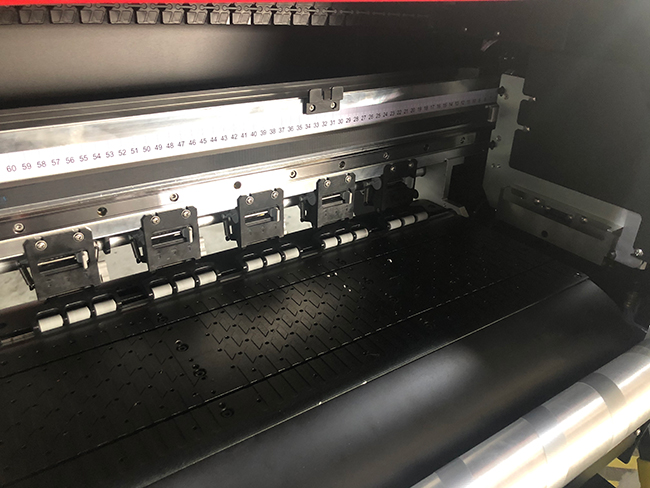

· High quality 145mm wide printing bed
· Aluminum beam
· 20MM Y motion axis
· Intelligent infrared heating system
· LED lights for printing bed
· Paper Out Warning Sensor

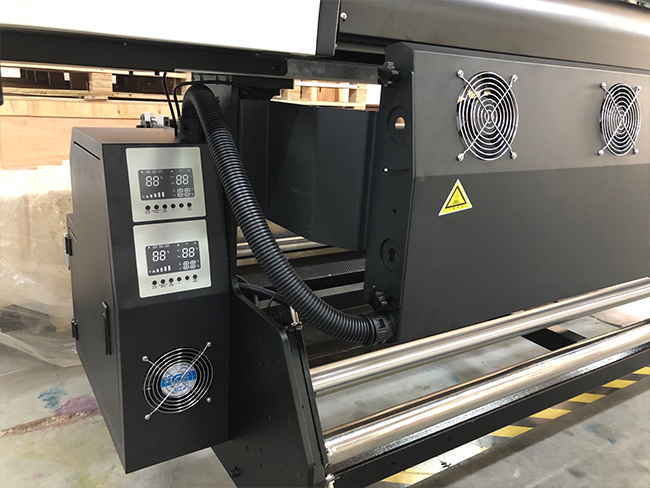

· 4 in 1 heating control system
· Bulk ink supply system

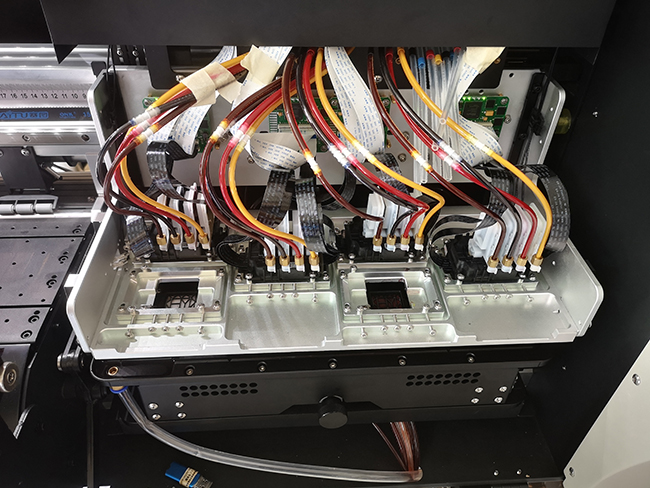

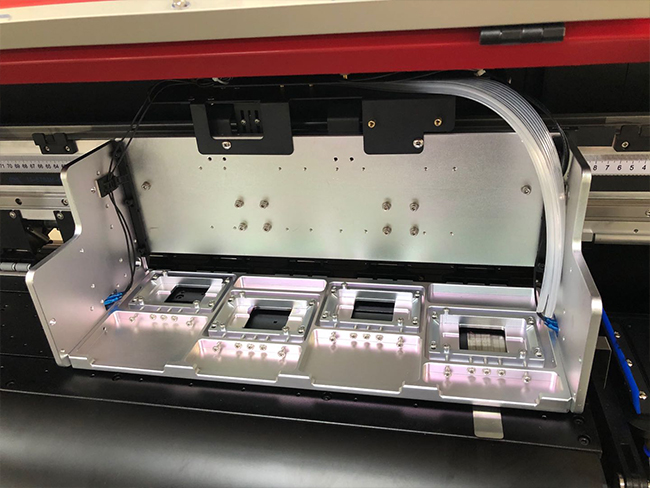

· Lift type carriage
· Automatic cleaning and wiping system
Specification:
| Printhead |
Epson I3200A1 |
| Inks |
Sublimation Ink |
| Maximum printing width |
1800mm |
| Resolution |
720*600dpi,720*900dpi,720*1200dpi,720*1800dpi,720*120dpi |
| Printhead NO. |
4H |
6H |
8H |
| Print Speed |
Production mode |
100m²/h |
150m²/h |
300m²/h |
| Resolution mode |
80m²/h |
120m²/h |
150m²/h |
| High resolution |
60m²/h |
90m²/h |
130m²/h |
| Ink cassette capacity |
1000cc/color |
| Three heating sections |
Pre-heater, printing bed heater, rear heater30°C-65°C |
| Picture drying system |
Standard configuration: Infrared heating with fan drying system |

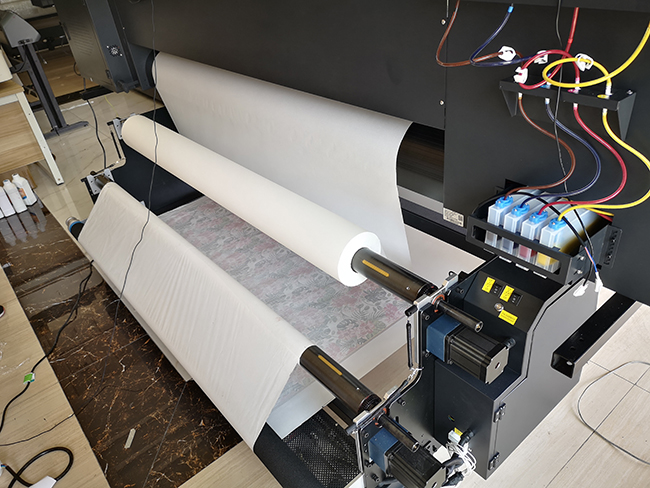

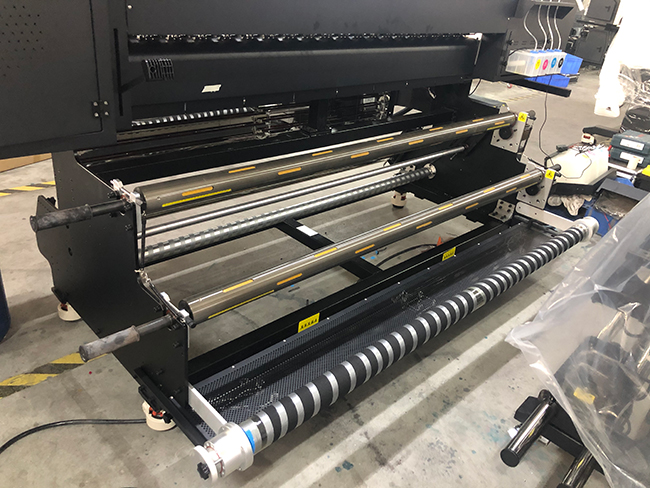

| Auto feeding/collecting system |
Standard configuration |
| Rip software |
MainTop7.0, FlexiPRINT DX 22 SaiTu Edition |
| Environmental conditions |
Temperature: 15-35°C, Relative Humidity: 40%-65% |
| Dimensions(L*W*H) |
3430*1150*1470mm |
| Weight |
600kg |

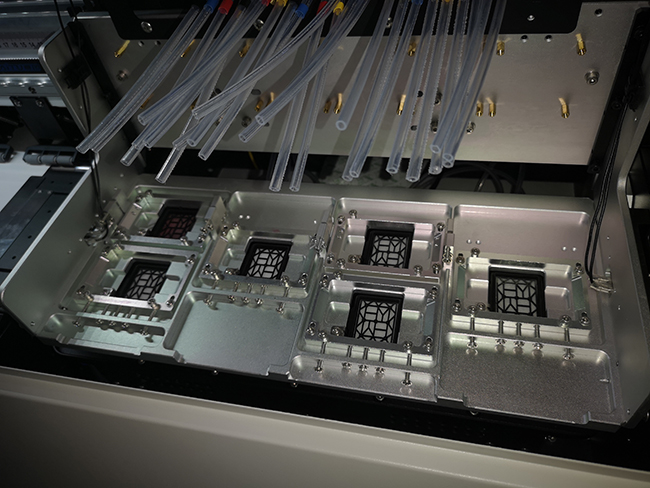

Details:
