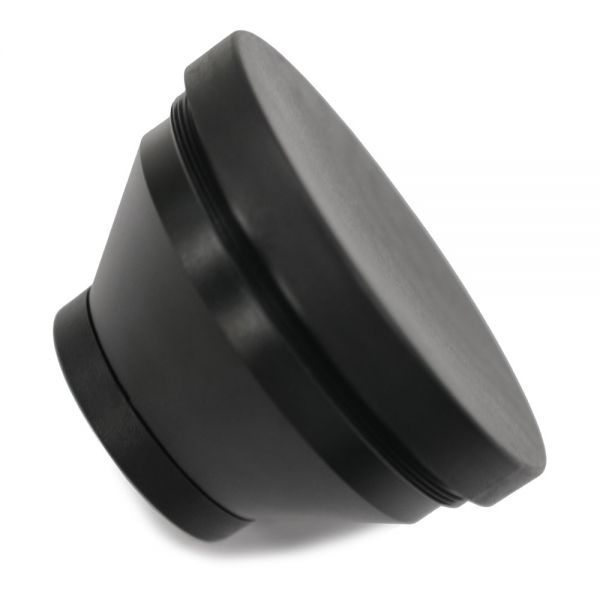

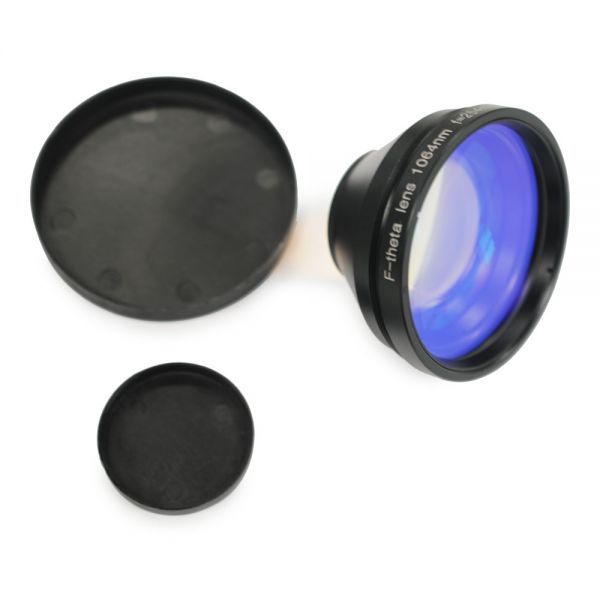

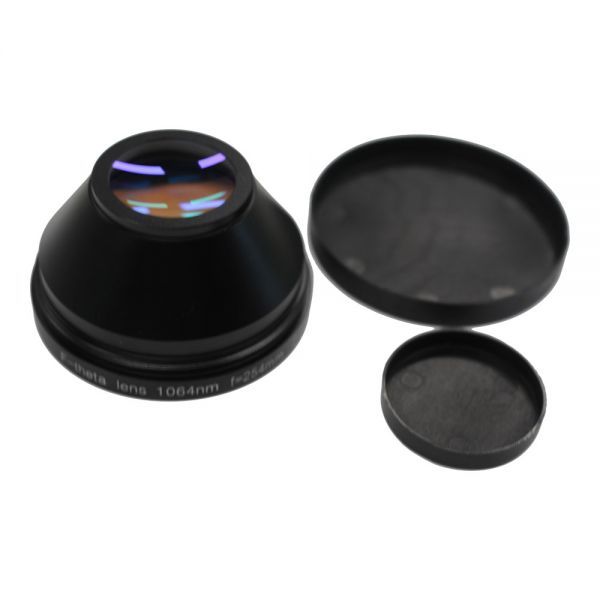

M85X1 F-Theta 1064 F-Theta Scan Lens 70mm / 110mm /150mm / 175mm / 220mm Area for Fiber Laser Marking Machine
70 x 70mm(2.76" x 2.76")
单件价格
THB 3,748.00
/set
批量折扣
数量
折扣
单价
1
9%
THB 3,748.00
选项
กรุณาเลือกประเภท กรุณาเลือกประเภท
总费用
THB 4,119.00
THB 3,748.00
数量
/set
1
F-Theta Scan Lens is widely applied for taking advantage of galvanometer scanning. ND: YAG, Green ray and U-YAG scan system. It is widely used in drilling and marking area.
Details
Product name: F-Theta lens
Application: Laser Marking
Laser type: Fiber Laser etc.
Wavelength: 1064nm
Scan field: 70 x 70mm(2.76" x 2.76") / 110 x 110mm(4.3" x 4.3") / 150 x 150mm(5.9" x 5.9") / 175 x 175mm(6.9" x 6.9") / 220 x 220mm(8.7" x 8.7")
Thread: M85
Color: Black
Warranty: 1 Year
Packaging: 1 pc / carton for F-Theta lens
| CS-LENS-1064 | ||||
| Scan field(mm) | Wave Length(mm) | Focal Length(mm) | Working Distance (mm) | Thread(mm) |
| 70 x 70 | 1064 | 100 | 98.8 | M85 |
| 110 x 110 | 1064 | 163 | 184.9 | M85 |
| 150 x 150 | 1064 | 210 | 238.4 | M85 |
| 175 x 175 | 1064 | 254 | 288.9 | M85 |
| 220 x 220 | 1064 | 330 | 385.0 | M85 |
