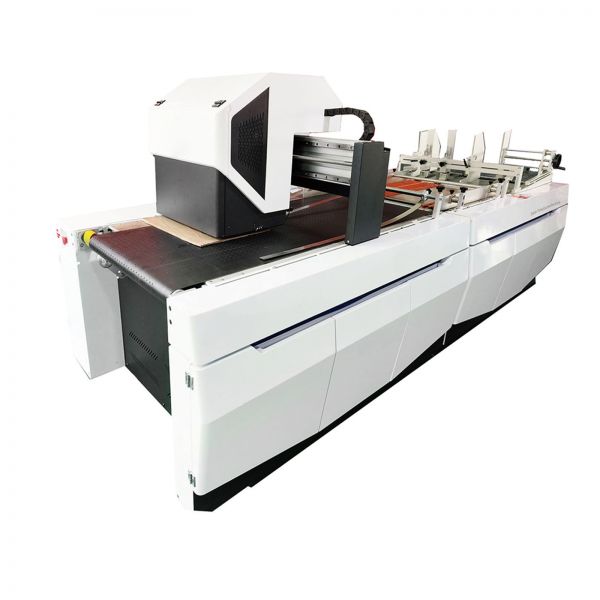

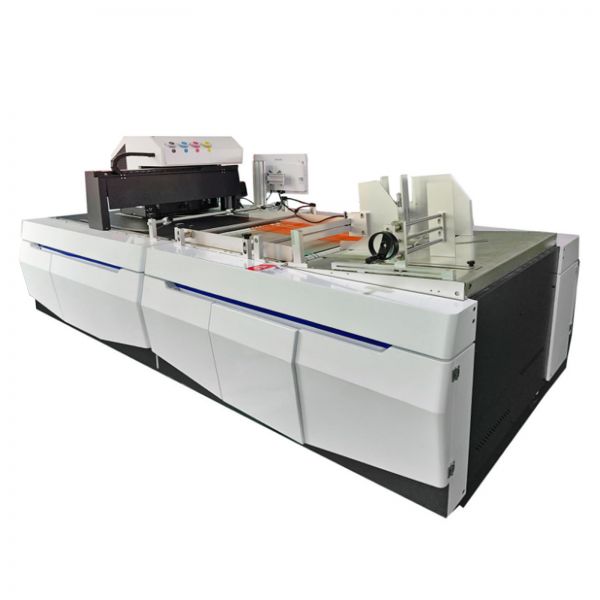

One Pass Digital Printer with HP 841 Printheads
Description:
Short data transmission time, high-performance CPU and USB transmission.
One-click automatic nozzle cleaning, automatic lifting and adjustable printing height from 0 to 140mm
The special structural design effectively extends the service life of the print head.
The machine use high-quality and environmentally friendly ink. The ink dries quickly and has excellent fluidity, and the printed colors are bright.
Equipped with a high-power suction fan, it ensures that the materials are evenly spread on the conveyor belt, resulting in more accurate printing effects.
Specification:
| Printhead | HP841 |
| Inkjet Technology | Thermal foaming / piezoelectric technology |
| Printing type | One pass |
| Printing resolution | 1200*600 DPI / 1200*400 DPI |
| Print Speed | 10–40 m/min |
| Operating System | Win7 / Win10 (Touch screen) |
| Image format | BMP / JPG / PDF / TIFF |
| Data transfer | Ethernet / USB3.0 / RS232 |
| Ink type | Dye ink, Pigment ink |
| Colors | C M Y K |
| Ink detection | Ultrasonic Liquid-level Measuring System |
| Cleaning nozzle method | Key inking |
| Ink supply mode | Continuous ink supply |
| Feeder head | Optional and customized |
| Conveyor | Optional and customized (Suction guide belt type) |
| Fuselage structure | One-piece cast iron welded frame |
| Beam structure | All aluminum |
| Regulator | Adjustable mechanical baffle / software data positioning |
| Positioning method | Infrared photoelectric induction positioning |
| Environmental requirements | 15–35°C, Humidity 20%–80% |
| Input power supply | 220V / 110V 50Hz / 60Hz |
| Customized service | Yes |
| Thickness of printing material | 0.1–20 mm |
| Nozzle to printing material | 1–3 mm |
| Ink consumption | Approx. 8 ml per square meter |
