Ucannest V11 Standard Version CNC Engraving Software for CNC Plasma Cutting Machine
Ucannest mainly applies in numerical control cutting machines, such as CNC plasma cutting machines, laser cutting machines, wire cutting machines, water jet and so on. It has integrated various functions: drawing, text editing and node editing, auto nesting; advanced cutting process; creation and simulation of paths, etc. Like other software designed by Ucancam software Technology Co., Ltd, UcanNest V11 has carried on the advantages of the previous versions which is quite easy to learn and use. For your convenience, it is also compatible with CAD programs. UcanNest V11 popularizes itself through its abundant advantages like easy to learn and use, low price of better performance and good after-sale service.

	Drawing & Editing UcanNest V9 is compatible with CAD programs so that it does not require any third party CAD packages. Besides many files can be imported into UcanNest V9, such as vector files: dxf, eps, plt, AI and bitmap format files: jpg, bmp, tif, png.
	Image processing Functions of image processing include Image tracing, Convert into grayscale image, Threshold, Brightness and Contrast adjustment. With these functions, you can extract contour of the figure, and then get the target cutting figure you want after node editing.
	Text editing Text Font: Using Unicode encoding, and the system font; providing a variety of single font Text Editing: Including word size, word spacing; line spacing, horizontal and vertical, alignment and so on. Text Composition: Along a curve, inside a box, reverse arrangement and texts in sequence. Text Properties: Arbitrary scaling text size, text attributes remnant unchanged; text can be converted into graphics.
	Equation Curve The software can automatically generate the curve described in the equation like this: X=fx(t) R=r(t) Y=fy(t) or θ=theta(t) Z=fz(t) Z=Z(t)
	Serial number text This function is used for making some designs of serial number texts.
	Duplication along a curve A kind of duplication tools, you can arrange the objects along a line or a curve. With these functions, you can work out well-regulated and handsome graphs.
	Duplication It includes Array duplication、Duplication along a line、Duplication along an Arc、Duplication along a spiral curve.
	Artistic transformation Just like the changeful life. We have to do some complex change when design. Here we offer Perspective Distortion, Envelop Distortion, Push and Pull Distortion and Twist Distortion.
	Trim You can trim out any parts you do not need by the user-friendly trim.
	Boolean operation Boolean operation includes join, common, not common and subtract.
	Locate and align in dragging While moving, scaling entities, if you hold Atl key, Ucancam can snap feature point as the start, end point of moving, allows you movling precisely, So as to realize fast nesting.
	Auto Nesting 1. Parameters setting such as kerf width, cutting margin compensation and Iteration count; 2. Nesting method setting: starting point ((left bottom, right bottom, left up, right up), direction: X direction and Y direction; 3. Precise calculation, such as inside hole nesting, to improve the efficiency of working and utilization rate of material. 4. After nesting, a most economical line and an excess material graphic can be generated automatically.
	Node Editing With node editing function, you can edit extracted contour of figure accurately and arbitrarily. You also can change the shape of cut in/out line and select any node as the starting point for machining.
	Layer management In Ucancam, you can create graphs on different layers that can exist together. You can add or delete layers so as to perform operations on many objects at the same time.

Toolpaths are calculated quickly and accurately. Ucancam provides a Tools Library where users can choose, edit, add or delete a tool. Various machining solutions are available. Users can apply toolpath simulation to check whether toolpaths are valid and to preview machining results. These simulation functions are also useful to reduce trial cutting times and cut down machining costs and help users to get valid and effective machining results.

	Profile machining Profile Machining is widely used for incising. It includes On Line, Outside, and Inside machining.
	Ramp Ramp is to plunge in a certain angle. Tools goes into the material not in a vertical direction but in slanting direction so that the tool will not be destroyed or broken because of force during entering material. This also ensures that no mark or scar be left on the surface of the material.
	Pecking plunge When using Pecking plunge, the tool goes into a certain depth into the material, and then goes up to a certain height, and repeat this process when cutting the material. Pecking plunge prevents the tool breaks especially when cutting hard materials.
	Lead in/out When using Lead in/out, the tool first goes into a certain depth outside of material, and then cuts into the side of the material.
	Toolpath plunge You can modify the start point of profile path by click the start point, and keep the left mouse key down, drag the mouse to move the start point. And the same time the plunge will be modified by the parameter of dialog.
	Trochoidal toolpath in profile machining The Trochoidal Toolpath is designed especially for brittle materials such as glass or granite or extremely hard materials that generate a lot of heat upon cutting. The Trochoidal Toolpath produce a circular toolpath at high feed rates with low load on the tool, therefore keeping the heat down while providing for longer tool life.
	Area Clearance Area Clearance is to mill an area in the material. There are two types of milling: raster and offset. It is commonly used in our work.Offset (a machinery strategy of Area clearance) has changed the line-transition into arc-transition and the arc buffer has been added as a transition for sharp corners to adjust to high-speed milling.
	Trochoidal Slot in area clearance Trochoidal toolpaths are mostly used to create slots in double side cutting. You can use trochoidal paths to create pockets, but there will be some wasted movement when the pocket opens up, and the arcing paths are unnecessary to minimize engagement.
	3D Corner Engraving 3D Corner Engraving is to make the surface of the material smooth and to ensure the definition, precision and 3d effect of the machined object. It is mainly used in seal engraving and engraving of characters with special effects. 3D Corner Engraving includes top and bottom engraving, and the difference between them is the size of the machining area.
	Midline Machining Midline machining is to machine along the middle axis of the drawing.
	Drilling You can Drilling on points, on curves, on the center of object or in region.
	Insert and Inlay This is a special function of engraving. It is an important measure to make sign marks and craftworks.
	Intelligent machining Efficiency in milling can be greatly improved when applying Intelligent Machining. Two different tools can be chosen from the toolpath, the tool with lager diameter will be used for rough machining, and the smaller one will be used for precision machining. In the first machining, the speed is greatly improved, and after the second process, you will get what you want.
	Prism machining By prism machining, it becomes easier for you to make characters with prism effect, and sign mark. Toolpaths can be created quickly and efficiently. If you want to make a massive work, it can be machined layer by layer, and you can fit them together when finished. There are two kinds of angles for you to choose, rounded angle and cusp angle. The prism will display clearly. Prism machining is quick to learn and easy to use.
	Embossing machining Embossing machining is mainly used in making relief. There are two modes in embossing: concave relief machining and convex relief machining. With ease operation, you will get accurate relief. It is widely used in such fields as advertising sign, sign board, breast card, furniture, metallic moulds, printings, etc.
	Image dot machining Image dot machining is to engrave the object after the image is converted into grayscale image. Dots are made on the material based on the different grayscale value. The higher the grayscale value is, the deeper and bigger the dots are, and vice versa.
	Image relief machining Image relief machining is to engrave the object after the image is converted into grayscale image. The machining is based on brightness level. Min brightness depth and max brightness depth are the depth by which the tool goes into the material. Horizontal/vertical machining is the direction of the tool path.
	Toolpath artistic transform Perspective Distortion and Envelop Distortion can support the toolpath transform. especially can be applyed to the waveboard toolpath.
	Rotary_Axis engraving This is used to drive a machine using rotary axis, do cylinder engraving.
	Toolpath simulation Machining process can be previewed through toolpath simulation, thus avoiding trial cutting and reducing cost. This function is helpful for choosing a proper machining type.
	Post Processor The Post Processor is a programme which converts the tool path in some standard neutral format into the format requried by a specific machine control system. Such as Biesse, CAMtech, Fanuc, Homag, MasterWood, Microstep, NcStudio, RichAuto, SYNTEC, SCM, etc..

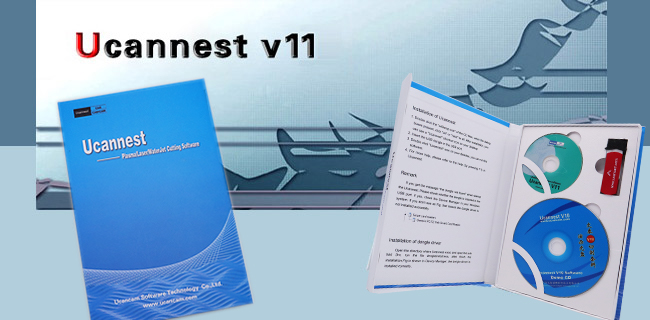

Installation:
1.Double click the "wtSetup.exe" of the CD files, when the dialog boxes present, click "OK" or "next" to all. After installation, you can use a "Ucancam" shortcut icon on your desktop.
2.Insert the USB dongle in the USB port.
3.Double click "Ucancam" icon on your desktop, you can run the software.
4.For more help, olease refer to the help(by pressing F1) in Ucancam.

Fix:
1.Lead in\lead out error in profile toolpath.
2.Spline error in dxf import.
