1080/1610 130W Fabric CCD Camera Cutting Machine Laser Cutter Printed Textile
1000 x 800 mm
Precio unitario
THB 156.229,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 156.229,00
Opciones
กรุณาเลือกประเภท กรุณาเลือกประเภท
Costo total
THB 156.229,00
Cantidad
/set
1

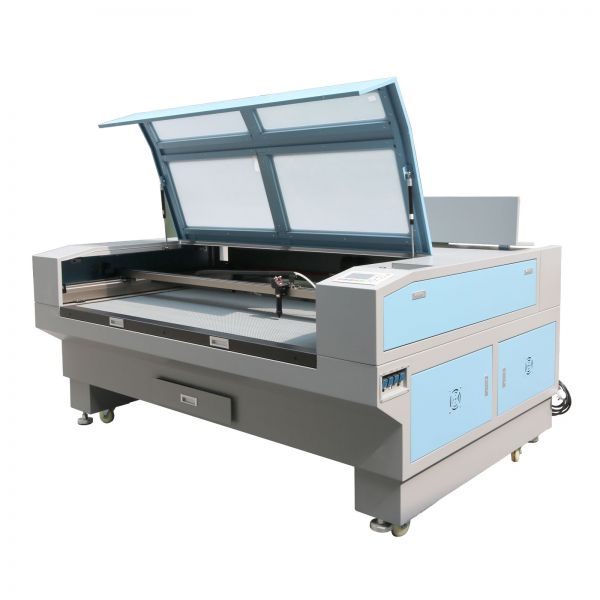

1080/1610 130W Fabric CCD Camera Cutting Machine Laser Cutter Printed Textile
Through different kinds of recognition method, such as featured point to locate cutting, automatic obtaining outline cutting, Mark point location and adopting professional CCD lens, Small Vision Laser Cutter has high recognition speed and high cutting rate, which is very suitable for continuous cuttinglarge amount of computer embroidery, marking and labels of plushtoy. And when the vision funtion is not applied, it can be used as Double-Probe Full-Automatic Laser Cutter.
Product Advantages:
- Using high resolution CCD lens which respond quickly and eliminating stay-time;
- 20% faster than other competitors;
- Precisely locate, recognize and cut of many graphs in a whole plane from multi-angle especially for smaller than 5cm pieces;
- Highly split joint and cutting to large graph and brand which beyond eye reach of camera;
- Cut-parts without trimmed edge;
- Widest suitable 1.8 meters of fabric;
- Automatic absorb wind and discharge smoke;
- Automatically counting and timing.
| Model | FM1080 | FM1610 |
| Working area | 1000x800mm | 1600x1100mm |
| Working speed | ≤450mm/s | |
| Laser power | 130W | |
| Position accuracy | ±0.05mm | |
| Laser tube sealed | CO2 laser tube | |
| Compatible format | DWD,DXF,JPG,AI,TIFF,PLT,CDR,BMP,GIF | |
| Driving system | Motor drive | |
| Cooling mode | Water cooling | |
| Power | AC220±10％ ，50~60Hz | |
| Gross power | ≤2000W | |
| Working temperature | 0~45°C | |
| Working humidity | 5％~95％ | |
| Data transfer mode | USB data cable to computer;USB flash disk;Net cable | |
Application:
