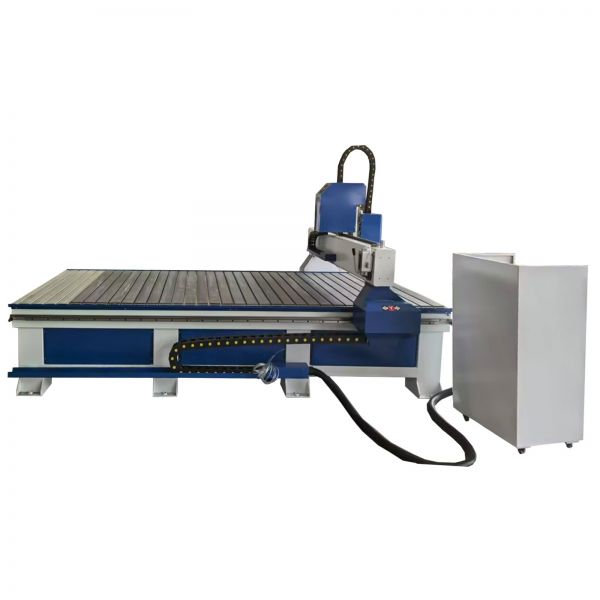

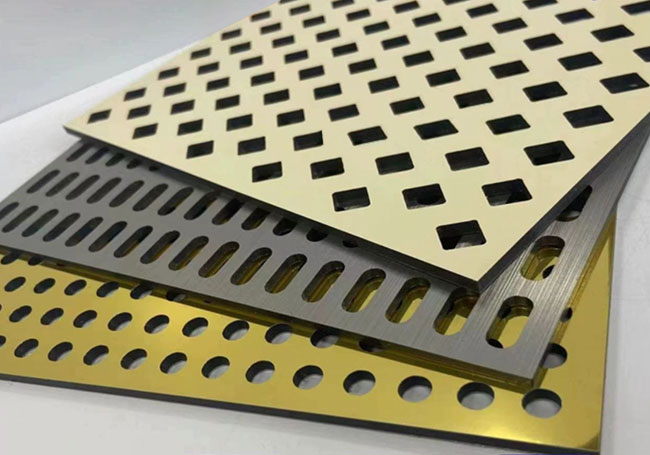

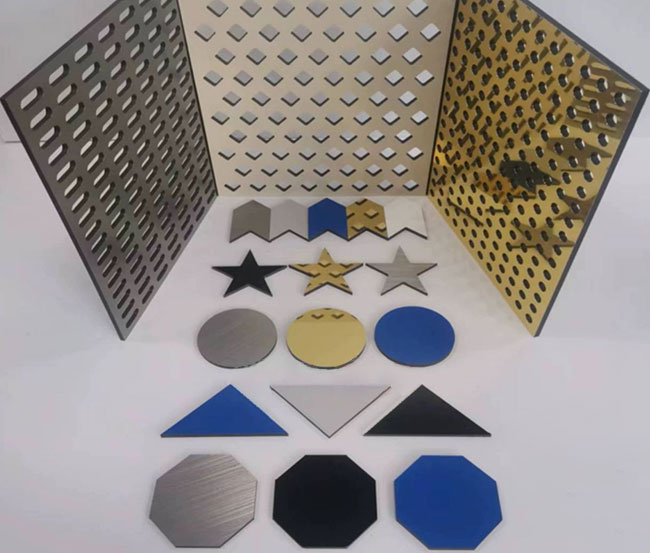

1530 CNC Router Machine with 5.5KW Spindle for Cutting ACM ACP Wood MDF PVC
Precio unitario
THB 222.877,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 222.877,00
Costo total
THB 222.877,00
Cantidad
/unidad
1

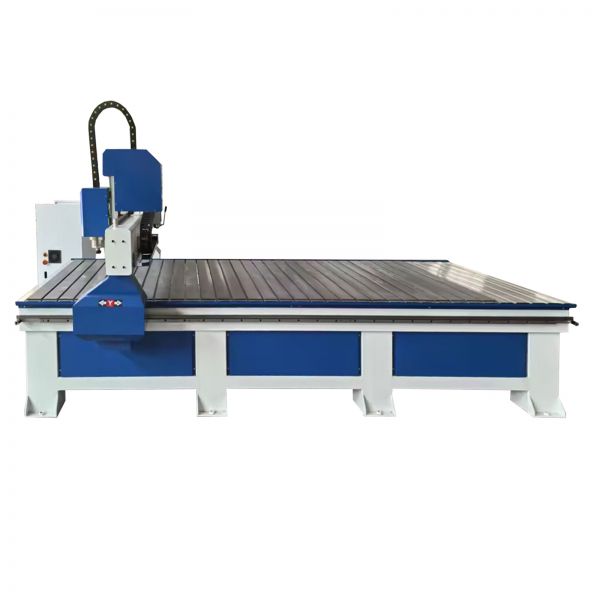

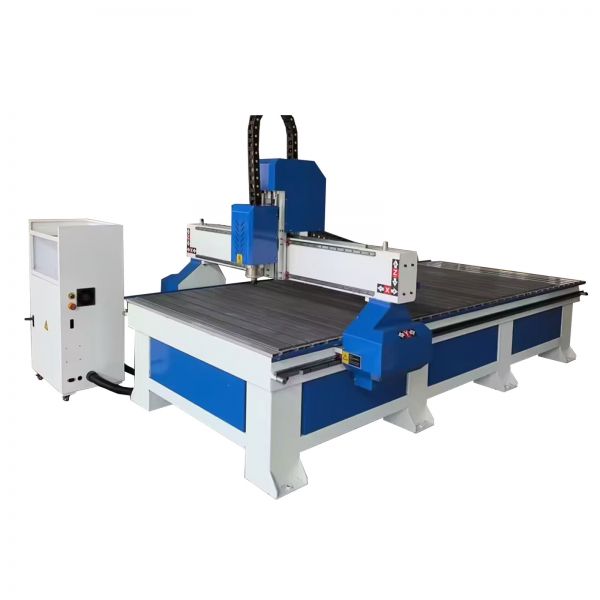

1530 CNC Router Machine with 5.5KW Spindle for Cutting ACM ACP Wood MDF PVC
Features:
• Using imported linear square rails, double row and four column ball slider, loading capacity, smooth operation, high precision, long service life. Imported high precision ball screw, high precision. USB interface type DSP
• Operating system, completely out of the computer can be remotely operated, handle type operation, the operation is more simple, more user-friendly design, a unique intelligence budget law, give full play to the potential of the motor, high-speed processing, linear synchronous music, the curve is more perfect, do not account for computer memory and can realize the automatic start and stop the cutting spindle.
• Good software compatibility, compatible type3/Artcam/Castmate/ artcut and other CAD/CAM design software.
• Six vacuum adsorption partition table, can be effective for the adsorption of different size materials. In order to solve the water circulation pump cold weather problems for water free oil vacuum pump vacuum pump can be selected imported brands.
• Using high-speed drive stepper motor and driver, Y axis adopts double motor drive, to make high-speed operation up to 35 m / min line speed of the air above, with vigorously cutting engraving spindle speed can be more improved.
Specifications
| Machine type | 1530 |
| Working stroke | 1500*3000*200 |
| The structure of the machine | Steel structure body, surface profile |
| Spindle power | 5.5KW water cooled spindle |
| The maximum working speed | 15m/min |
| Working voltage | AC220V, 50HZ |
| Operating system | Weihong system |
| Working way | Stepper motor |
| Carving instruction | G code, HPGL, U00, MMG, PLT |
| Transmission mode | XY axis gear rack, Z axis ball screw drive |
| Available tool | φ3.175-φ12.7 |
The main application fields:

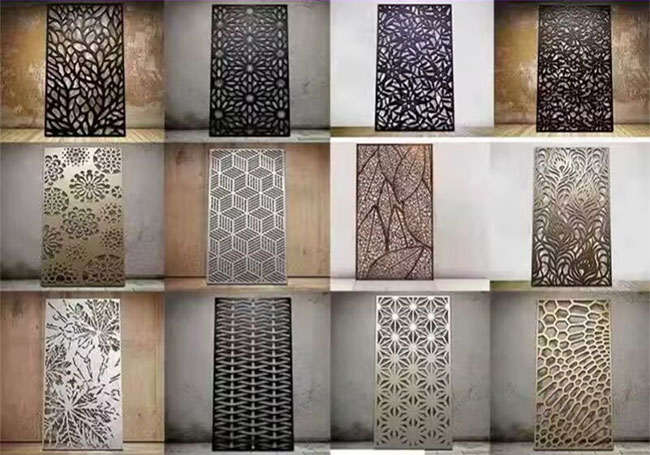

The woodworking industry: three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint free door, screen, craft window processing, shoe polisher, game cabinets and panels, mahjong table, computer aided machining table and panel furniture products.

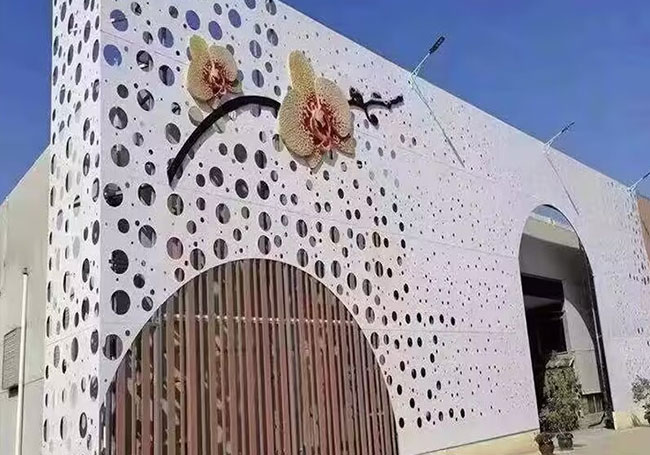

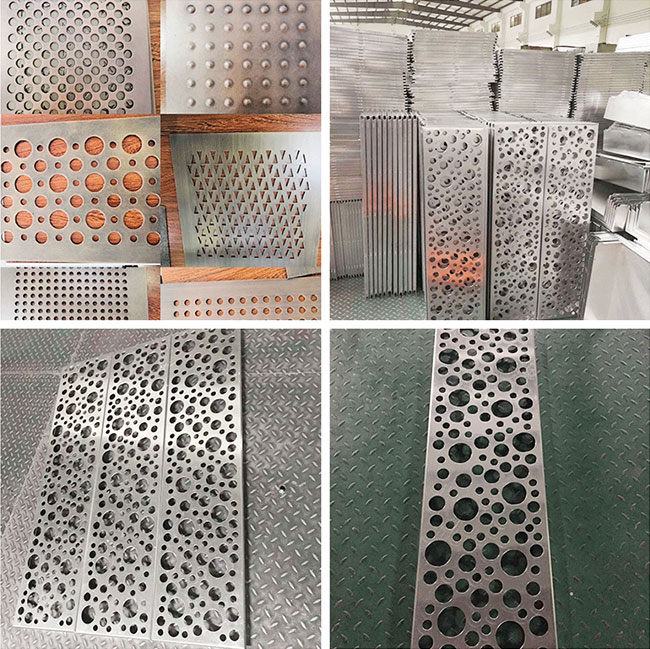

By making the advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of advertising and decorative products.
Mold industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic board, PVC pipe, wood and other non-metallic mold.
People in other industries: various large relief carving, shadow carving, widely used in handicraft industry.
