2.2KW High Precision 6090 CNC Mold Engraving Machine-เครื่องตัดซีเอ็นซี
Precio unitario
THB 219.351,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 219.351,00
Costo total
THB 219.351,00
Cantidad
/unidad
1

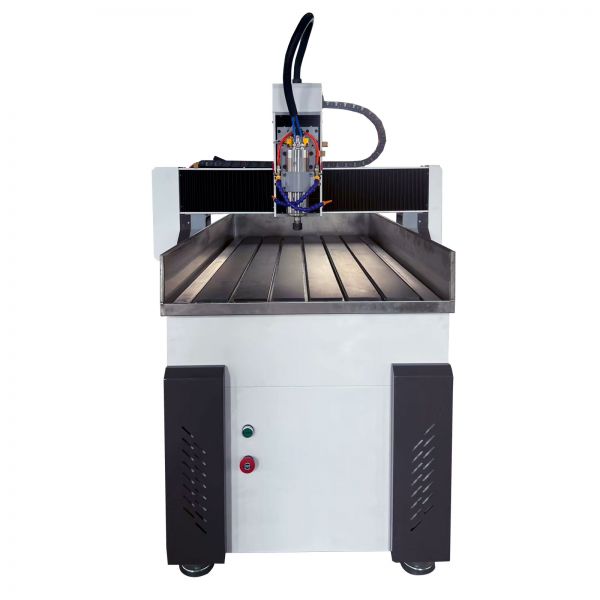

2.2KW High precision 6090 CNC Metal Engraving Machine
Features:
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. DSP control system with USB port,just need handle to operate the machine,easy and convenient.
3. The rotary is put on the table and the Z axis space is enlarge to give enough working area for Z axis.Rotary cnc router take extra jobs for removing but save width.
4. Memory function ensures the processing point when the blade is broken or having to postpone the process.
5. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily.
6.Positioning accuracy reaches 0.03mm.
Specifications:
| Model | 6090Z |
| Working size | 600*900 *180mm |
| Materials | Casr iron machine bed |
| Working table | Aircraft aluminium T slot |
| Moving type | Gantry moving |
| Transmission | Ball screw transmission for XYZ-axis |
| Driving mode | Stepper motor |
| Spindle motor | 2.2kw water cooling spindle |
| Collet type | ER 11/20 |
| Suitable tools diameter | 180mm |
| Voltage | AC 220V,50Hz,single phase |
| Spindle speed | 0-24000rpm/min |
| Empty traveling speed | 0-8000mm/min |
| Engraving speed | 0-6000mm/min |
| Machine accuracy | 0.05mm |
| Resetting accuracy | 0.05mm |
| Diagonal error | 0.5mm |
| Control system | DSP |
Details:
Applicable industry：
Jade or marble engraving, also for Sign board process, mould, bronzing ,badge, pattern mould, art carve, sign and label etc
Musical instrument industry,can engrave 3D surface of large scale musical instrument and the contour cutting
Application:
