2513 Digital UV Flatbed Printer With Epson 3200/Ricoh Gen6/Gen5 Printheads (Industrial model)
i3200U/4 Heads
Precio unitario
THB 999.600,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 999.600,00
Opciones
กรุณาเลือกประเภท กรุณาเลือกประเภท
Costo total
THB 999.600,00
Cantidad
/set
1
2513 Digital UV Flatbed Printer With Epson 3200/Ricoh Gen6/Gen5 Printheads (Industrial model)
Common Modes in the Advertising Industry.
Standard UV Printing Mode: White-Color-Varnish/Crystal Label.
Four-Head Advanced Mode: White-Color-Varnish-Varnish.
Ricoh G5/G6 Printhead Arrangement.
Specification:
| Print Head | 4H i3200U | 4H G5 | 4H G6 | |
| Printing Speed | 720x600dpi 4PASS | 16m²/h | 26m²/h | 29m²/h |
| 720x900dpi 6PASS | 12m²/h | 17m²/h | 21m²/h | |
| 720x1200dpi 8PASS | 10m²/h | 12m²/h | 15m²/h | |
| Print size | 2560x1360mm | |||
| Color | CMYK+Lc+Lm+White+Varnish | |||
| Print Thickness | 0.1-175mm(Ultra-high customizable) | |||

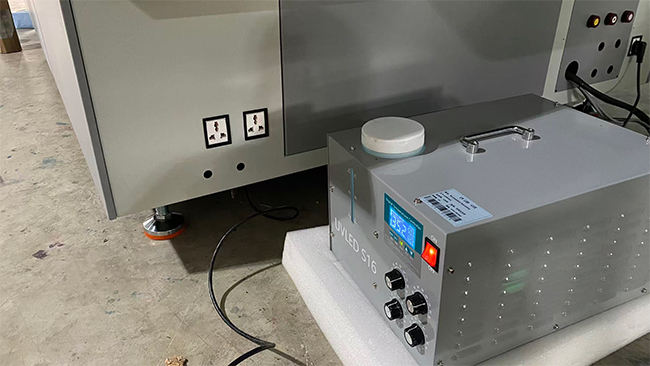

| Curing System | LED UV Lights | |||
| lmage Format | TIFF/JPG/EPS/PDF/BMP | |||
| Rip Software | PHOTOPRINT/Maintop/Riin Rip-honson | |||

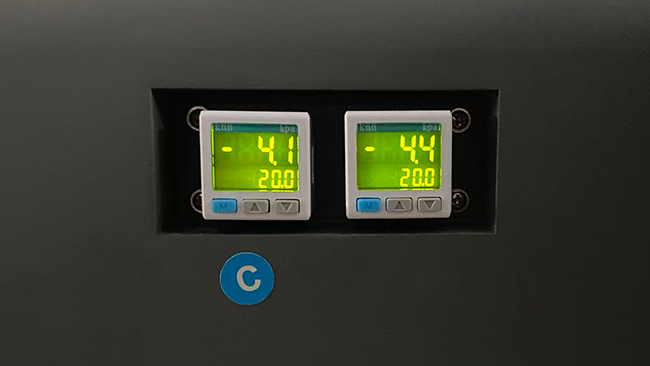

| Negative pressure | White and color separate negative pressure | |||
| Power Supply | AC220V 50HZ士10% | |||
| Temperature | 20-32°C | |||
| Humidity | 40-75% | |||
| Power | 3500/5500W | |||
| Appearance Size | 4470x2107x(1283-1383)(Trolley head adjustable height 175mm) | |||
| DataTransmission | TCP/lP network interface | |||
| Net Weight | 1000/1350kg | |||
| Wooden box size | 4621x2260x1620mm | |||

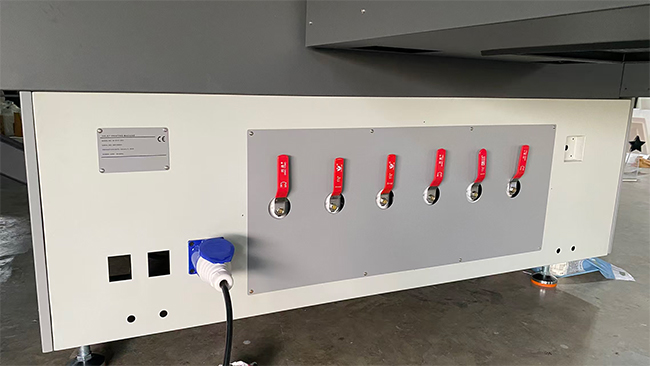

| Suction system | 6 partitions, two 750W brand fans | |||
| Y-axis | Double servo motor drive, with reducer | |||
| Lead screw | Imported brand double Y screw | |||
| Automatic heightmeasurement | The system drives the automatic height measurement function | |||

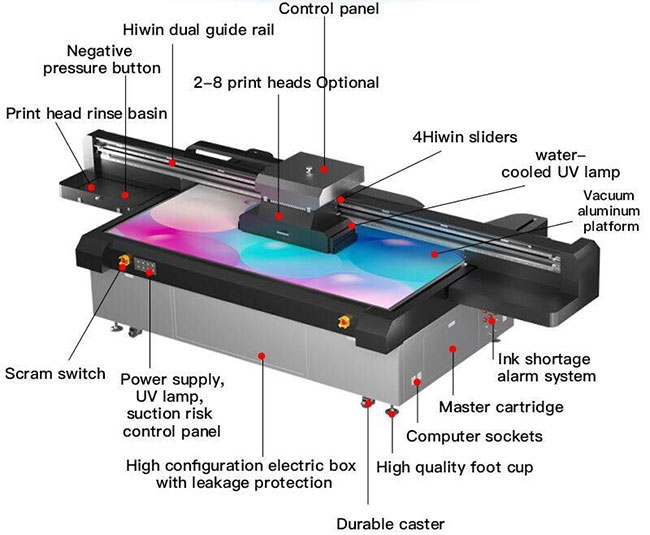

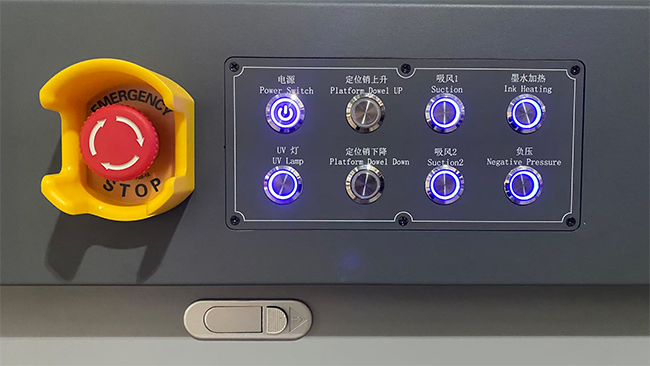

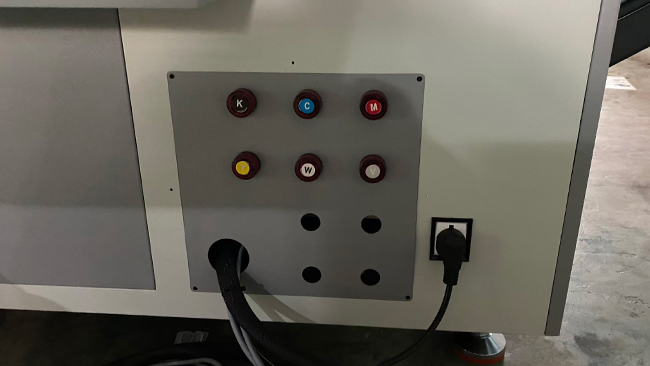

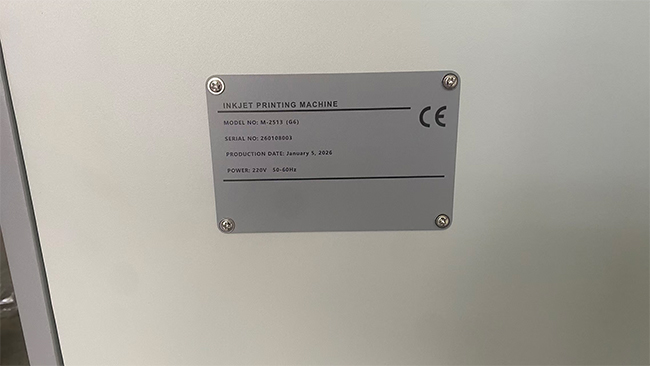

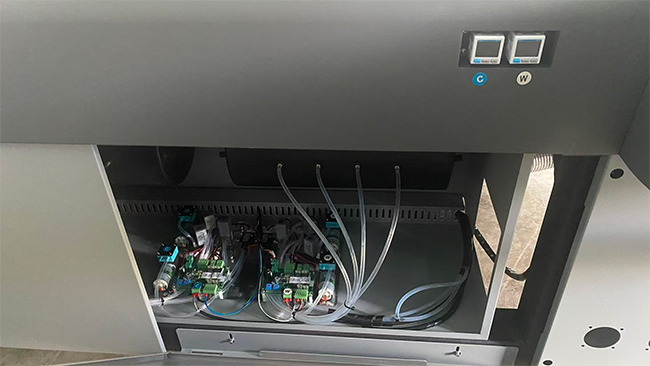

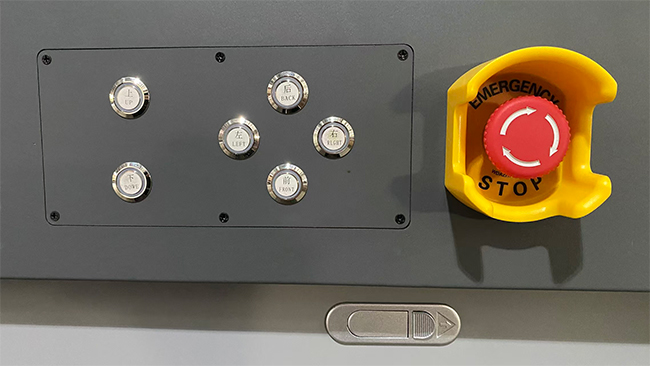

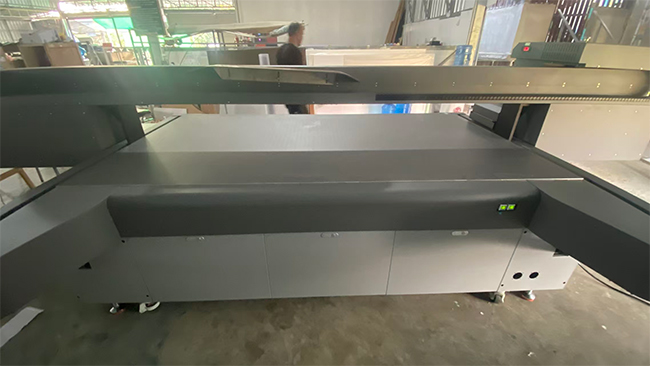

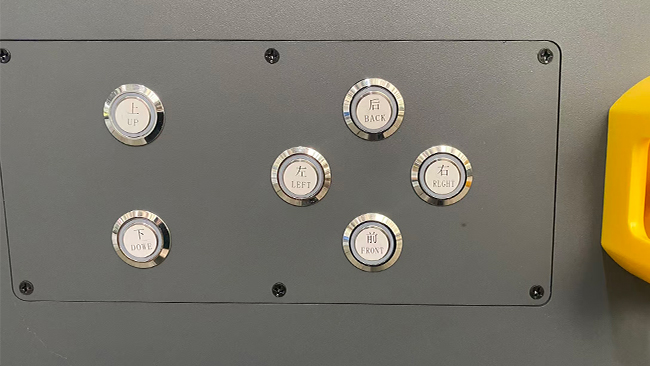

Details:
Application:

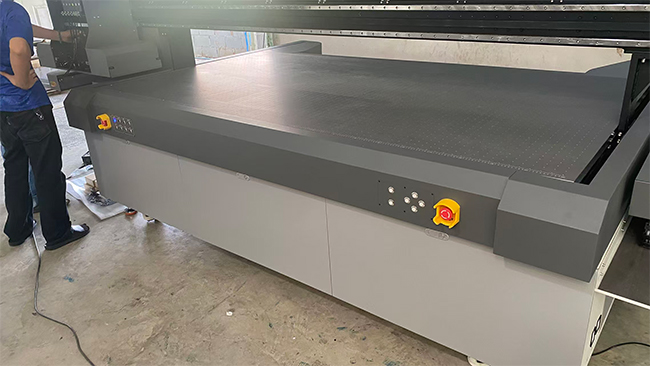

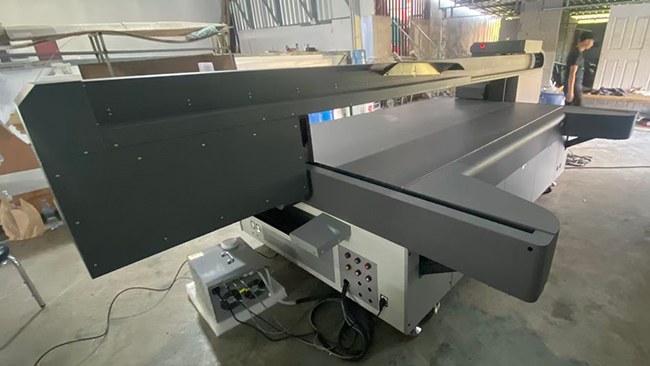

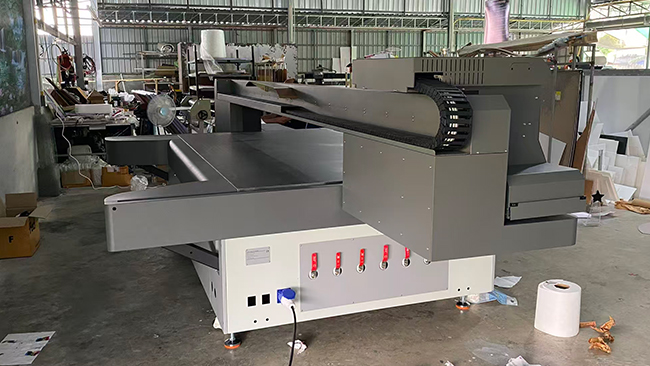

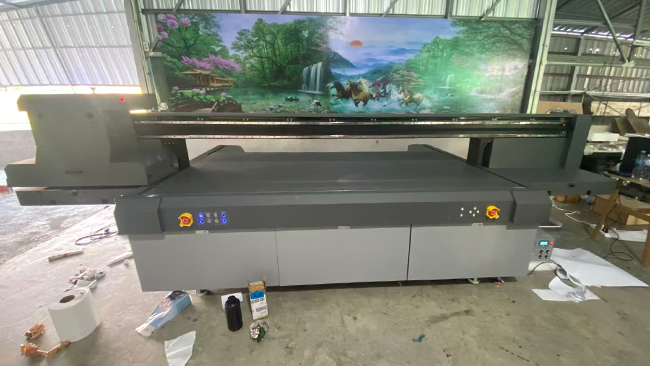

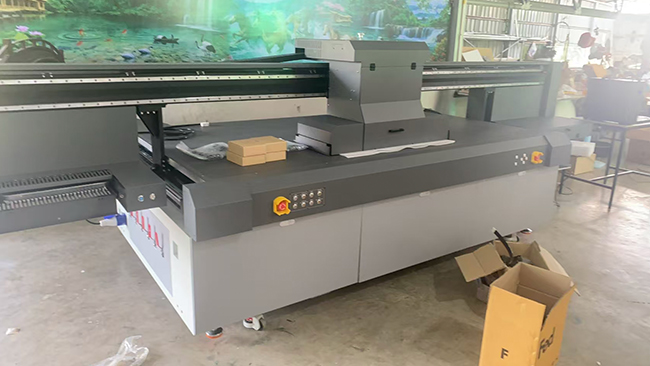

Customer Case:
