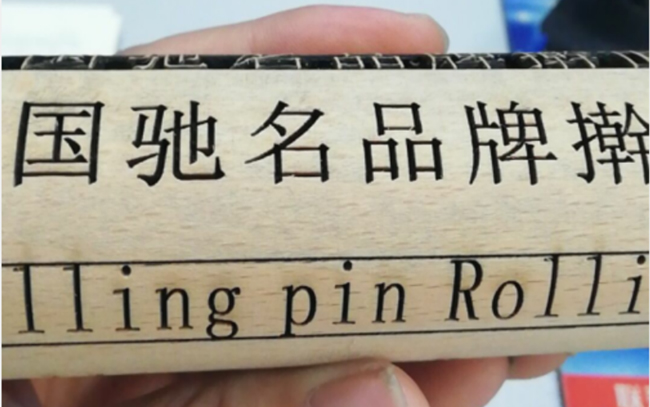

4060 60W/80W/100W CO2 Laser Engraver Machine for Rolling Pin
60W
Precio unitario
THB 79.963,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 79.963,00
Opciones
กรุณาเลือกประเภท กรุณาเลือกประเภท
Costo total
THB 79.963,00
Cantidad
/set
1
| Laser Power | 60W/80W/100W |
| Supply Voltage | 220V±10% ,/60Hz |
| Max width | 600mmx400mm |

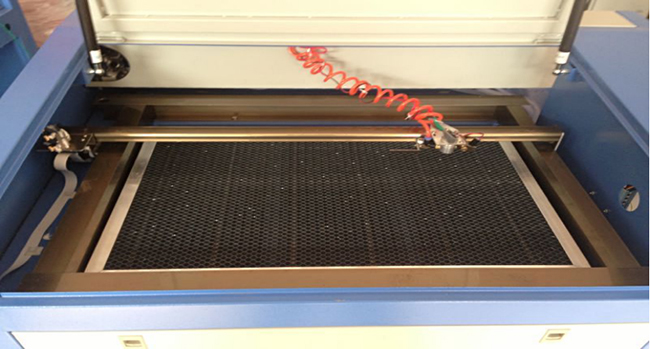

| Working table | Aluminum knife and honey comb |
| Up and down size | 250mm |
| Table control mode | Manual/Electric |
| Max engraving Speed | 500mm/s |
| Max cutting speed | 60mm/s |
| Locating Precision | <0.01mm |
| Min shaping character | Character 2x2mm ,Letter 1x1mm |
| Resolution | 0.0125mm |
| Cutting thickness | 0-15mm |
| Control Configuration | DSP |
| Data transfer Interface | USB |
| System Environment | WINDOWS XP/Win7/8 |
| Graphic file format | BMP,PLT,AI,CDR,DXF |
| 256 Color separation output | Support |
| 360 degree slope engraving | Support |
| Off line working | Support |
| Cooling Way | Water Cooling |
| Operating temperature | 5°C -35°C |
| Water protecting sensor and alarm | Yes |
| Net Weight | 80Kg |
| Machine Dimension | 57 x 74 x140cm |
| Gross weight | 103Kg |

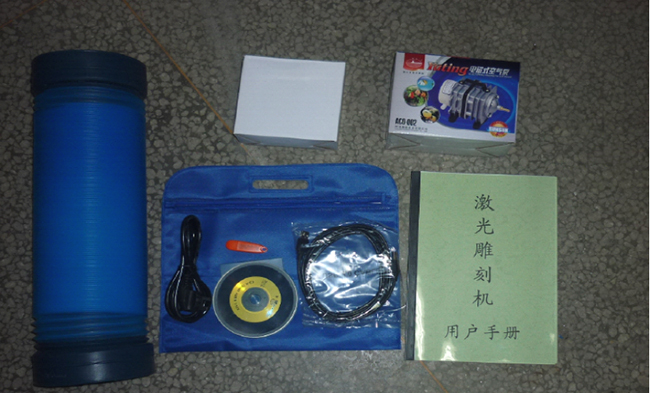

| Packing List | 150x87x77cm |
2.Connect the power cord, USB cable and the host is good.

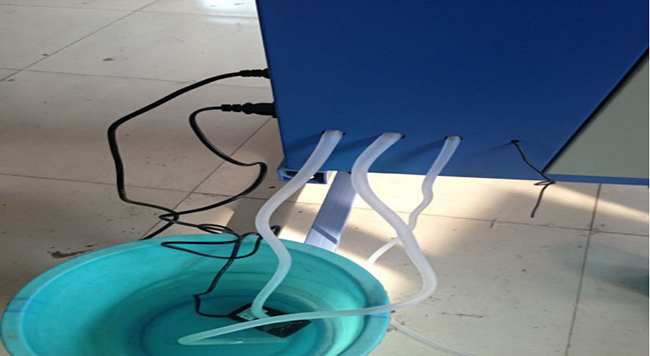

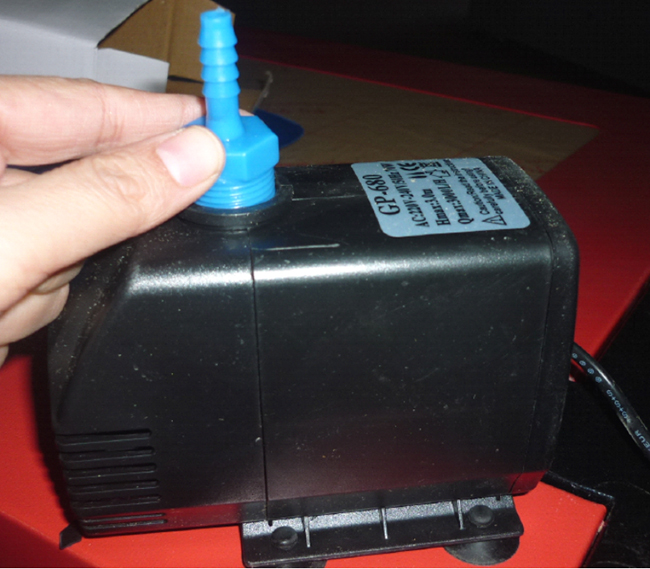

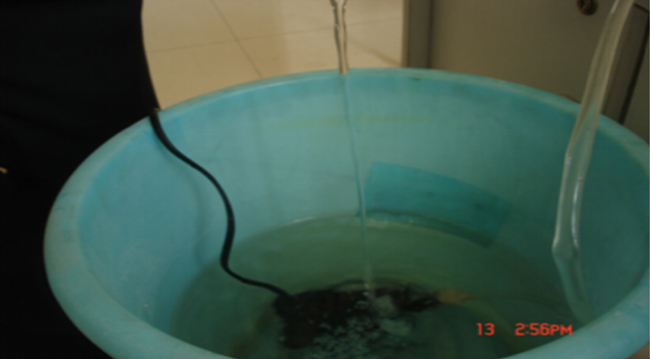

3.Connect water pump (machine with clear water and water).
4.Good connection after put the pump into the bucket, outlet pipe into the above the water, can see the water situation.

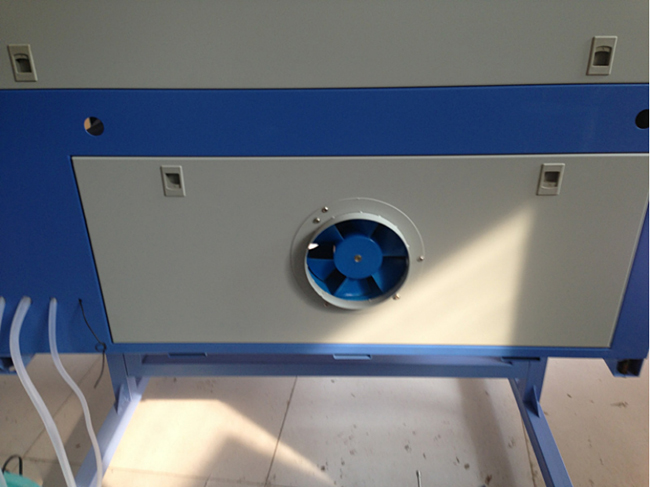

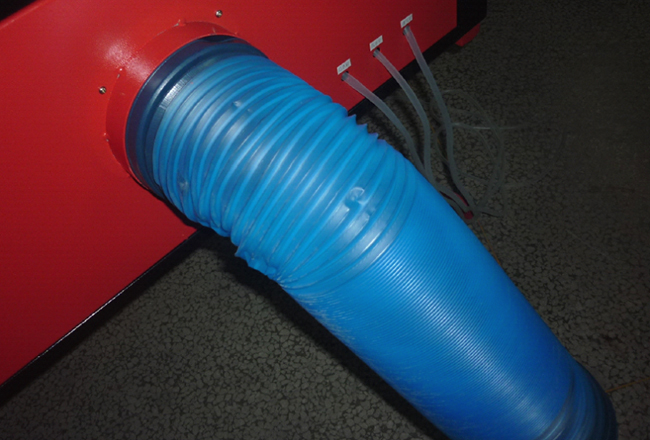

5.Tracheal card to the rear of the machine, and then fan above have crack, it is best to tape sealing.

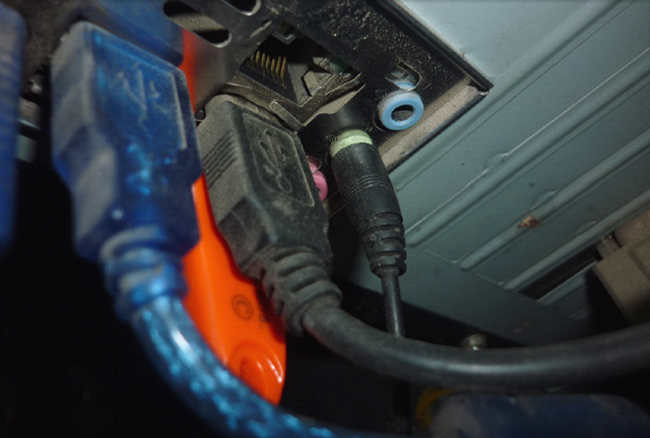

6.The machine cable and USB key (that is, with little U disk) into the host computer or laptop U mouth.

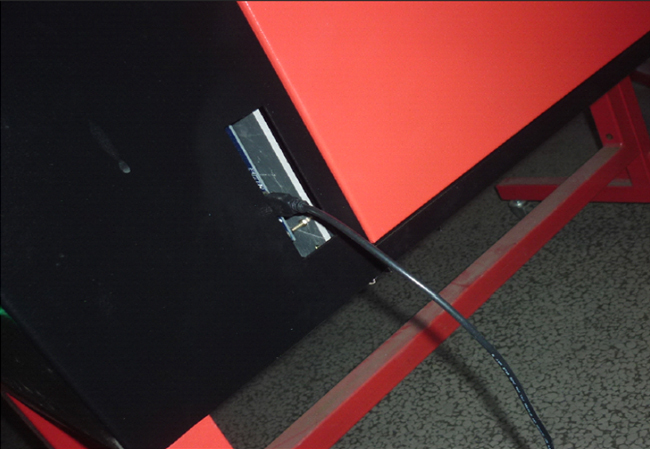

7.Connect the USB cable and the machine.

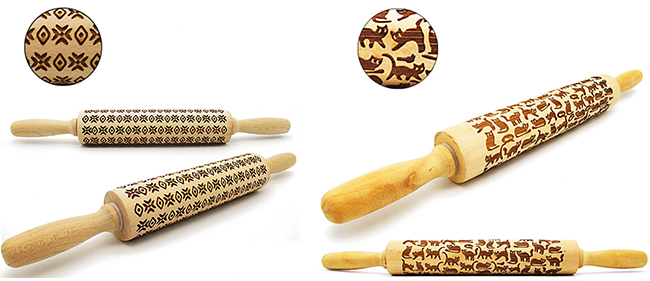

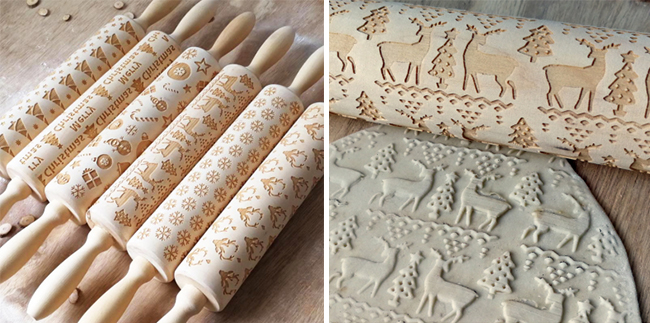

Applicable materials:Wood,MDF,Acrylic,Plastic,Plexiglass,Crystal,Rubber,Fabric,Paper and other non-metal materials.
