High Precision Carving CNC Engraver for Aluminum
1500 x 3000mm
Precio unitario
THB 738.749,00
/set
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 738.749,00
Opciones
กรุณาเลือกประเภท กรุณาเลือกประเภท
Costo total
THB 738.749,00
Cantidad
/set
1
High Precision Carving CNC Engraver for Aluminum
Specification:
| Model | 8013 | 1313 | 1530 |
| Machine Bed Material | Welded structure of integral steel frame | Welding of steel pipes and plates | |
| Working Size | 800x1300x160mm | 1300x1300x160mm | 1500x3000x160mm |
| Spindle Power | 7.5kw | ||
| Spindle Rotate Speed | 0-30000RPM | ||
| Guide Rail | Taiwan SMS, Y-axis four column | Taiwan stablty | |
| Transmission Method | Three axis screw drive | Taiwan Stable Double Screw Drive | |
| Servo Motor | Shanghai weihong bus absolute value servo motor | ||
| Operation System | Shanghai weihong NK300cx | ||
| Clamping Method | Vacuum adsorption, dual purpose pressing plate | ||
| lnput voltage | AC380V,50/60HZ,3PH | ||
| Operation mode | Dragon gate movement | ||

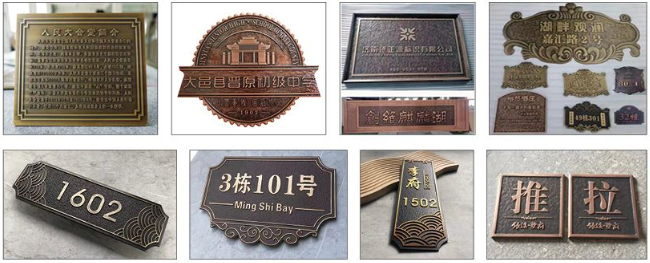

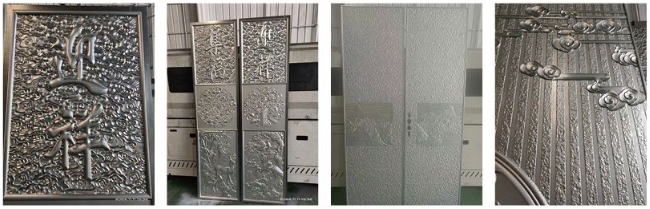

Application:
