High Precsion Screw ATC CNC Router
Precio unitario
THB 996.645,00
/unidad
Descuentos por volumen
Cantidad
Descuento
Precio por unidad
1
0%
THB 996.645,00
Costo total
THB 996.645,00
Cantidad
/unidad
1
High Precsion Screw ATC CNC Router
Specifications:
|
working area |
1300*2500*300mm |
|
XYZ Transmission |
Ball screw |
|

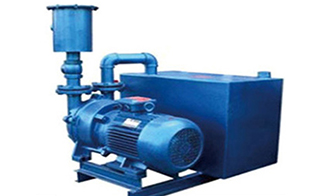

Table Surface |
Vacuum table |
|
Max.Traveling Speed |
60000mm/min |
|
Max.Working Speed |
25000mm/min |
|

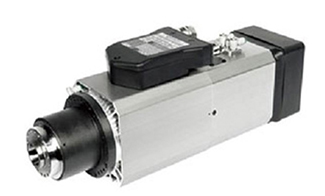

Spindle Power |
HSD Air-cooling 9KW |
|
Tool Storage Capacity |
12 |
|
Magazine Type |
Carousel Tool Magazine |
|

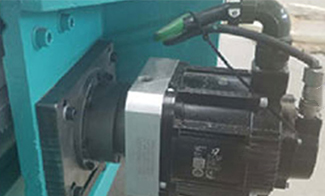

Drive&Motor |
YASKAWA servo XY 1.3KW /Z 850W |
|
Working Voltage |
AC380V/50Hz/3PH |
|
Operating System |
Syntec Control System |
1.Lathe bed designed scientifically through strict mechanical analysis, can guarantee the stability of machine effectively, traveling speed can up to 60m/min without shaking.

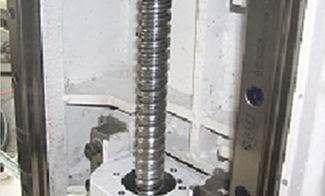

2.XYZ axis all by ball screw transmission,Y axis four guide railes, imported servo motors, ensure high standard of accuracy with high-speed operation.
3.Round ATC system with 8 tools, can meet all kinds of engraving, cutting and other design requirements. Numbers of tools can also be upgraded.
Samples:
